Ricky's staying connected

[Saustgen]

Need help getting ruckus staying connected after power outages. Have unplugged and plugged back in twice.

[Saustgen]

I wasn't logged in so I guess I could take a pic but here it is

[Imran_ruckus]

Hi @Saustgen

Thank you for the response and the information you shared.

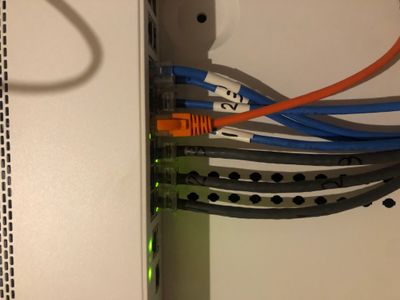

As I see from the picture you shared, seems like the ethernet cable which is coming from the Router or Modem/Router combo is plugged into the wrong port on the Switch panel. It must be plugged into any 1 in-12 ports as shown in the below screenshot. Please unplug the ethernet cable and plug it into the correct port and check the connectivity. If required reboot your ISP (Internet Service Provider) Router and RUCKUS ICX-7150-C12P Switch once.

Please refer to the short guide link below about how to connect the devices as reference:

Most common Setups for Lennar homes users:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/Most-common-Setups-for-Lenna...

Please check, confirm and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

[Saustgen]

I have moved the ether net cable and rebooted. Now the router is flashing red.

[Saustgen]

 

 

 

[Imran_ruckus]

Hi @Saustgen

Thank you for the response and the information you shared.

Router may take some time to reboot and come up.

Now we will check some configurations on the Switch, please follow the below steps to check the same.

Please follow the below steps and help us with the queries,

1. To check this issue, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Device...

2. Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

How to remotely access to 'ICX 7150-C12P' or 'access points' "Network devices":

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-IC...

If you can access the Command line should look like this:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

Please enter the below commands once you log in to CLI and share the output.

Note: Hit Enter to accept each command

enable

show version

show flash

Please share the output of the above commands or share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.
