Link status "connected with warning" message

[dcampen]

I have 2 ports on my ICX7150-C12 Switch that are showing link status "connected with warning" message, how can I find out more about the message and what that means?

[Jayavidhya]

Hi @dcampen

Greetings of the day,

Thanks for your detailed description,

Please share the screenshot of the message showing in your unleashed app. Also please share the image of the switch and the access points showing the LED status and the cable connections.

Here is where you can upload the image/photo :

you can also drag it to the chat.

Please let us know if you have any queries in this regard.

Best regards,

Jayavidhya

Lennar Home Community


[dcampen]

I get a permissions issue when trying to upload images

[dcampen]

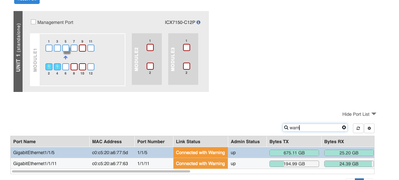

Here are the screenshot from the app on the switch

 

[Jayavidhya]

Hi @dcampen

Thanks for your response,

For detailed understanding of the issue please share the clear image of the switch and the access points showing the LED status by using the below link.

R510 LED lights

https://docs.commscope.com/bundle/unleashed-200.12-onlinehelp/page/GUID-19D4261B-D10B-4DE3-B63A-3498...

RUCKUS LED lights

https://docs.commscope.com/bundle/icx7150-installguide/page/GUID-973C8AE8-837A-41C7-9811-BAEF6ADEF3D...

Please let us know if you have any queries in this regard.

Best regards,

Jayavidhya

Lennar Home Community
