Apologies, as I see from the screenshot you shared, your RUCKUS Switch isn’t getting upgraded as per the process. You have used Switch IP Address in place of TFTP IP Address (Please refer to the below screenshot). Please use the TFTP IP Address in the command. (command- ‘copy tftp flash <tftp ip address> SPS08095gufi.bin primary').
It should look like as shown in the below screenshot.
Please follow the below steps as shown in the screenshot.
1. Browse and select the Upgrade folder containing .bin file. (192.168.0.2 is the TFTP IP address in the below example, please use your TFTP IP address in same place)
2. Click on ‘Show Dir’>>select 1st file>>hit copy
3. Open the CLI/Telnet and type the below command and copy the SPS08095gufi.bin file by right click on the mouse. (Ex: copy tftp flash <ip address> <right click> primary) Press Enter and now your tftp image will start copying.
copy tftp flash <tftp ip address> SPS08095gufi.bin primary
Please check and let me know if you have any queries in this regard.
Thank you again for your patience and understanding.
Thank you for the detailed information you shared.

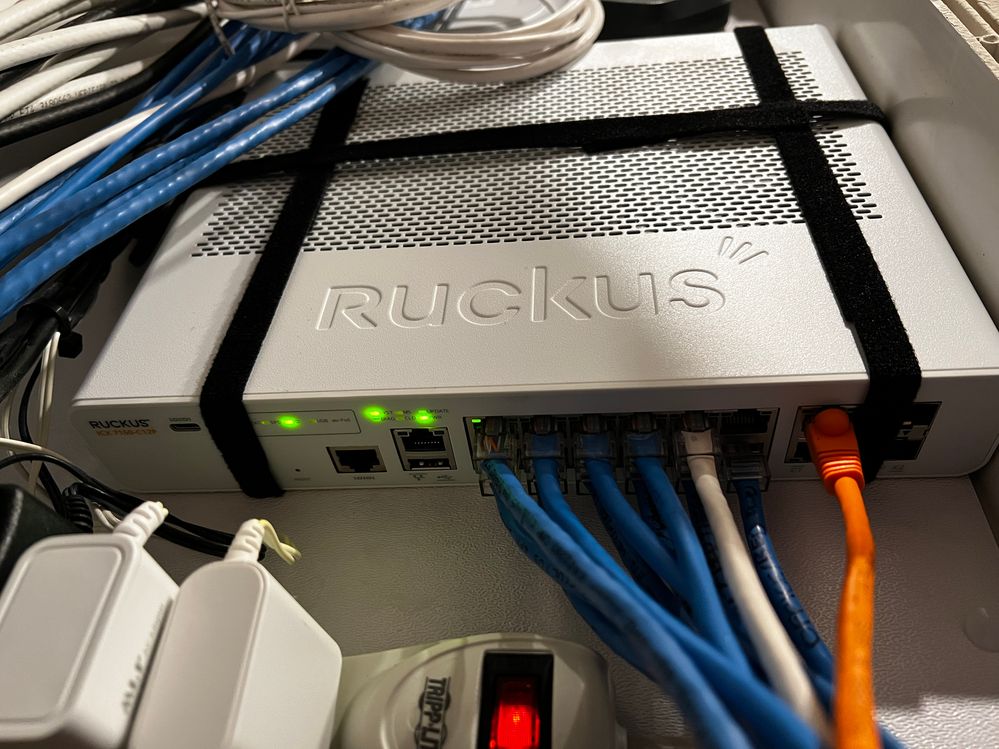

As I see from the picture you shared, seems like the ethernet cable which is coming from the ISP’s (Internet Service Provider’s) Router or Modem/Router combo is plugged into the wrong port on the Switch panel. It must be plugged into any 1 in-12 ports as shown in the below screenshot. Please unplug the ethernet cable and plug it into the correct port and try again. If required reboot (unplug and plug from the power outlet) the ISP Router and the RUCKUS ICX-7150-C12P Switch once.
Please refer to the short guide link below about how to connect the devices as reference:
