10-11-2023 04:03 PM
After doing a software recovery using the guided links and videos on youtube.
On my unleash app. Port switch still shows discovery... been 1hr.. what are the next steps???
System Light and Pwr is green. 3 of my AP R510 working but only on 2.4ghz
Solved! Go to Solution.
10-12-2023 04:31 PM - edited 10-12-2023 04:53 PM
Hi @jedy52
Thank you for the response and the update.
Apologies, as I see from the screenshot you shared, your RUCKUS Switch isn’t getting upgraded as per the process. You have used Switch IP Address in place of TFTP IP Address (Please refer to the below screenshot). Please use the TFTP IP Address in the command. (command- ‘copy tftp flash <tftp ip address> SPS08095gufi.bin primary').
It should look like as shown in the below screenshot.
Please follow the below steps as shown in the screenshot.
1. Browse and select the Upgrade folder containing .bin file. (192.168.0.2 is the TFTP IP address in the below example, please use your TFTP IP address in same place)
2. Click on ‘Show Dir’>>select 1st file>>hit copy
3. Open the CLI/Telnet and type the below command and copy the SPS08095gufi.bin file by right click on the mouse. (Ex: copy tftp flash <ip address> <right click> primary) Press Enter and now your tftp image will start copying.
copy tftp flash <tftp ip address> SPS08095gufi.bin primary
Please check and let me know if you have any queries in this regard.
Thank you again for your patience and understanding.
Best regards,
Imran Sanadi
RUCKUS Lennar Home Community.
10-12-2023 04:48 PM
on your previous instructions.. you mentioned only 1 file should be on the upgrade folder on the tftp. SPS08095gufi.bin you want me to leave my mnz10115.bin and SPS08090k.bin? and copy the mnz file?
10-12-2023 04:52 PM
Hi @jedy52
Apologies for the confusion.
Please ignore mnz10115.bin and only use SPS08095gufi.bin file.
Thank you again.
Best regards,
Imran Sanadi
RUCKUS Lennar Home Community.
10-12-2023 04:59 PM
im trying to do what your suggesting...but i guess not being techy is hard....

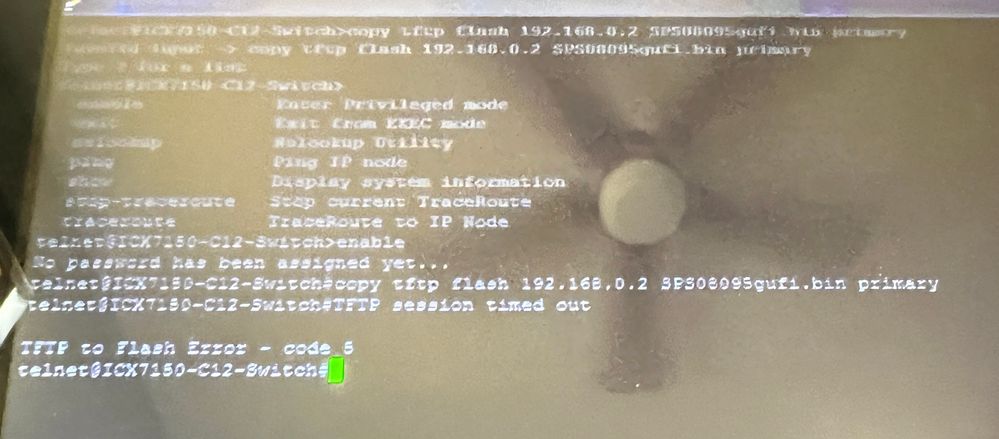

what am i doing wrong.... tftp 192.168.0.2 and putty is switch address telnet 192.168.1.xxx
10-12-2023 05:07 PM
Hi @jedy52
Thank you for the response and the update.
Could you please verify your TFTP Application's IP Address?
Thank you again for your patience.
Best regards,
Imran Sanadi
RUCKUS Lennar Home Community.
10-12-2023 05:10 PM
Isnt it 192.168.0.2? How do i verify. Im getting so confused. 🙂
