Here is the info you requested:
????telnet@ICX7150-C12 Switch>enable
enable
No password has been assigned yet...
telnet@ICX7150-C12 Switch#show version
show version
Copyright (c) 2017 Ruckus Wireless, Inc. All rights reserved.
UNIT 1: compiled on Nov 20 2018 at 00:09:55 labeled as SPS08080d
(25968884 bytes) from Secondary SPS08080d.bin
SW: Version 08.0.80dT211
Compressed Boot-Monitor Image size = 786944, Version:10.1.14T225 (mnz10114)
Compiled on Thu Nov 15 12:59:22 2018
HW: Stackable ICX7150-C12-POE
==========================================================================
UNIT 1: SL 1: ICX7150-C12-2X1G POE 12-port Management Module
Serial #:FEK3816Q1S1
Software Package: BASE_SOFT_PACKAGE
Current License: 2X1G
P-ASIC 0: type B160, rev 11 Chip BCM56160_B0
==========================================================================
UNIT 1: SL 2: ICX7150-2X1GC 2-port 2G Module
==========================================================================
UNIT 1: SL 3: ICX7150-2X10GF 2-port 20G Module
==========================================================================
1000 MHz ARM processor ARMv7 88 MHz bus
8192 KB boot flash memory
2048 MB code flash memory
1024 MB DRAM
--More--, next page: Space, next line: Return key, quit: Control-c
telnet@ICX7150-C12 Switch#show flash
show flash
Stack unit 1:
NAND Type: Micron NAND 2GiB (x 1)
Compressed Pri Code size = 25968884, Version:08.0.80dT211 (SPS08080d.bin)
Compressed Sec Code size = 25968884, Version:08.0.80dT211 (SPS08080d.bin)
Compressed Boot-Monitor Image size = 786944, Version:10.1.14T225
Code Flash Free Space = 1248612352
telnet@ICX7150-C12 Switch#show inline power
show inline power
Power Capacity: Total is 124000 mWatts. Current Free is 62400 mWatts.
Power Allocations: Requests Honored 13 times
Port Admin Oper ---Power(mWatts)--- PD Type PD Class Pri Fault/
State State Consumed Allocated Error
--------------------------------------------------------------------------
1/1/1 On On 3300 15400 802.3af Class 3 3 n/a
1/1/2 On On 3500 15400 802.3af Class 3 3 n/a
1/1/3 On Non-PD 0 0 n/a n/a 3 n/a
1/1/4 On On 3500 15400 802.3af Class 3 3 n/a
1/1/5 On Off 0 0 n/a n/a 3 n/a
1/1/6 On On 3800 15400 802.3af n/a 3 n/a
1/1/7 On Non-PD 0 0 n/a n/a 3 n/a
1/1/8 On Non-PD 0 0 n/a n/a 3 n/a
1/1/9 On Off 0 0 n/a n/a 3 n/a
1/1/10 On Non-PD 0 0 n/a n/a 3 n/a
1/1/11 On Off 0 0 n/a n/a 3 n/a
1/1/12 On Non-PD 0 0 n/a n/a 3 n/a
--------------------------------------------------------------------------
Total 14100 61600
telnet@ICX7150-C12 Switch#show inline power detail
show inline power detail
Power Supply Data On unit 1:
++++++++++++++++++
Power Supply Data:
++++++++++++++++++
Power Supply #1:
Max Curr: 2.3 Amps
Voltage: 54.0 Volts
Capacity: 124 Watts
PoePower: 124 Watts
POE Details Info. On Unit 1 :
General PoE Data:
+++++++++++++++++
telnet@ICX7150-C12 Switch#show interface brief
show interface brief
Port Link State Dupl Speed Trunk Tag Pvid Pri MAC Name
1/1/1 Up Forward Full 1G None No 1 0 d4c1.9e98.a35e
1/1/2 Up Forward Full 1G None No 1 0 d4c1.9e98.a35f
1/1/3 Up Forward Full 1G None No 1 0 d4c1.9e98.a360
1/1/4 Up Forward Full 1G None No 1 0 d4c1.9e98.a361
1/1/5 Down None None None None No 1 0 d4c1.9e98.a362
1/1/6 Down None None None None No 1 0 d4c1.9e98.a363
1/1/7 Up Forward Half 10M None No 1 0 d4c1.9e98.a364
1/1/8 Up Forward Full 100M None No 1 0 d4c1.9e98.a365
1/1/9 Down None None None None No 1 0 d4c1.9e98.a366
1/1/10 Up Forward Full 100M None No 1 0 d4c1.9e98.a367
1/1/11 Down None None None None No 1 0 d4c1.9e98.a368
1/1/12 Up Forward Full 100M None No 1 0 d4c1.9e98.a369
1/2/1 Down None None None None No 1 0 d4c1.9e98.a36b
1/2/2 Down None None None None No 1 0 d4c1.9e98.a36c
1/3/1 Down None None None None No 1 0 d4c1.9e98.a36d
1/3/2 Down None None None None No 1 0 d4c1.9e98.a36e
mgmt1 Down None None None None No None 0 d4c1.9e98.a35e
Hi @JC
Greetings!!!
Thank you for your response and the update.

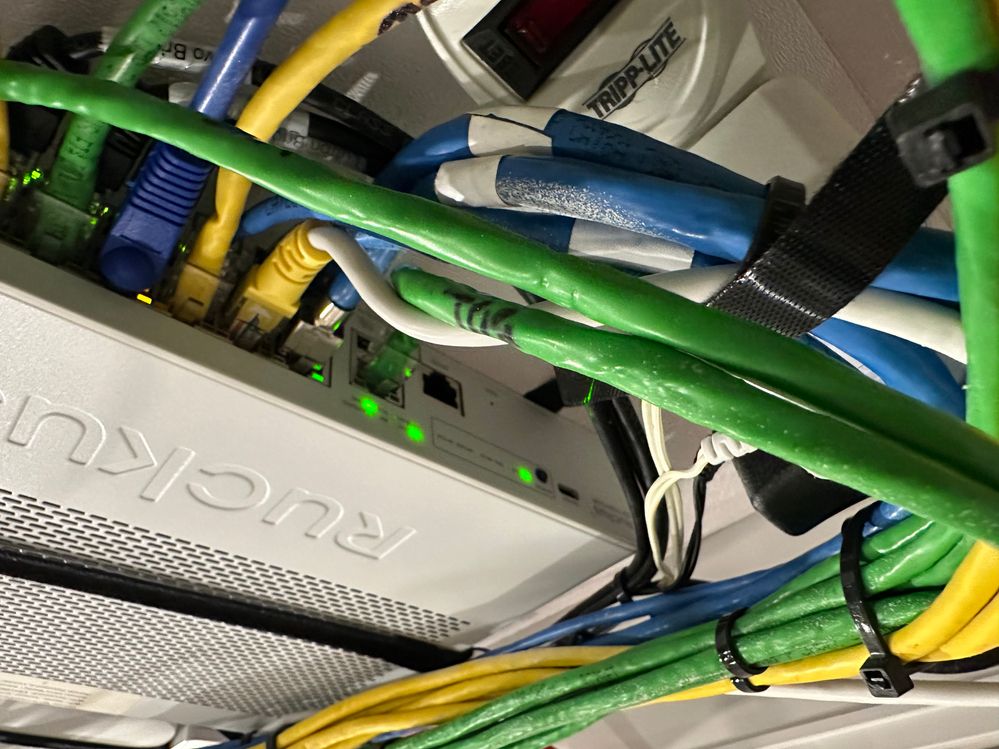

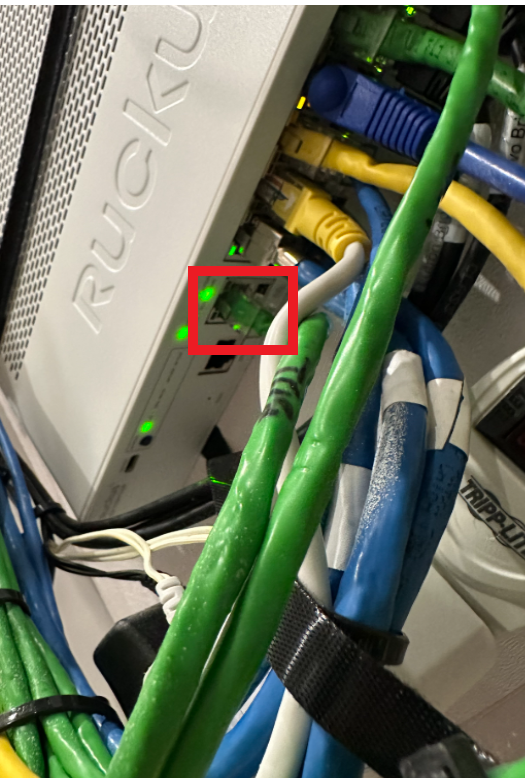

Based on the picture you shared, it appears that the cable from your Internet Service Provider’s (ISP) router or Access Point is connected to the incorrect port on the RUCKUS ICX-7150-C12P Switch. The cable should be connected to one of the 1-12 ports on the switch (please refer to the screenshots below). Kindly unplug the cable and reconnect it to the appropriate port. Afterward, please reboot the ISP router by unplugging and plugging it back into the power outlet. Once done, check your internet connection.
Please let me know how it goes, and feel free to reach out if further assistance is needed.
Thank you again for your patience and understanding.
Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

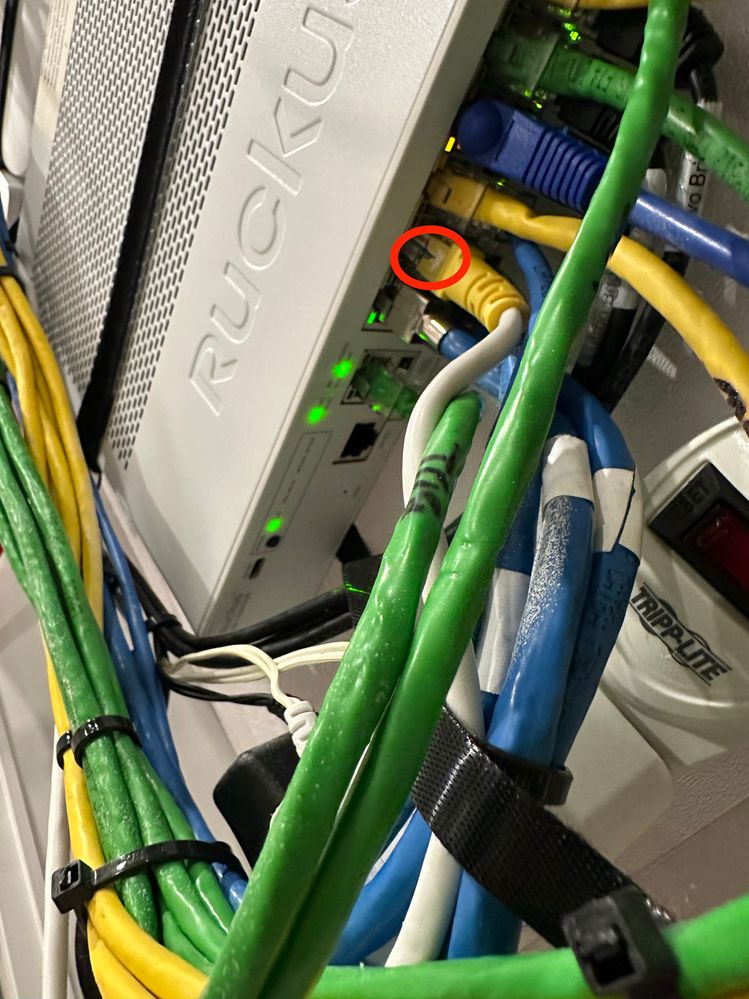

Hello, the cable from the ISP is connected to 1 of the 12 ports. I've placed a red circle around the cable in the pic. This problem spontaneously started in June without anything been changed since we purchased the house around 2020. I think I need to replace the Ruckus Switch or replace the whole thing with a new system. Is my Switch under warranty? Please help me resolve this since this ongoing issue has significantly affected work and life. Thank you very much.
