Guidelines on creating a Wireless LAN (WLAN) / Service Set Identifier (SSID) with RUCKUS Unleashed

[Imran_ruckus]

Description:

This RUCKUS Lennar Knowledge Base self-help article is intended to guide Lennar Home RUCKUS device users through the process of setting up a new Wireless LAN (WLAN)/Service Set Identifier (SSID) that operates on 2.4GHz, 5GHz, or both radio channels through RUCKUS Unleashed Access Points.

Issue or Question:

When may we need to create a new Wi-Fi Network from the RUCKUS Unleashed system?

By creating separate networks, you can better manage wireless resources, reduce interference, and improve overall network performance.

• New Deployment: When setting up a new RUCKUS Unleashed system, you'll need to create a Wi-Fi network to provide wireless connectivity to users and devices.
• To Avoid Wireless Interference: If there is potential interference between the 2.4 GHz and 5 GHz radios, creating separate WLANs/SSIDs for each band can help mitigate this issue. This ensures that devices connect to the appropriate band, reducing congestion and optimizing performance.
• To Segregate Traffic: You may create a new WLAN/SSID to separate different types of network traffic, such as guest networks, corporate networks, or IoT devices. This allows for more granular control over network security, bandwidth allocation, and performance.
• To Support Specific Use Cases: If there are specific requirements for certain devices or applications, such as a network dedicated to high-bandwidth tasks (e.g., video streaming or gaming), you may want to create a new network to prioritize those needs.
• Expansion: If you're expanding your network to cover new areas or adding more access points, creating additional Wi-Fi networks can help manage the increased load and ensure seamless connectivity.

Customer Environment

• Product(s): RUCKUS Unleashed Access Points.
• Software / Firmware Version: Applicable to all versions
• Other Conditions: Not applicable

Step-by-Step Guide to Creating a New Wi-Fi SSID in RUCKUS Unleashed:

1. Log in to the RUCKUS Unleashed Dashboard:

• Open a web browser and enter the IP address of your RUCKUS Unleashed Master Access Point (AP) or access https://unleashed.ruckuswireless.com/ link. If the link is not working and the Master AP IP address is unknown please refer to the article on How to find the IP Address of the RUCKUS Devices (Switch and APs) using IP Scanner free applications
• Log in with your login admin credentials.

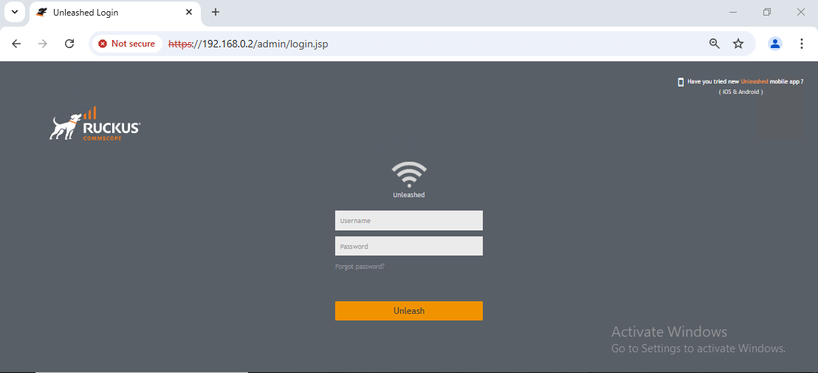

Figure 1: RUCKUS Unleashed Web Dashboard

2. Navigate to the Wi-Fi Networks Section:

• Once logged in, go to the “Wi-Fi Networks” tab located on the left-hand side of the dashboard.

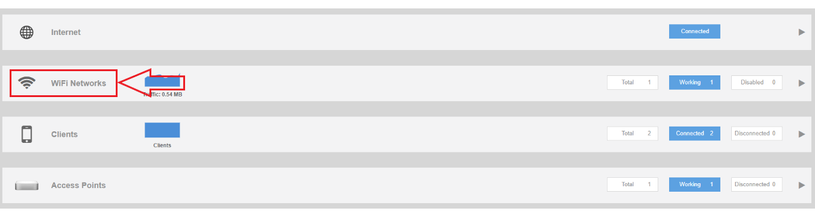

Figure 2: WIFI Networks Menu

3. Add a New Wi-Fi Network:

• Click on the “Create” button to start the process of adding a new Wi-Fi Network/SSID.

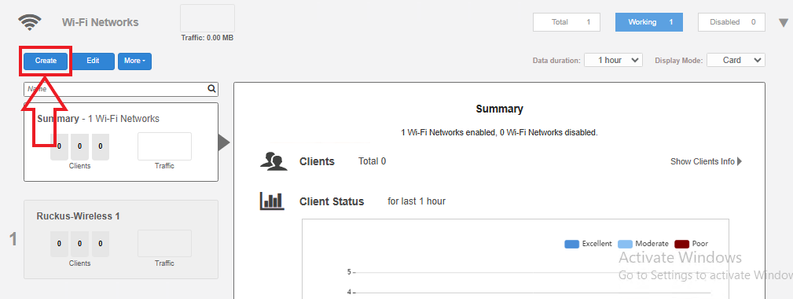

Figure 3: New Wi-Fi Create button

4. Configure Basic Settings:

• Network Name (SSID): Enter the desired name for your new Wi-Fi network.
• Description: Optionally, add a description for the network.

5. Security Settings:

• Encryption Method: Choose the type of encryption (e.g., WPA2, WPA3). Recommended is WPA2.
• Passphrase: Enter a strong password for your Wi-Fi network.

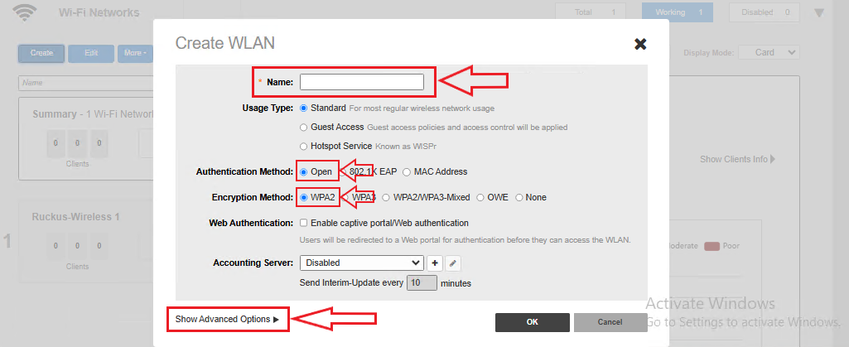

Figure 4: Basic Configurations

6. Advanced Settings (Optional):

• SSID Broadcast: Enable or disable SSID broadcast.
• Client Isolation: Enable this if you want to prevent clients from communicating with each other.
• VLAN ID: If you are using VLANs, enter the appropriate VLAN ID.

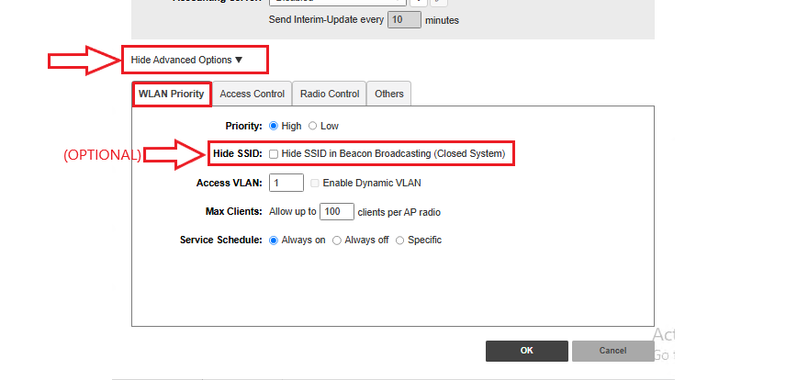

Figure 5: Optional settings

7. Access Control (Optional):

• MAC Filtering: Optionally, enable MAC filtering to allow or deny specific devices.

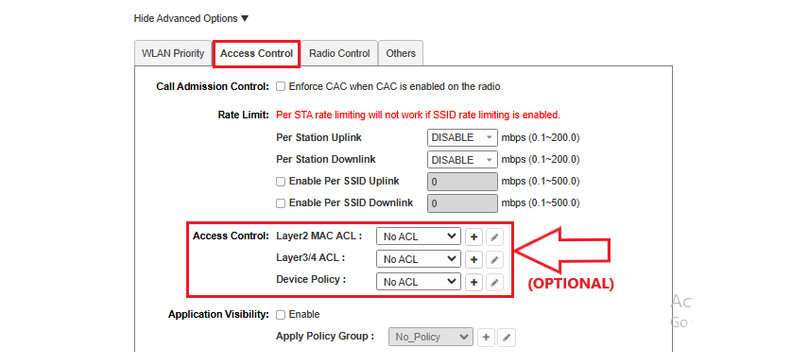

 Figure 6: MAC Filtering (Optional)

8. Quality of Service (QoS):

• Configure QoS settings if you need to prioritize certain types of traffic.

9. Radio Control: Choose the appropriate radio type for the WLAN to operate on, based on the desired frequency band (2.4 GHz or 5 GHz). This allows you to optimize performance by selecting the radio that best suits the needs of your network and devices.

• 2.4 GHz Radio: Ideal for broader coverage but may experience more interference due to congestion from other devices.
• 5 GHz Radio: Provides faster speeds and less interference, but with a shorter range compared to 2.4 GHz.

Select the radio type that aligns with your network requirements to ensure optimal performance and reduce interference.

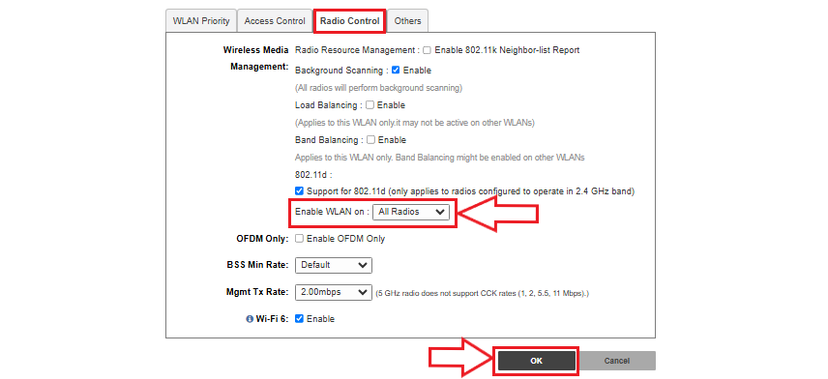

Figure 7: WLAN Radio select option (2.4 & 5 GHz)

10. Save and Apply:

• After configuring all the settings, click on the “Save” button to create the new SSID.
• The new SSID will now be listed under the Wi-Fi Networks section.

11. Verify the New SSID:

• Ensure that the new SSID is broadcasting by checking the list of Wi-Fi available networks on your device.

12. Video Demonstration:

• Additionally, please refer to the following VIDEO LINK for an explanation of creating a Wireless LAN (WLAN)/Service Set Identifier (SSID) with the RUCKUS Unleashed Web System.

Additional Tips:

• Firmware Updates: Ensure your RUCKUS Unleashed system is running the latest firmware for optimal per...
• Documentation: Refer to the official RUCKUS Unleashed documentation for more detailed instructions a...².
