Description:
This article walks you on adding the RUCKUS ICX-7150-C12P Switch in the RUCKUS Access Points management Unleashed system. It’s designed for homeowners who has RUCKUS ICX-7150-C12P Switches and RUCKUS Access Points.
Environment:
- Product: RUCKUS Unleashed Access Points
- Switch Model (if applicable): RUCKUS ICX Switches
- Firmware Version: RUCKUS ICX Switches version 08.0.90 or later
- Tools Needed: A computer/laptop.
Prerequisites:
1. The unleashed network must already be set up and accessible.
2. The Switch should be connected to the same local network (LAN) as the Unleashed Master AP.
3. Switch must have IP connectivity (i.e., pingable) from the APs.
4. The switch should be on a supported firmware version. (For ICX: e.g., UFI 08.0.90+ is a must for Unleashed integration).
5. Admin credentials for the switch (default: super / sp-admin) and Unleashed.
Steps to Add a Switch to RUCKUS Unleashed via Web Browser:
Step 1: Access the Unleashed Web UI
1. Open a browser (Chrome/Firefox/Edge).
2. Enter the IP address of the Unleashed Master Access Point or navigate to https://unleashed.ruckuswireless.com. (Refer to the article on how to locate the IP address if Master AP IP Address is unknown)
3. Log in using your RUCKUS Unleashed System admin credentials. (Figure 1)

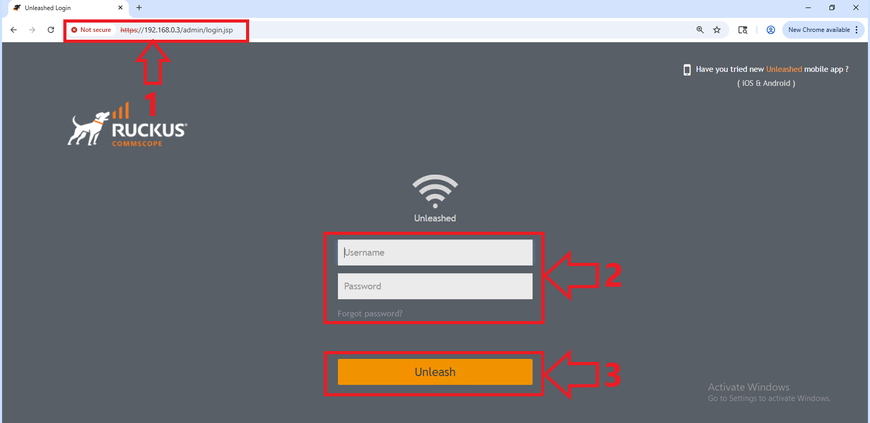

Figure 1: RUCKUS Unleashed Web UI Login
Step 2: Turn on the Automatic Switch Approval
1. From the Unleashed Dashboard, click on Admin & Services. (Figure 2)
2. Navigate to: Admin & Services > System > System info
3. Ensure that the 'Switch Approval' option is selected and then click 'Apply' to save the changes.

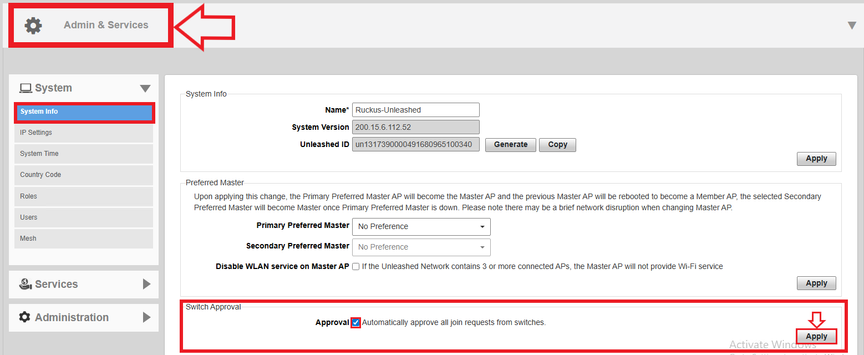

Figure 2: Automatic Switch Approval
Step 3: Add a New Switch
1. Click the “+ Add” button on the Switch Management page. (Figure 3)
2. A pop-up will appear asking for switch details.

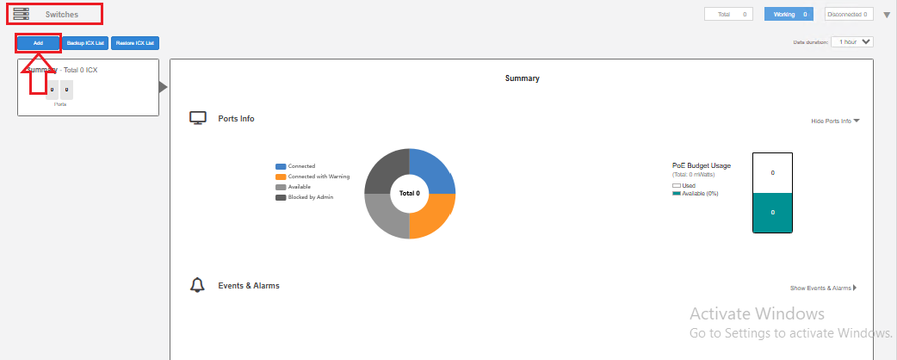

Figure 3: Adding a New Switch
Step 4: Enter Switch Information
Fill in the required fields: (Figure 4)
- Switch IP Address: IP address of the switch you want to add.
- Username: Admin username for the switch (default: super).
- Password: Admin password for the switch (default: sp-admin).
- Model: Will be auto-detected after successful login.

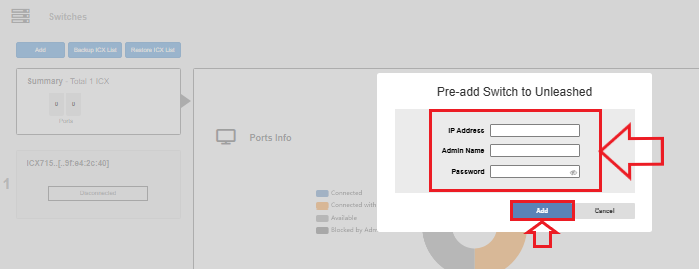

Figure 4: Adding the Switch IP Address and its login Credentials
Make sure the Switch IP is reachable from the Unleashed AP. If unreachable, the connection will fail.
Step 5: Apply and Wait
- Click “OK” or “Add” to begin the process with the ‘Connecting’ message. (Figure 5)
- Unleashed will try to connect and register the switch.
- It might take 1–5 minutes, depending on the network.

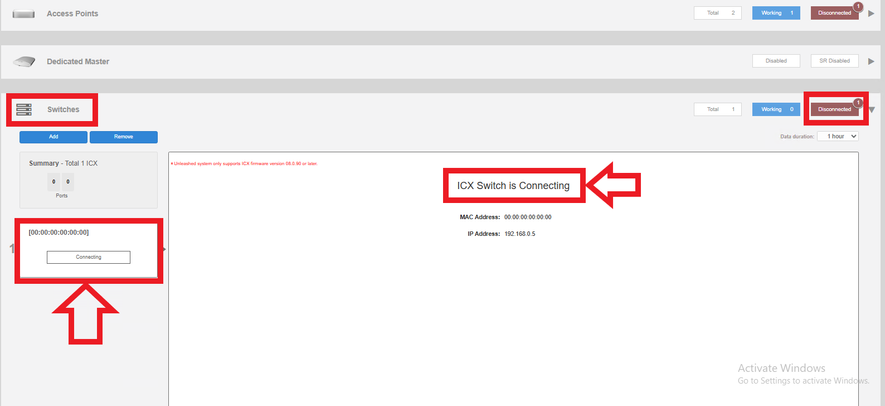

Figure 5: Switch displayed in the 'Connecting' state
Step 6: Verify Switch Addition
Once added, the switch should appear in the Switch Management list: (Figure 6)
- Status: Should show as Working or Connected.
- You’ll see details like:
- IP Address
- Model
- Firmware
- Number of Connected Devices
- Port Info Etc.,

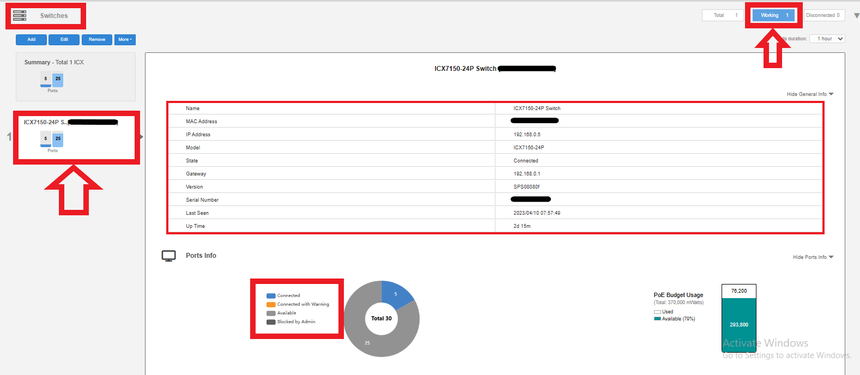

Figure 6: Switch displayed in the Connected/Working state
Additional Tips:
- If the switch shows as Disconnected, check:
- IP connectivity between the switch and the Master AP.
- Correct login credentials.
- Switch firmware compatibility. (For ICX: e.g., UFI 08.0.90+ is a must for Unleashed integration)
- No firewall blocking SSH (TCP port 22). (Refer to the article for instructions on how to disable the firewall on a Windows system)
