Stack ICX 7250 Firmware Upgrade

[irakli_gvishian]

Hello,

We have 2 Ruckus ICX 7250, which are stacked. Version of Firmware is SPR08030h. We would Like to do upgrade up to SPR08090mc (Non-UFI). I'm interesting about upgrade procedure and have some of questions:

1 - Do I need to load new Firmware to both switches? (Right now as I see there is no option to load firmware to particularly device).

2 - As I know, firstly I need to do upgrade up to 08080f, is it correct?

3 - I have a lot etherchannels (Lags, both Dynamics and Statics). In existing version of Firmware they are done in one way and in new version in a different way. Will it automatically re-change from old configure way to new or I need to reconfigure etherchannels?

4 - I also have a lot "Dual-Mode" configured ports. Will it automatically re-change from old configure way to new (Untagged + Tagged)?

I'm waiting your helps. Thanks!

[BenBeck]

Hey @irakli_gvishian

There is no such thing as 8090mc non-ufi. You will need to use the UFI image. Regarding your questions:

1) No special process for stacks. The process is the same as a single unit and active unit will push the firmware to all member units. It will take some time, but you can watch the flash in 'show flash' command to confirm it was pushed to both unit.

2) Correct. Be sure to 'wr mem' while running 8080f. This is to ensure syntax changes are saved in new startup config

3) Syntax changes will be handled automatically, but be sure to wr mem on 8080f as mentioned in point 2 above.

[Chandini]

Just adding a support link below for reference to check on upgrade on any version for 7250 series of switch . Thanks

https://support.ruckuswireless.com/products/105-ruckus-icx-7250-campus-switches#sort=relevancy&f:@so...

Select documentation in above link

Search for Software Upgrade Guide

This will have answers to most of the queries that you are looking for. Also to access the above link you might need credentials to the support portal.

[irakli_gvishian]

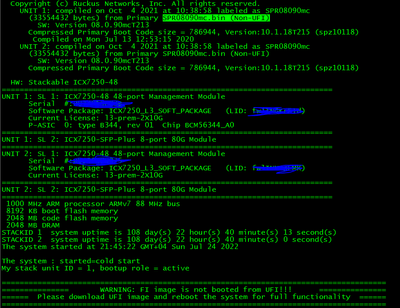

@BenBeck Thanks for your response. Regarding Non-UFI, I have on another location also 2 Ruckus ICX 7250, they are also stacked and firmware on them is SPR08090mc.bin (Non-UFI). There is screenshot of CLI:

Also there screenshot of downloaded files, you can find UFI and Non-UFI firmware's:

Or I have understood incorrectly?

[y2]

Yes, you can go directly from 08030 to 08090mc non-ufi by flashing both bootrom & images.
