Good morning everbody,

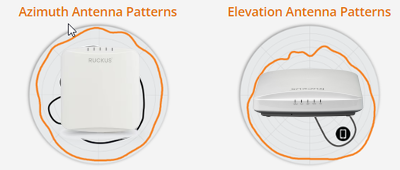

I have a little doubt about the antenna pattern diagrams in the data sheet. I know the APs all have a donut shaped antenna pattern and I have understood the difference between elevation and azimuth.

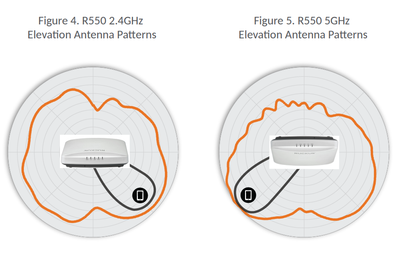

My question is whether the elevation antenna pattern diagram refers to an AP "mounted to a ceiling" or lying on the table. I strongly believe that the latter is the case (as in my photoshopped image for the 2.4GHz pattern) and NOT as in the 5GHz pattern.
kind regards
