R510 Unleashed - disable 802.11b

[daniel_hainich]

Hi Guys,

iam running a mesh with 3 R510 AP with Unleashed Firmware 200.11.10.5.195.

There should be an AP-Group Option for configuring 11n only Mode.

But there is no such Option. This one is missing.

What did i wrong? Why there is no Option as described in Online help?

https://docs.commscope.com/bundle/unleashed-200.11-onlinehelp/page/GUID-6DA67030-206D-4E86-8202-038C...

Thanks,

Daniel

[daniel_hainich]

i changed the settings on master-AP. this changes should be synced to the other ap within the mesh?

[secured2k]

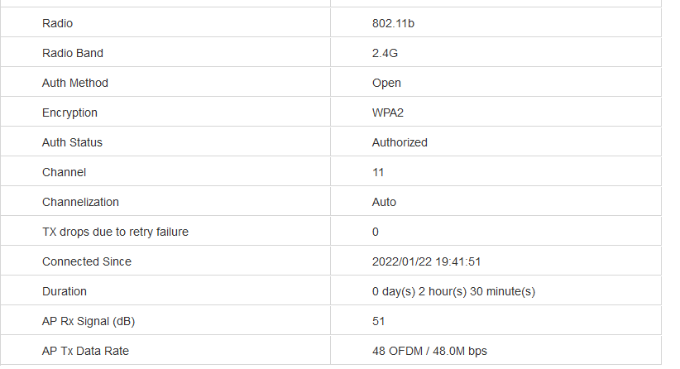

This is likely a UI bug as 802.11b does not support OFDM. It was more likely actually connected using g or n standards.

[david_black_594]

It's enabled alright...  Is this client 11b only?  Are you sure it's not connecting with 11g?  I'm not an Unleashed user so we might need some help from one of the Ruckus guys.  They're pretty good about chiming in.

[daniel_hainich]

@david_black_5940365​

no, its an 11n client.

[daniel_hainich]

it seems that this option can still be configured through cli.

en

config

ap-group System Default

radio 2.4 11n-only N-only

radio 5 11n-only N-only

exit
