Can access point models be mixed in a network?

matt_hodge_d5fx
New Contributor III
Hi - Currently we have a Zone Director ZD3000 and about 25 older Zone Flex access points (ZF7962) the ZD is using version 9.3.4.0 build 15. We are currently looking to add a few outdoor access points but want to see if I'm able to add different models with different software/firmware versions. We are looking to cover areas of about 400 feet or so. If anyone has any suggestions on models that will work, I'd really appreciate it.
6 REPLIES 6

syamantakomer
Moderator
Moderator
Hi Matt,

ZF7962 is supported only till 9.8.3 version, so if you want to keep this AP model in the network, then 9.8.3 is the highest version supported.

There are number of outdoor APs supported on 9.8.3 but all are EOL. You may have to decide if you want to keep ZF7962 and find EOL APs (I don't think you can by EOL devices from authorized Ruckus resellers) or you have to remove old 25 APs and buy new set of APs (latest outdoor and indoor APs).

To know supported APs on 9.8.3 version, please refer below release notes.

https://support.ruckuswireless.com/documents/2113-zonedirector-9-8-3-mr3-refresh2-release-notes/down...

If you wish to buy all new APs (outdoor and indoor) then ZD3000 can be upgraded upto
10.2.1 version. There are good number of Ruckus APs which are available for purchase and supported on 10.2.1.

Refer release notes for supported APs on 10.2.1.

https://support.ruckuswireless.com/documents/3254-zonedirector-10-2-1-mr1-refresh5-release-notes/dow...

Also note that ZD cannot use different software version for different AP models at the same time, means you can have single firmware running on ZD and APs.

You may try v/SZ if you wish to use old and new APs on different firmware versions. vSZ supports 3 major software versions for the APs.

Regards,
Syamantak Omer
Regards,
Syamantak Omer
Official Rep | Staff TSE | CWNA | CCNA | RASZA | RICXI

matt_hodge_d5fx
New Contributor III
Thank you so much for your help. Will the T300/301 work on version 9.3.4.0 build 15? Whats the difference between the T301s and T301n?

Hi Matt,

No, T301 is not supported on 9.3.4 version.

T301n and T301s has sectorized antenna for specific uses.

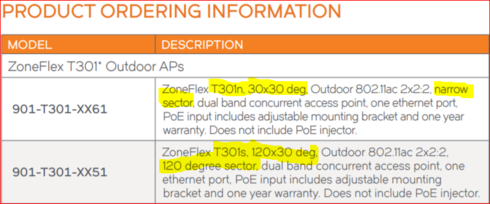

Below are the details from datasheet of R301s and n.

Image_ images_messages_5f91c488135b77e247ad5996_9acd9edaca3b02449bcc3de233499c22_RackMultipart20200617825251p84-edaa2f14-5e59-4e3c-b3e6-5ad5cc50b782-1074229996.png1592391142

For more information, please refer datasheet from below link.

http://a030f85c1e25003d7609-b98377aee968aad08453374eb1df3398.r40.cf2.rackcdn.com/datasheets/ds-zonef...
Regards,
Syamantak Omer
Official Rep | Staff TSE | CWNA | CCNA | RASZA | RICXI

michael_brado
Esteemed Contributor II
Just a note, ZD 9.8.3.0.58 (MR3 Refresh2) will support both ZF7962 and T300/T301 model APs with the latest improvements and bug fixes.

https://support.ruckuswireless.com/software/1542-zd3000-9-8-3-0-58-mr3-refresh2-software-release-wpa...
