Anyone using Cacti?

john_case_56682
New Contributor II
I am running Cacti for monitoring our network, and would like to monitor the Zone Director as well. What I'm running into is that there are no Cacti templates out there and I'm not comfortable building my own. Has anybody built a Cacti template that monitors the ZD or APs?
64 REPLIES 64

jason_vore
New Contributor
Hello guys,

I'm looking at doing this same thing through MRTG. However, I can't figure out how to enable SNMP v2 on my AP's that are controlled by a Zone Director.

Anyone able to give me a quick idea of where to set this?

Thanks!
jason

dilojunior
New Contributor III
Hi Jason,

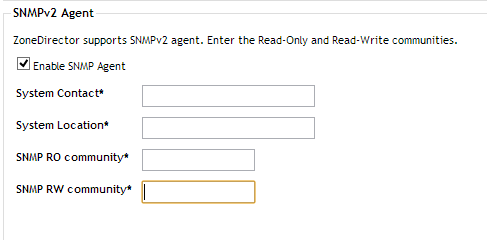

On the Config Tab, Menu->System you have a "+Network Management" link, at the end of the page.
Just click it and you will have access to enable SNMPv2
Image_ images_messages_5f91c40a135b77e2479302d5_da52157512cbab0bb394f237f916ccf1_snmpv2_inline-ba78cf40-4d7d-4423-9e85-fd0741aeb567-2060256081.PNG1382721992

You can use the same communities to get SNMPv2 data from APs connected to ZD.

jason_vore
New Contributor
Thanks!

julius_kisieli1
New Contributor III
Hi all,

Is anyone using PRTG to monitor the AP's? We are trying to monitor the number of associated clients on every AP, which OID should we be using from the AD library?

Thanks,
Julius

janusz_syrytczy
New Contributor III
PRTg - no, I don't use this.

For OIDs, please look into the document "Ruckus WirelessTM ZoneFlexTM Access Point SNMP Reference Guide" and a MIB (you have to ask the support for it?)

https://support.ruckuswireless.com/do...

From the guide:

ruckusWLANStatsNumSta OBJECT-TYPE
SYNTAX Counter32
MAX-ACCESS read-only
STATUS current
DESCRIPTION
"Number of associated stations."
::= { ruckusWLANStatsEntry 3 }

regards.
