Ruckus Unleashed AP says it only supports a maximum of 25 Access .

New Contributor
I have  version installed on all access points but the Access Point list states: Maximum 25 APs support . Shouldn't it be limited to 50 and not 25 as of version 200.7+? Does it have to do with hardware limitation, I am running the R500s only in the network. How can I increase the AP count, I currently have 32 in place bu

Contributor III
As long as any wave-1 AP (R310/500/600, T301) is present, the limit is 25.  It's 50 if all APs are wave-2.  I think the limit was increased again (maybe 200.8?) to 128 but I don't recall the details.

I thought it was a mistake on my part and enabled gateway mode so I reset the network to factory. Now I know it is a definite hardware restriction, so this changes my plan of action. Thank you.

Hi Lucio,

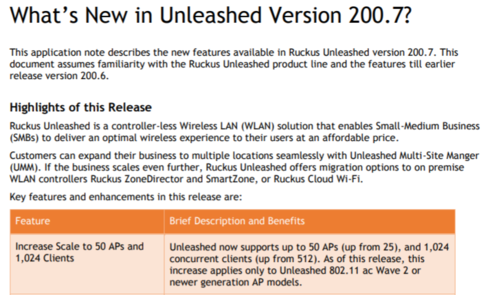

It is a limitation with wave-1 APs. Refer the What's New document for 200.7 here.

You can buy a ZD1200 and manage upto 150 APs. R500 is still supported on the latest ZD version 10.4.1. Find the data sheet here for ZD1200 and release notes of 10.4.1 from here.

Image_ images_messages_5f91c460135b77e247a4fa03_4b7f49c476e2304059f6793426b99864_RackMultipart202010163708319ok-3e9dc667-dbeb-4cc0-b107-9c237f905a99-571041083.png1602875101

Syamantak Omer

Syamantak Omer | Community moderator | Staff TSE | CWNA | CCNA | RASZA | RICXI | Follow me at
