I have a big problem into a building here, with the WiFi.
Actually users complain about speed of APs, so what I already did :
- Did a complet site survey with Ekahau Site Survey - Move/remove a lot of APs for remove Overlapping and get a good strengh of signal - Remove the 2.4 Ghz, like that users can connect only with 5 Ghz.
Unfortunetly, the last step was a disaster... users complain more than before.

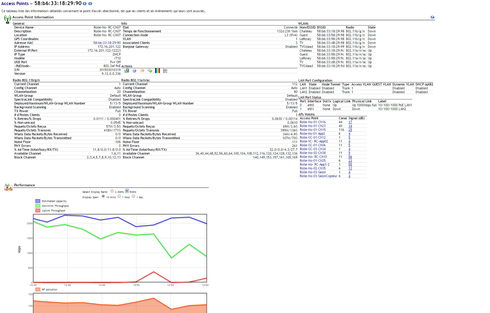

Specialy some girls who are on a specific room. When I see the information of the concerned AP, OMM it's not normal at all.
The estimated Capacity is very low and I dont know what's wrong and how I can solve the problem.
I meant to say 4 db, 5 db and 9 db in neighbor AP list. The APs are overlappiing with very less overlap. But then these are using 5 Ghz.
Speedflex is nothing but a ruckus propreitary tool to test the speed. You can find the speedflex on the monitor >> access point page. You can also go to clients and check the speed using speed flex as shown below.
Speedflex is also available in app store for iOS and android devices.
It's best to confirm your wired layer is performing as a start. Run a SpeedFlex to all your APs to confirm they're running gigabit speeds and that there isn't a backhaul issue. Run a 10-15 second ping test from a machine at your core switch/AP switch to all AP's to ensure latency is good and there is no packet loss to APs.
Consider dropping your 5GHz from 80MHz channels down to 40MHz channels.
Walk around with a client laptop, one connected at 2.4GHz and one at 5GHz and run a ping check to test the latency in trouble areas. Consider spectrum analysis in the trouble areas.
