Setting individual networks on single Unleashed AP

[jason_sparrow]

Hi all,

Just downloaded the Unleashed firmware to one of my AP's to test it out and get a feel for things, however, i like the AP's to broadcast a separate 2.4 & 5 network with different BSID and passwords.

Could someone point me in the right direction on how to do this as i cannot find any way of separating them out like it could be done on the standalone software.

Many thanks

[tony_heung]

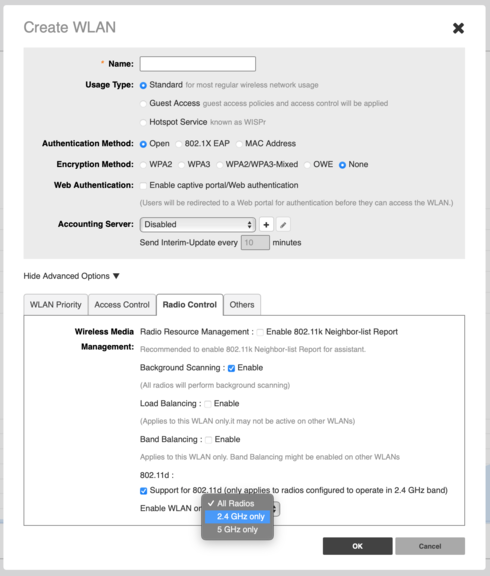

I am running 200.9 and I can create ssid2 for 2.4GHz radio and ssid5 for 5GHz on the same AP.  See below screenshot for the option under Create WLAN -> Radio Control -> Enable WLAN on:.
