Ruckus R710 is not working with Unleashed in UniFi Switch 48 Port 750 Watt

[gohar_aziz]

I upgraded all the AP's to Ruckus R710 in Unleashed x3 but they are not powering on even activating 24V Passive POE on UniFi switches . But they are working with the 12V DC power. How can I make them work.

[dave_watkins_74]

Passive POE is NOT 802.3at/af compliant. If you switch supports both you will have to set the appropriate port on the switch to 802.3at/af.

It's possible if you try to push 24V passive POE to the AP you will damage it

My guess is you have a Unifi switch designed to power their range of passive POE AP's. The model of the switch would be required to confirm that however

[gohar_aziz]

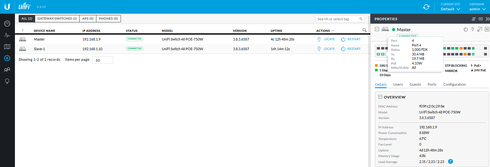

So 2 out of 3 AP's are working on unifi Switch on POE+ and right now its consuming only 4.33 watt. But the 1st AP which i sed on this switch is not working on POE+ or eather24v Passivs.
But its working fine on non manageble POE switch.
I also check the power mode its Auto.

So the problem is in Ruckus as 2 other AP's are working fine.
