RUCKUS Forums - Continue wired network from mesh node - Page 2

Anonymous · ‎03-12-2018

Is it possible to continue a wired network from a R500 mesh node?

I am running a unleased r500 mesh network with the main node connected to a router with internet. I would like to add a switch to a mesh node on the other side of our building to add some computers (without wifi) on that end.

michael_brado · ‎03-12-2018

I'm not sure static IP clients beyond Mesh AP will work, as Ruckus would have no way to know those client MACs exist.
We don't have the commands to say this mac with this IP is on this interface, unless it's on your AP switch port side...?
Please share your test results.

Anonymous · ‎03-13-2018

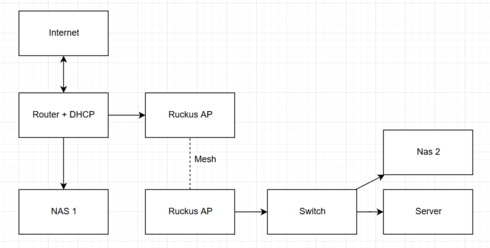

This is the situation I would like to create:

Image_ images_messages_5f91c43b135b77e2479d3296_f9b768755b256a1c20948e27a2ca1f0a_RackMultipart20180313766433owf-792022c5-4629-4b62-a44b-2f5e78d9576c-2071203871.PNG1520931635

Anonymous · ‎03-13-2018

yes its doable as suggested earlier.. thx

Anonymous · ‎03-13-2018

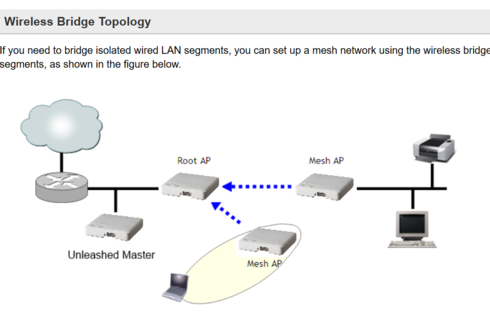

Found this in Ruckus documentation. It might be easier than I thought.

Image_ images_messages_5f91c43b135b77e2479d3e2a_ed7f85382acd1e744987cdf583def2b3_RackMultipart2018031433054ra42-c36777b7-b8d3-448f-b993-ca51563ad451-202740364.PNG1521009888

Anonymous · ‎03-14-2018

yes, its pretty much the same you made...
