Vsz with AP 802.1x can not use

guo_jin_huang
New Contributor II
Hello everyone

Sorry my english is poor

that I have a question is

I want to use Vsz and a R510 AP , 802.1x Authentication
but now , when I connect wifi , and enter the Radius server user name and password
I can't get the wifi..

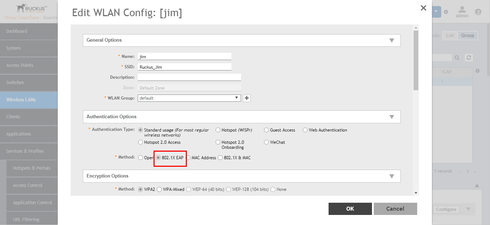

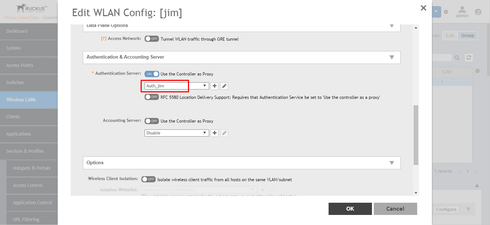

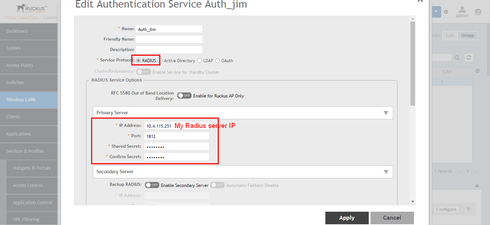

those images is my setting on Vsz and Radius server
thanks every response!!
Image_ images_messages_5f91c3f4135b77e2478f872a_faddedad86f1dfdb67ba77e6089fe411_RackMultipart201811139788350pr-af08c1d2-37ad-426c-9855-76ded77d98a8-202702955.png1542098523
Image_ images_messages_5f91c3f4135b77e2478f872a_0143c56adeb2062ba10a5793217a7385_RackMultipart20181113978831e8x-fe52a085-49b3-4b28-951c-1a7839f2ca92-609437362.png1542097965Image_ images_messages_5f91c3f4135b77e2478f872a_689aa7c4a6fcb1732789d2892e625baf_RackMultipart20181113111444lh9-fc0c8252-17aa-4b14-b9de-342e62c73158-913160377.png1542097973Image_ images_messages_5f91c3f4135b77e2478f872a_d60964ef0385ec22bfa91ee3dd1f7654_RackMultipart20181113978491g4d-f4e3c825-50e8-4fe5-91ba-21f15507fca2-977173610.png1542097980
8 REPLIES 8

DarrelRhodes
Contributor III
Hi Jim,

As you are using your vSZ as RADIUS proxy, have you authorised it on your RADIUS server? You will need to manually authorise the IP of the vSZ in your RADIUS server to allow it to act as the authenticator for clients.

Thanks,
Darrel.

Hi Darrel

thanks for your response

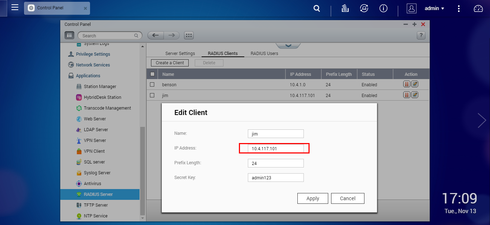

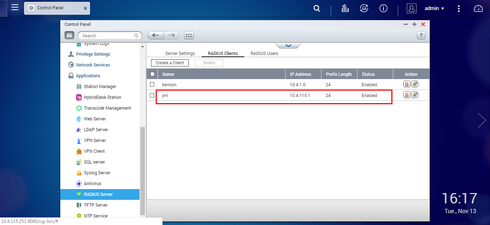

this is my Radius setting
the ip is my Vsz IP
but the problem is the same..
Image_ images_messages_5f91c478135b77e247aa8e1b_5b59a9ad6d6444434fabc4a36aca5909_RackMultipart20181113978521xdk-c032bbdb-1c2c-4858-834a-a3de0762d843-1245363204.png1542100261

pilot1199
New Contributor III
Any logs from this RADIUS server to see RADIUS Access requests are coming from vSZ?

pilot1199
New Contributor III
I can add that the configuration of 802.1x on the RADIUS side is not trivial task but it's well documented.
