ruckus r510

[adbrooks0409]

I have power blinking slowly green, but no lights for the control downstairs, and no internet.  the upstairs ruckus is working and has internet.  All of these problems happened after the power outage I have cable, but not able to access the internet which is affecting my home service for my alarm system and outside television.

PS, why do I have to learn how to navigate this system if it's not working? Send a technician out, I'm not a cable installer, nor do I understand your language, to fix it myself.

Frustrated

[pinky_ruckus]

Hi @adbrooks0409 ,

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

I hope you are doing well!!!

Thank you for the information you shared.

As per the case description, I understand that your RUCKUS setup is not working after the power outage. .

Could you please let us know the answers to the below queries to assist you better?

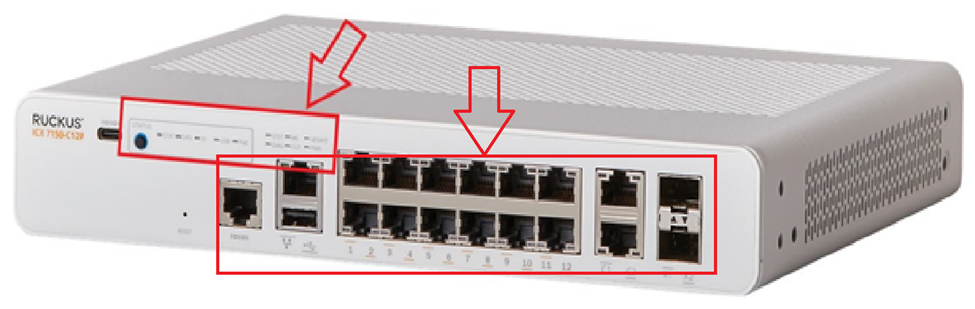

1.   On your switch while it's plugged into the outlet, do you see any lights on? (Amber or green) Please let us know which lights are on. (Please refer to the below picture and share a picture of the same, showing the light status and the FULL Switch panel cable connections to the Switch ports)

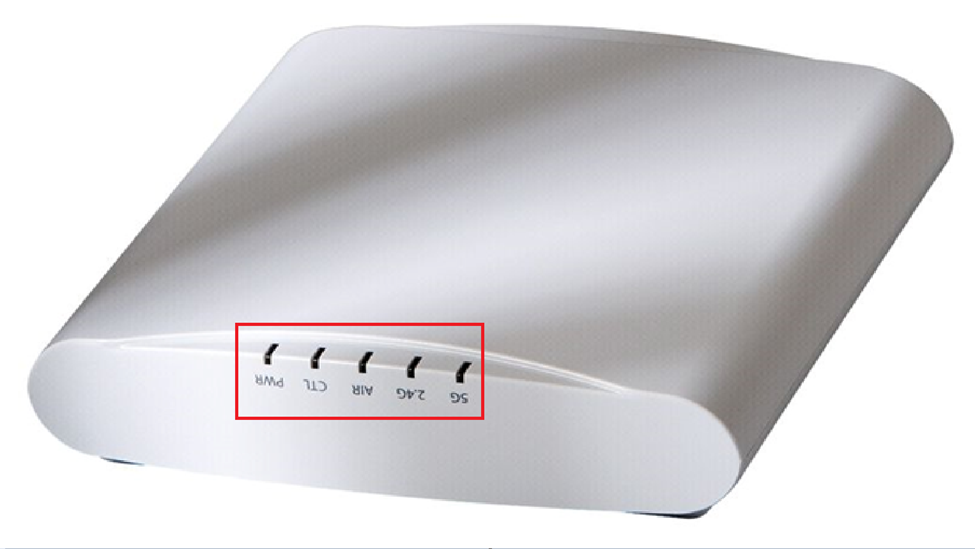

2.   May I know how many Access Points are connected to the Switch? Could you please let me know the light status on the Access Points? Any of these lights are on (Please refer to the below picture and share a picture of the same)

Please help us with pictures of your ICX-7150-C12P Switch showing the status of the lights and cable connections to the Switch ports. Also, light the status of Access Points.

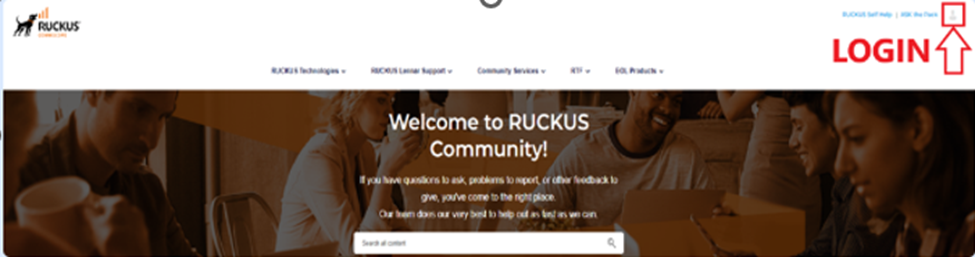

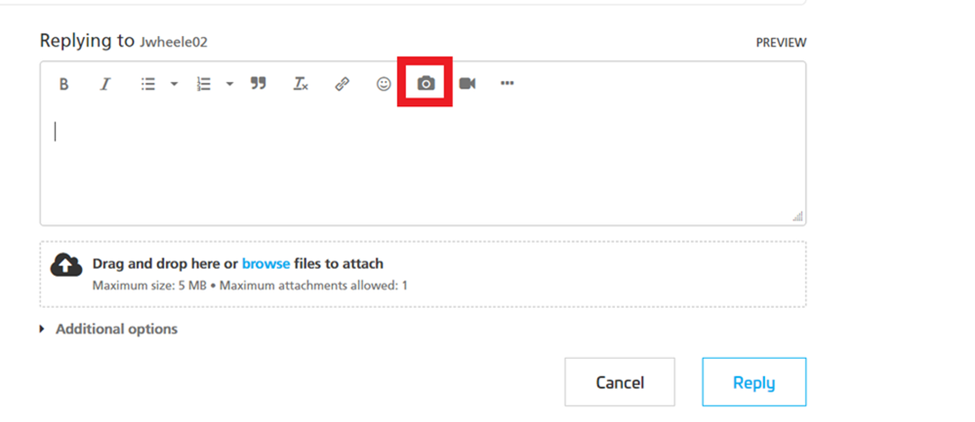

Before uploading the photos please log in to the RUCKUS account and you can upload the image.

Please let us know the answers to ALL the above queries or let us know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Pinky Rajendran

RUCKUS Lennar Home Community.

[adbrooks0409]

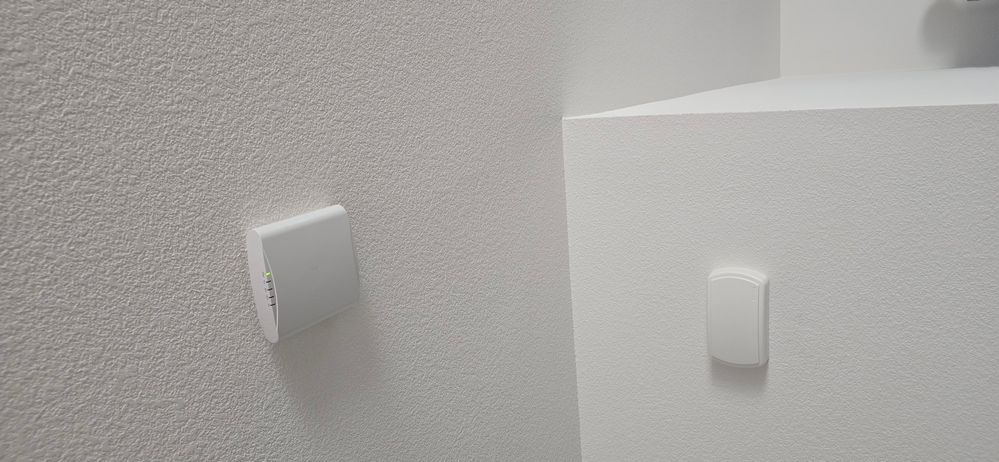

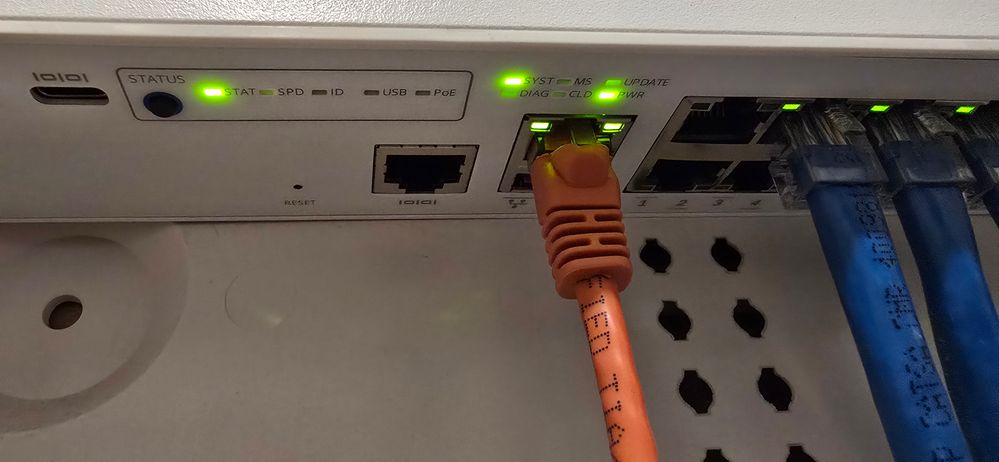

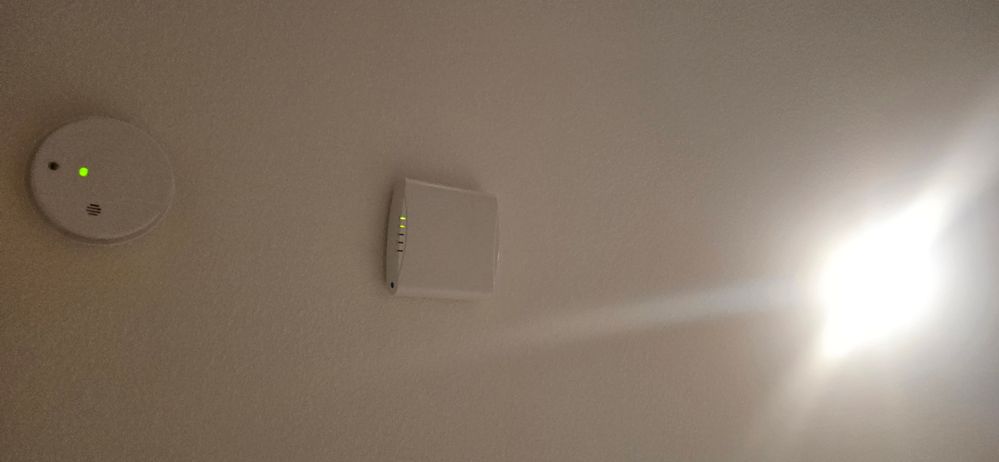

The light is blinking next to orange cableupstairs wall unit connected to internetdownstairs wall unit not connected to internet

[adbrooks0409]

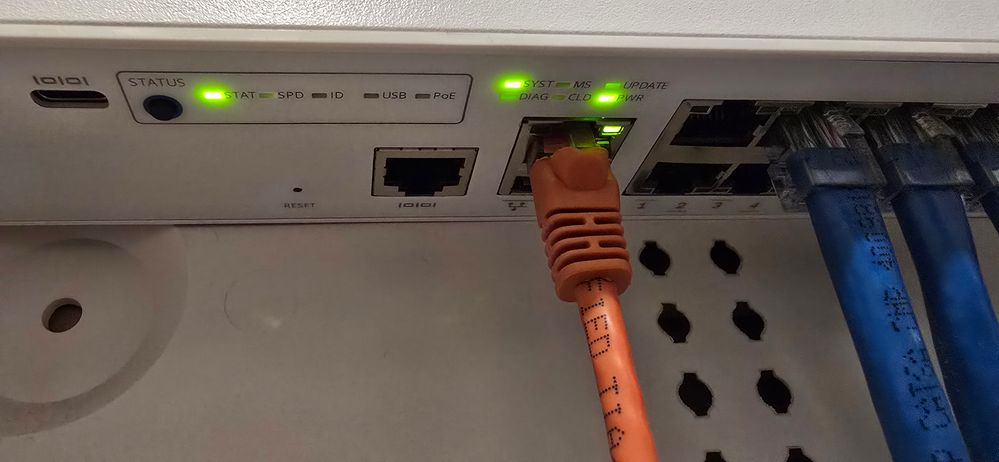

blinking light on this picture I caught the image when it was blinking.

[pinky_ruckus]

Hello @adbrooks0409 ,

Thank you for the response.

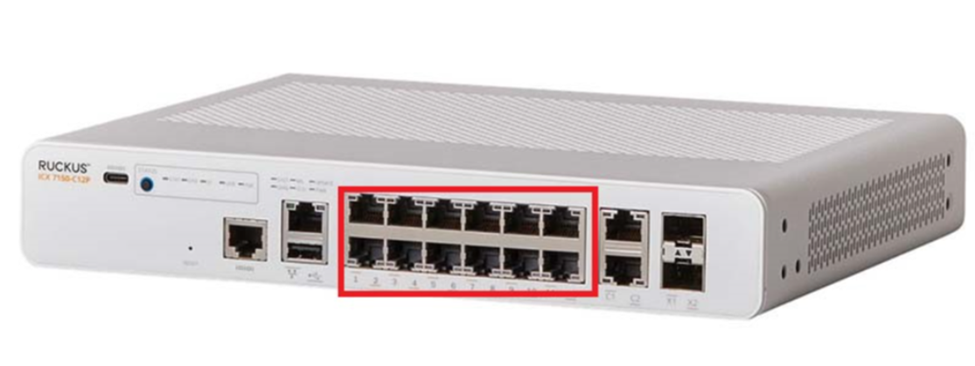

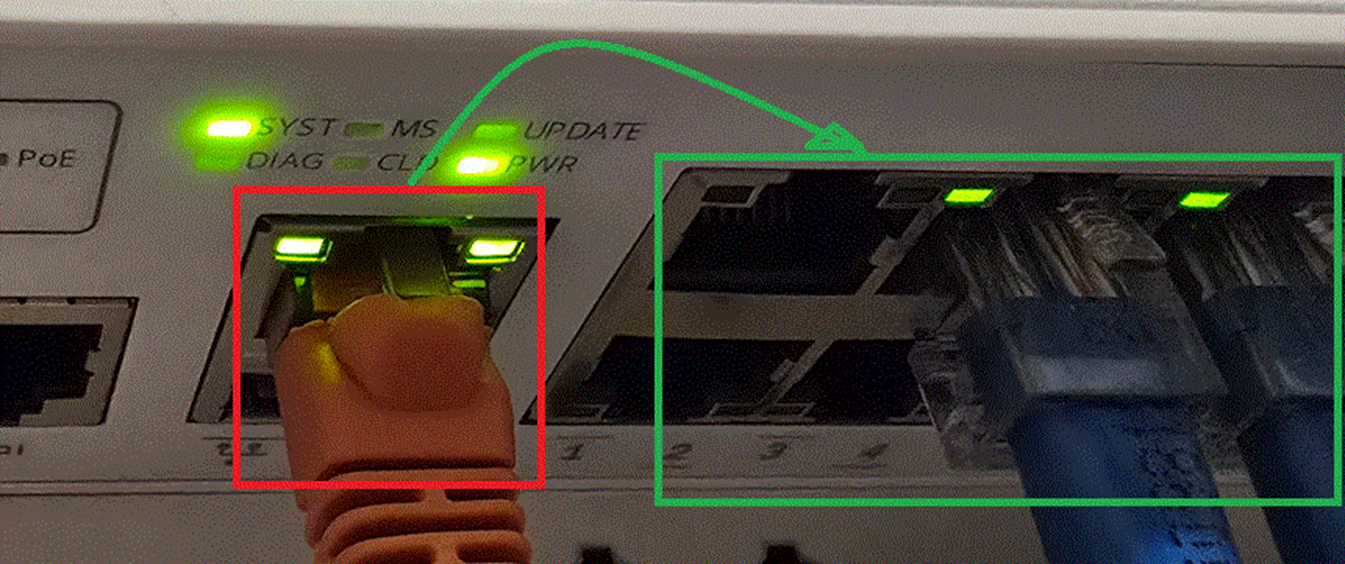

From the pictures you shared, it seems like the ethernet cable which is coming from the ISP’s (Internet Service Provider’s) Router or Modem/Router combo is plugged into the wrong port on the Switch panel. It must be plugged into any 1 in-12 ports as shown in the below screenshot.

1. Please unplug the ethernet cable and plug it into the correct port then reboot (unplug and plug from the power outlet) and try to connect to the Internet via Access Points.

It should be plugged into one of the 12 ports as shown in the below screenshot.

Thank you for your patience and understanding.

Regards,

Pinky Rajendran

RUCKUS Lennar Home Community
