Hi Jaya,
I am not able to attach/insert photos, here are the steps that i have tried. Please let me know if there is different option to upload the image.
Trouble Shooting performed so far:
Other steps performed were:
- Unwired CenturyLink modem to Ruckus Router and wired after waiting about 5 mins (tried this step several times)
- Unplugged power cable that goes to Ruckus router and plugged back in after 5 mins (tried this step several times)
- Completely powered off the Ruckus router and century link modem, and then power on first century link modem then Ruckus router and vice versa after waiting about 5 mins (tried this step few times)
- Changed the LAN cable from 1 & 2 port to 7 & 8 port of Ruckus switch that connects to Ruckus AP
- Changed the setting on Router (ICX 7150-C12P) from STAT, SPD, ID and PoE by clicking the tiny push button on the Ruckus router and tested each setting
- No internet connection on all of them except very low bandwidth connection in STAT setting for some time (in which YouTube only works)
- Every time when setting is changed between the above options and brought back to STAT, the Wi-Fi connection from AP works for all the Apps for about 5mins with good speed, after about 5 mins all the apps completely stop working except youtube (which works for some more time)
- Tested the wired connection from Ruckus touter (ICX 7150-C12P), wired Connection from Ruckus ICX7150-C12P to Computer, it worked fine for 4 hours of testing.

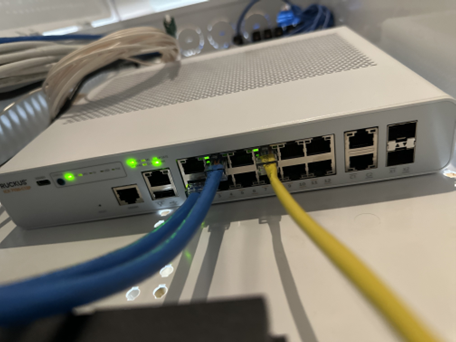

Picture of Ruckus ICX 7150-C12P attached

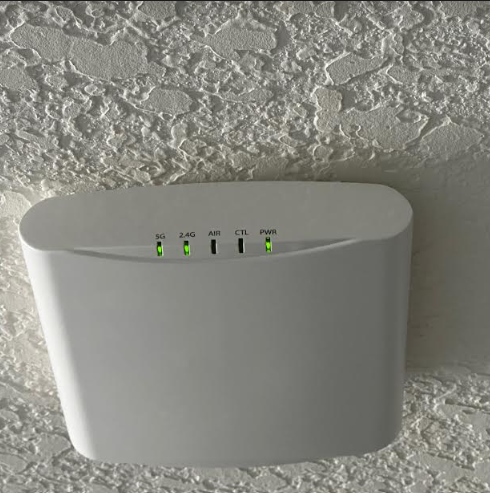

Picture of main AP attached

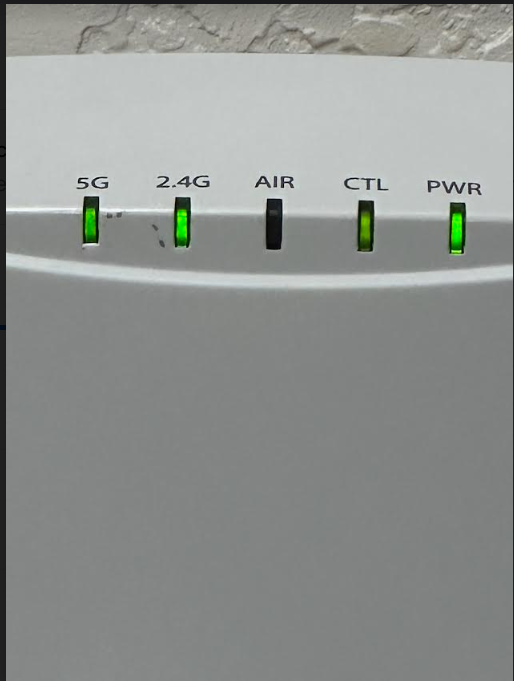

Picture of second AP 2nd Floor attached here
