Hi @what_ruckus83
Now using the RJ45 cable you need to connect the cable to the console port on the switch.
Using the below image please connect the RJ45 cable to the port no 15 on the switch as mentioned below.
2-You will need to connect the console cable into the console port (Number 1 or 15 depending on your cable) and connect to a USB on your workstation (Computer).
3-A terminal software is required to connect to the device
Here is where you can download:
Putty:https://www.putty.org/
Mobaxterm: https://mobaxterm.mobatek.net/download-home-edition.html
4-To access by console must install a driver so that the workstation/pc/desktop or laptop can recognize the cable
Make sure to download the zip drive for the file below & "extract all". Once it's extracted, run the file ,driver should be installed.
Link:https://support.ruckuswireless.com/software/1414-brocade-ruckus-7150-usb-serial-driver-windows
Link: silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads
5-Open a session in putty or MobaXterm with the following settings:

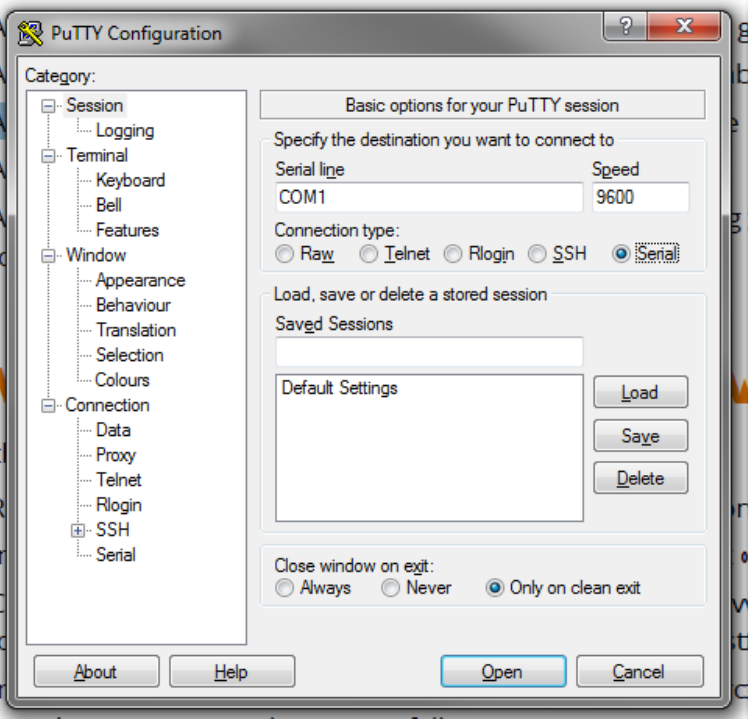

This is a putty session:

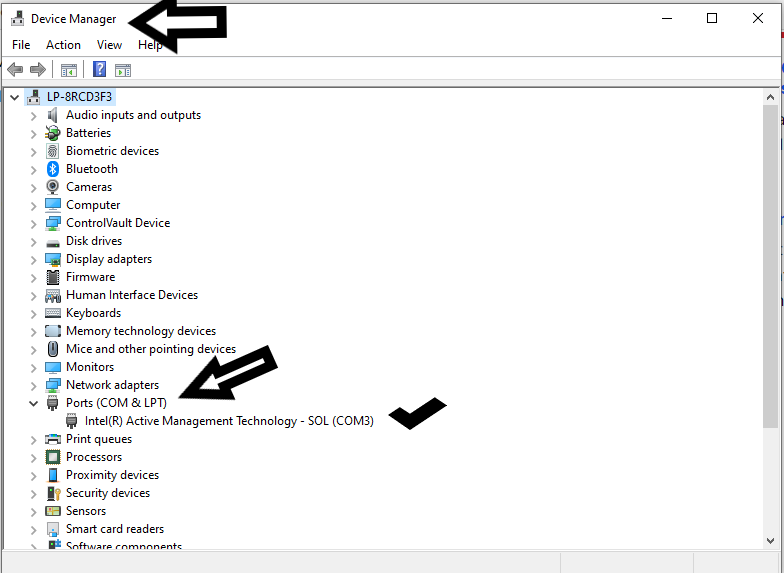

NOTE: The “Serial line” will change from “COM1” to “COMx”, it depends on how many connections your computer currently has. To identify the one, we need go to “Device manager” and locale the USB console connection. In the following example is letting us that the USB is on COM3
The MobaXterm app will recognize automatically the USB connection.
6-Then hit ok and you are going to see a prompt like the following:
ICX7150-12 Router>
ICX7150-24P Switch>
Here is a video link that we can use as reference: https://www.youtube.com/watch?v=YXR4xhkw3q8
Please let us know if you have any queries in this regard.
Best regards,
Jayavidhya
