Lennar ruckus switch showing as router instead of switch?

cmaldoff
New Contributor

I was on vacation and came home to my unleashed app showing as a router instead of a switch.

I tried rebooting the switch by am seeing the following in the unleashed app.

Based on the screenshot is this the case?




 If so how do I fix this?  Is this something that is easy to do?

Thank you

1 ACCEPTED SOLUTION

Hi @cmaldoff

The issue must be fixed now.

Thank you again.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

View solution in original post

31 REPLIES 31

Hi @cmaldoff

Thank you for the response and the update.

Please follow to the below screenshot and enable Telnet:

Once you enable Telnet try to access CLI from the MAC terminal as described below. And perform the commands mentioned below to get this issue fixed.

Example "open terminal":

Telnet: Example

nc 10.0.0.132 23 (Format is : nc <ip address of the switch> 23)

Please Enter the below commands in CLI to fix this issue:

Note: Hit Enter to accept each command

enable

copy flash flash secondary

boot system flash secondary yes

Example:

VIDEO LINK AS REFERENCEhttps://www.youtube.com/watch?v=Eem1IBgYaWc

ICX7150-24P Router>enable (hit enter to accept the command)
ICX7150-24P Router#copy flash flash secondary (hit enter to accept the command and wait: until the flash finished)
ICX7150-24P Router#boot system flash secondary yes (hit enter to accept the command: the switch will reboot)

Please let me know if you have any queries in this regard.

Did I answer your queries? If yes, hit the Kudos buttons and also accept the answers as Accepted solutions.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

I was able to get in and follow the steps.

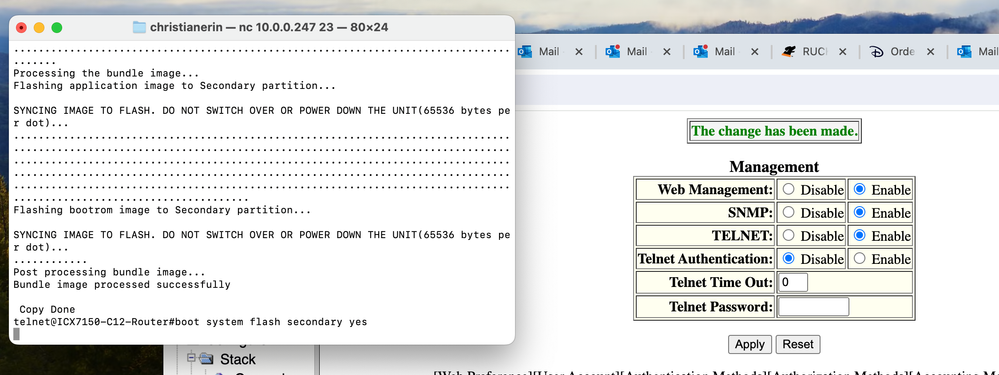

It is now stuck on after I ran teh boot system flash secondary command

Does this take awhile to complete?

Screenshot 2024-01-18 at 12.15.00 PM.png

Hi @cmaldoff

Thank you for the response and the update.

Yes, when you execute 'boot system flash secondary yes' commands, the Switch will reboot and it takes a while to come back online.

Please let me know if you have any queries.

Did I answer your queries? If yes, hit the Kudos buttons and also accept the answers as Accepted solutions.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

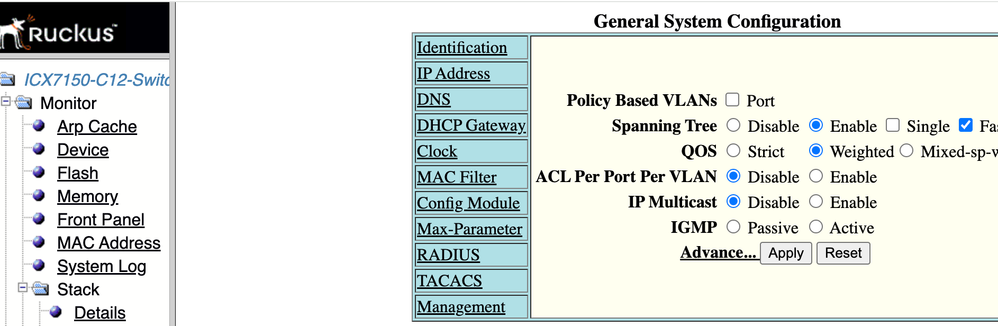

it looks like it reboot and is now showing as a switch.Screenshot 2024-01-18 at 12.23.49 PM.png



Hi @cmaldoff

The issue must be fixed now.

Thank you again.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.
