ICX 7150-C12P to r510 AP power issue

carlos_messe
New Contributor
I have an ICX 7150-C12P and an r510 AP. After a power outage, the r510 is no longer receiving power via the PoE connection. On the ICX 7150, the ethernet port shows a steady (sometime twitchy) amber light. All of the 12 RJ-45 Ports have the same issue as I move the ethernet cable.
2 REPLIES 2

Nikita
New Contributor III
Hi Mess, I'd try:
1. Replace the Ethernet cable
2. If available, connect another AP
3. From switch CLI doublecheck PoE status with "show inline power"

I'm afraid this could be an AP hardware failure.

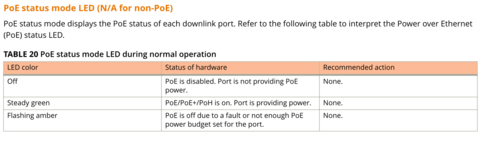

Image_ images_messages_5f91c45b135b77e247a414ba_c68577f80080f2893e1b11500c30c6d1_RackMultipart2020060112719930m-3dbf7fa4-a3c2-487d-9b1b-531f8b16181d-267973564.png1590995984

hayward_kong
Contributor III
Actually you should contact ruckus to replace your switch since it seems to be a very common problem on the switches that are installed on Lennar Smart Homes.  Yes I know a few Lennar smart home owners that experienced this when the power went out...sounds like a bad batch of switches. They come with limited lifetime warranty if you are the original house owner.
