Can ICX 7150 be set to switch mode via web interface

MarkKelley
New Contributor III

I have a Lennar home that came with an ICX-7150-12P and two R510s.  Due to a power loss, the iCX has restared in router mode.  I have access to it via the web interface so is it possible to reset it to switch mode via the web or do I need to do it via the console?  I don't currently have access to the console because I need a USB C cable.  I've ordered one but I'd like to fix it now if possible.

19 REPLIES 19

BenBeck
Moderator
Moderator

Hey @MarkKelley

Can you look at this on the GUI and send a screenshot?

Monitor > Flash

The switch should default to primary flash (generally a switching image). With that said, it will work just fine on the routing image and will continue to switch packets. I believe the Lennar deployments are just one vlan, so no configuration or specific image is really needed for the box to serve its purpose. You can define boot preference here if needed:

Configure > System > Boot Sequence



Ben Beck, RCNA, Principal Technical Support Engineer
support.ruckuswireless.com/contact-us

MarkKelley
New Contributor III

@BenBeck , I'm apparently in the dashboard and not the GUI.  How do I get into the GUI?

Hey @MarkKelley

I am not exactly sure what you mean there. Are you looking at an AP GUI and not a switch GUI? Can you post a screenshot?

Ben Beck, RCNA, Principal Technical Support Engineer
support.ruckuswireless.com/contact-us

MarkKelley
New Contributor III

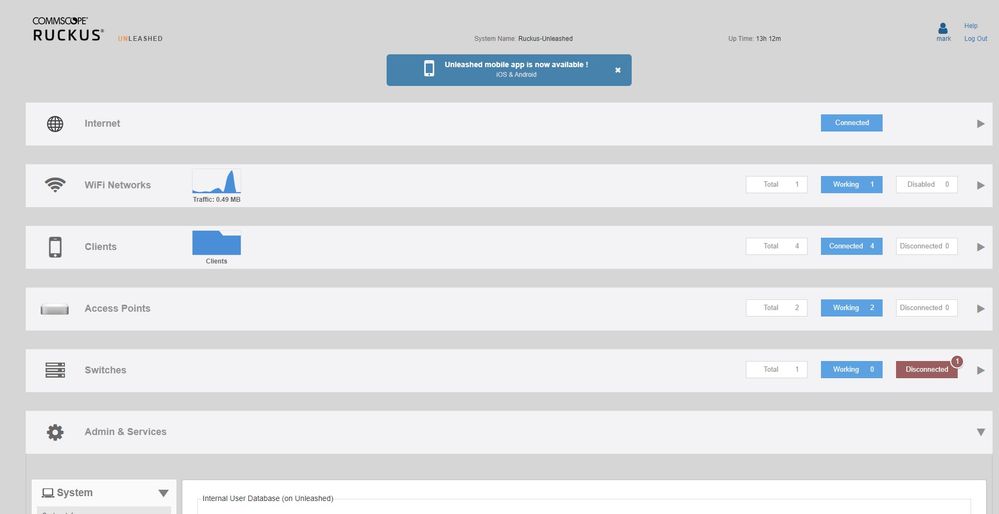

This is what I'm seeing:
