Description:
This guide will help Lennar Home users upgrade their RUCKUS R510 Unleashed Access Points (APs) to the latest recommended stable version to ensure smooth performance, improved connectivity, and compatibility with the RUCKUS Unleashed mobile application.
Environment:
- Product: RUCKUS Unleashed Access Points
- Current Recommended Stable Version: 200.15.6.212.27
(This may change in future releases — always check for updated recommendations.)
Introduction:
Your RUCKUS Access Points connect your devices to the internet and are an essential part of your Lennar Home network.
Just like smartphones and computers, these devices occasionally need firmware upgrades, small software updates that fix bugs, improve security, and add new features.
By keeping your APs on the recommended stable firmware, you can:
- Get the latest performance improvements for faster, more reliable Wi-Fi.
- Fix app login issues such as:
"You are not connected to the unleashed network. Go to settings?" — even when you are already connected. - Benefit from enhanced internet stability and better device compatibility.
When Should You Upgrade?
- If you are experiencing unstable connections or app login errors.
- If RUCKUS or Lennar Support recommends an update.
- Every few months, as part of regular maintenance (when a stable version is released).
Upgrade Methods:
The process explaining the Access Points Upgrade:
There are two ways to upgrade your RUCKUS R510 Access Points:
1. Online Upgrade (Recommended)
This is the simplest method. Your Access Point downloads and installs the update directly from RUCKUS servers.
Steps:
1. Connect your computer or mobile device to your RUCKUS Wi-Fi network.
2. Open a web browser and go to the Unleashed Web Interface:
Type https://unleashed.ruckuswireless.com or Master AP IP Address in the URL address bar.
3. Log in with your Admin Username and Password.
4. Navigate to: Admin & Services → Administration → Upgrade.
5. Select Online Upgrade and follow the on-screen instructions. (Figure 1)
Video Tutorial: Watch the Online Upgrade Process Video

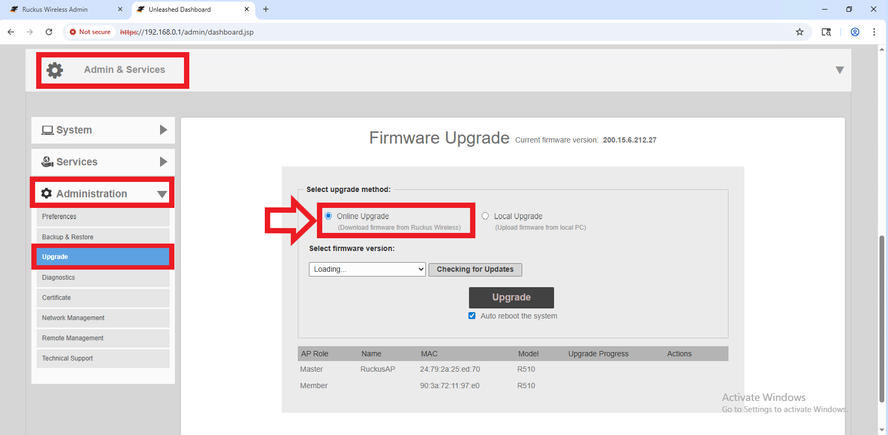

Figure 1: Unleashed Dashboard – Online Upgrade View
2. Local Upgrade (Alternative Method)
If the online upgrade doesn’t work or doesn’t offer the required version, you can manually install the firmware.
Steps:
1. Download the firmware file for version 200.15.6.212.27 from the official RUCKUS link: Download Firmware Patch (Figure 2)
2. Save the file to your computer.
3. Connect to your RUCKUS Wi-Fi and open the Unleashed Web Interface.
4. Log in, then go to: Admin & Services → Administration → Upgrade.
5. Select Local Upgrade. (Figure 3)
6. Upload the firmware file you downloaded.
7. Click Upgrade and wait for the process to complete.
(Your AP will restart — Wi-Fi will be temporarily unavailable during this time.)
Video Tutorial: Watch the Local Upgrade Process Video

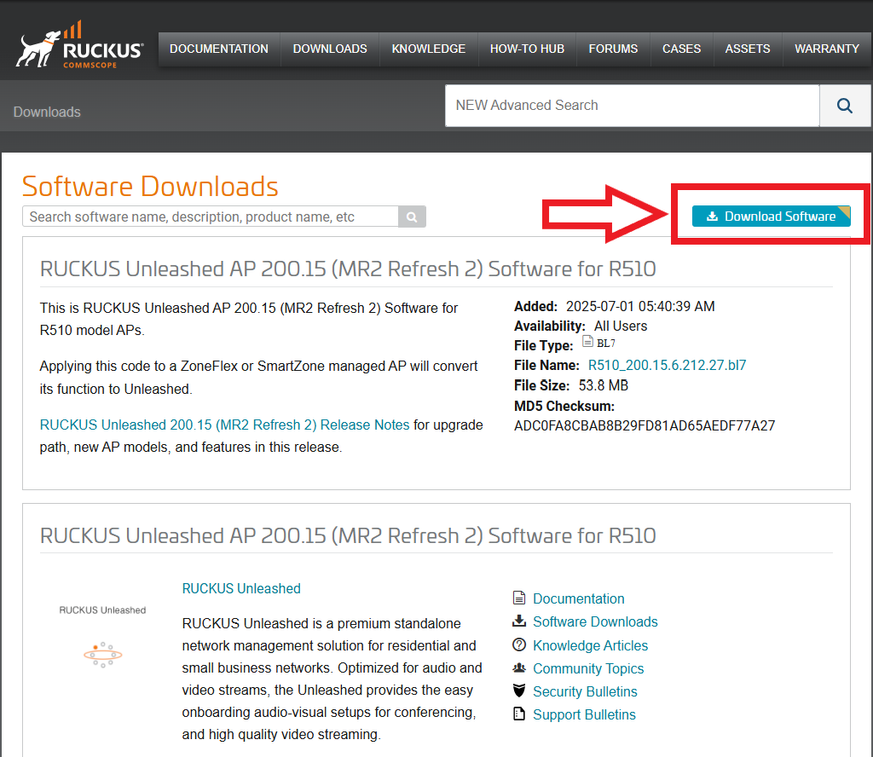

Figure 2: Where to find and download the firmware file for Local Upgrade.

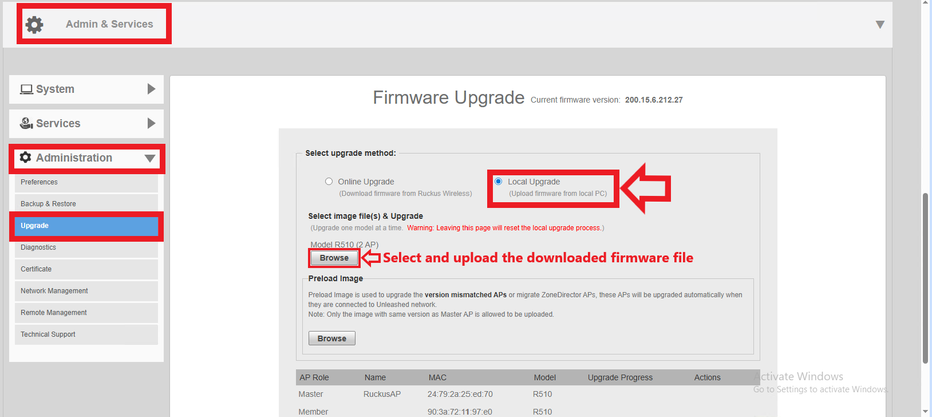

Figure 3: Unleashed Dashboard – Local Upgrade View
Additional Tips for a Smooth Upgrade
- Stable Power & Network: Keep the AP powered on and connected to a stable internet (for Online upgrade) or local network (for Local upgrade) during the process. Interruptions may cause failures.
- Browser Compatibility: Use an updated browser (Google Chrome, Mozilla Firefox, or Microsoft Edge) for best results when accessing the Unleashed login portal.
- Upgrade During Maintenance Window: Perform the upgrade during off-peak hours to minimize downtime for connected users.
- Verify Post-Upgrade: After completion, confirm the firmware version under : Admin & Services → System → Upgrade and test basic connectivity.
- Clear Browser Cache: If you face login or display issues post-upgrade, clear your browser cache or try logging in from a different browser.
- AP Cluster Consistency: Ensure all Access Points in the Unleashed network are upgraded to the same firmware version for stability.
Still Need Help?
If you’re still experiencing issues or need help with any of the steps:
Visit the RUCKUS Lennar Home Support Community
Post your query or share a photo of your RUCKUS ICX-7150-C12P Switch and RUCKUS Access Points, our support team and community members are here to assist you.
Thank you for being part of the RUCKUS Lennar Home community. We're here to ensure your network stays connected and running smoothly.
