Description:
This RUCKUS Lennar Knowledge Base self-help article is designed to assist Lennar Home users in effectively configuring, optimizing, and setting up the RUCKUS and other networking devices for uninterrupted Internet connectivity.
Customer Environment:
- Product(s): RUCKUS ICX-7150-C12P Switch and RUCKUS R510/R310 Unleashed Access Points.
- Software / Firmware Version: -NA-
- Other Conditions: -NA-
Setup Explanation:
1. RUCKUS ICX-7150-C12P Switch:
Function: The RUCKUS ICX-7150-C12P Switch is a networking device that delivers Power over Ethernet (PoE) to wireless access points and other PoE-enabled devices via Ethernet cables. It features 12 ports centrally located on the switch, which can be used to connect various devices such as PCs, TVs, IP Cameras, IP Phones and gaming consoles, etc., through Ethernet cables.

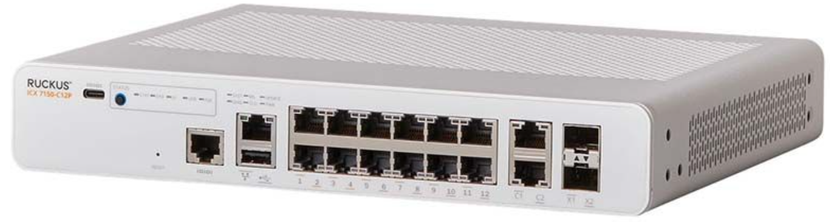

Figure 1: RUCKUS ICX-7150-C12P Switch
2. RUCKUS R510/R310 Access Points (APs):
Function: A wireless access point (WAP) is a device that allows wireless devices to connect to a wired network, such as the Internet or a local area network (LAN). It acts as a central hub for wireless communication, allowing devices like smartphones, tablets, and laptops to access the network without the need for wired connections.
WAPs are often used in offices or large buildings where a single Wi-Fi router would be insufficient.

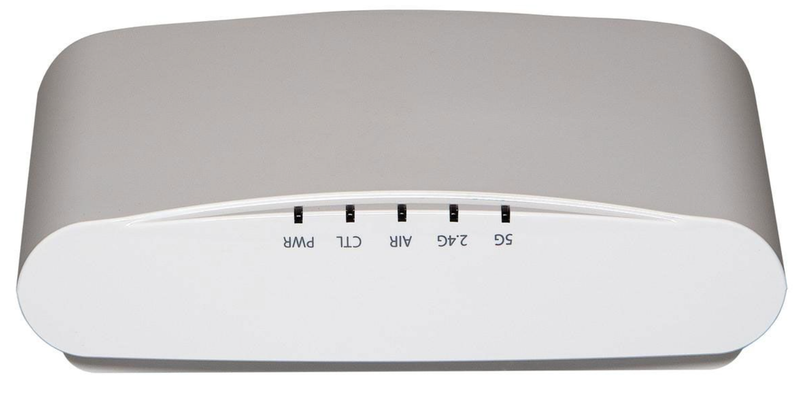

Figure 2: RUCKUS R510/R310 Access Point (AP)
3. Modem and Router or Modem-Router Combo Device:
A modem and a router, or a modem-router combo device, must be connected to ONE of the 12 ports on the RUCKUS ICX-7150-C12P Switch. Note that this can be either two separate devices (a modem and a router) or a single modem-router combo device, as provided by your Internet Service Provider (ISP).
In the examples below, the coaxial cable is connected to the modem. An Ethernet cable then connects the modem to the router, which is subsequently connected to one of the 12 ports on the RUCKUS ICX-7150-C12P Switch (see Figure 3).

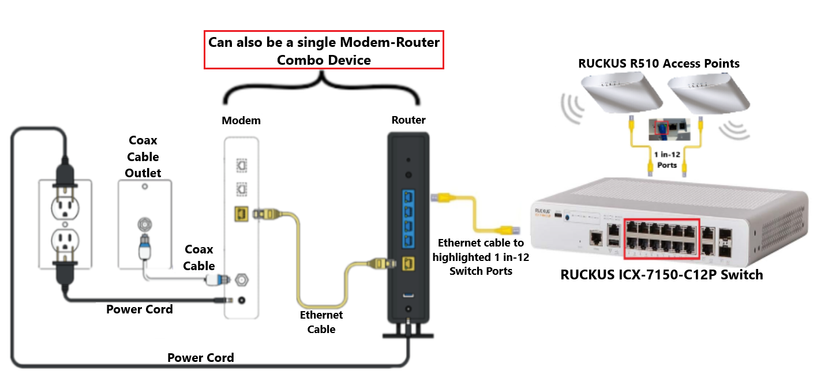

Figure 3: Connections for a Separate Modem and Router to the RUCKUS ICX-7150-C12P Switch
In Figure 4 connection is described with the Modem-Router combo device.

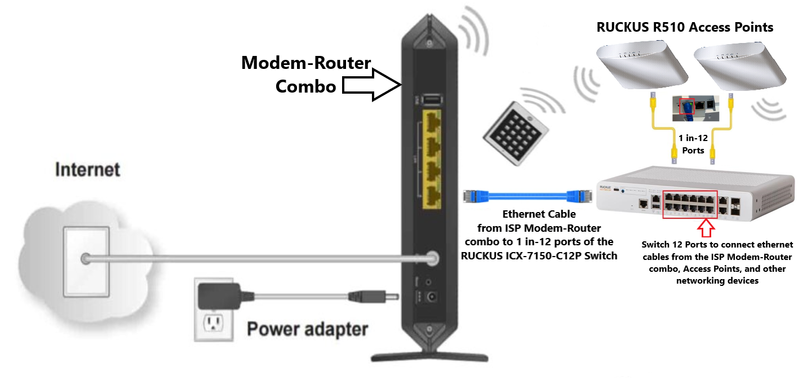

Figure 4: Connections for a Modem-Router Combo device to the RUCKUS ICX-7150-C12P Switch
4. The network topology is as follows:
Modem → Router → One of the 12 Ports on the RUCKUS ICX-7150-C12P Switch → Access Points (APs) or Other Devices
- Alternatively:
- Modem-Router Combo device → One of the 12 Ports on the RUCKUS ICX-7150-C12P Switch → Access Points (APs) or Other Devices
Any wired device, such as security IP cameras, doorbells, IP Phones or computers, can be connected to any of the 12 ports on the RUCKUS ICX-7150-C12P Switch using an Ethernet cable.

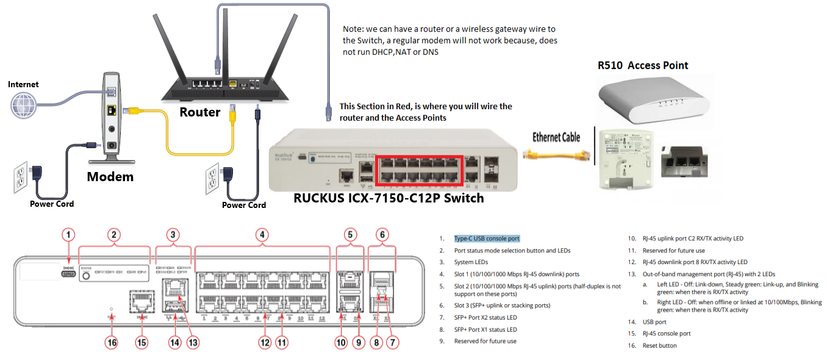

Figure 5: Detailed Connections for a Separate Modem and Router, Including Information on the RUCKUS ICX-7150-C12P Switch Ports
5. Device Cabinet:
Figure 6 shows the typical Setup of the Networking Devices of the Lennar Home within a Cabinet

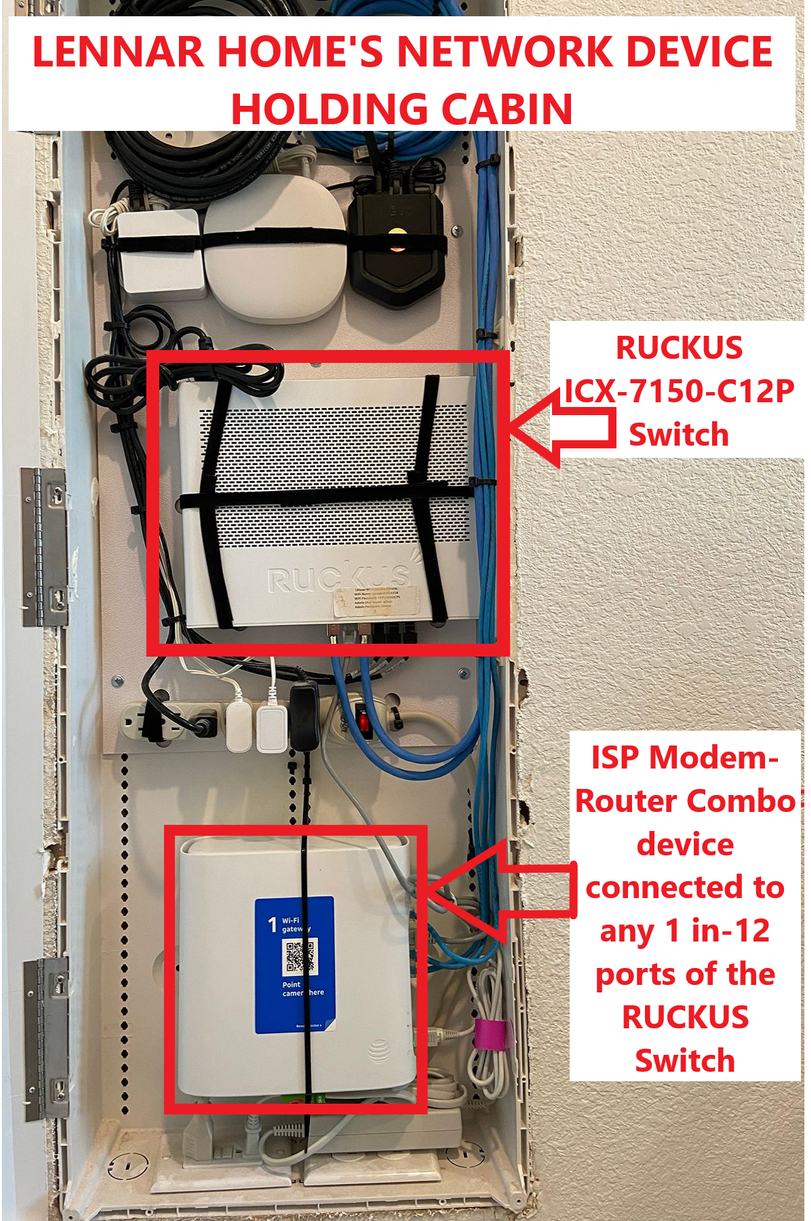

Figure 6: shows the typical setup of the Networking Devices for the Lennar Home within a Cabinet
6. Connecting to the Access Points Wi-Fi:
Once we verify that the RUCKUS devices are connected according to the description provided, we can attempt to connect to the Wi-Fi network through the RUCKUS Access Points. Please use the password either if you know it or as provided in the Networking Device holding cabinet. (Refer to the figure 7 below for further details.)

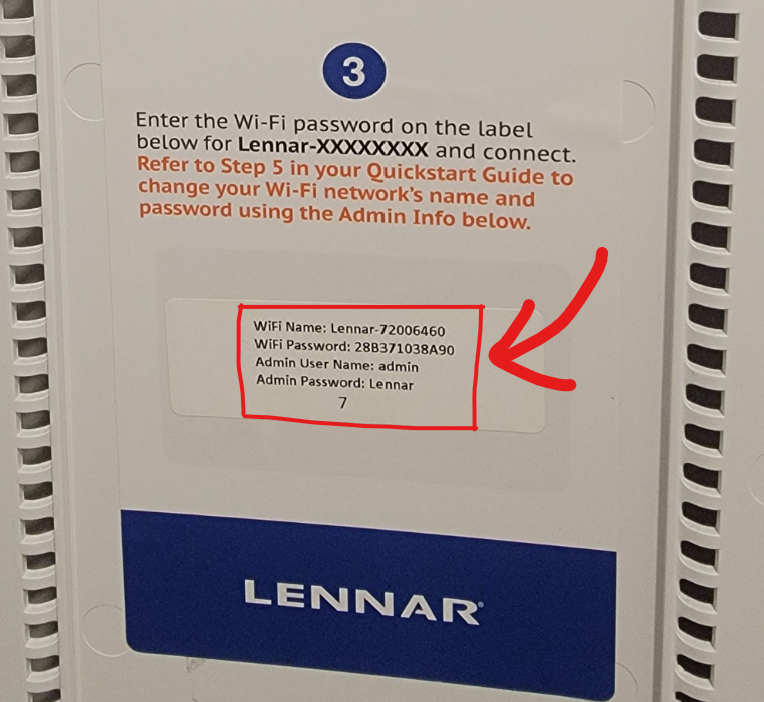

Figure 7: RUCKUS Lennar Wi-Fi login details
7. Factory reset of the RUCKUS Access Points:
If the login password does not work, we will need to perform a factory reset on your RUCKUS Access Points and configure them with a new Wi-Fi network/SSID. For detailed instructions on the factory reset process for the RUCKUS R510/R310 Access Points, please refer to the Factory reset process of the RUCKUS R510 Access Points for Lennar Home users Knowledge Base self-help article.
Should you require any further assistance with this process or encounter any other issues with RUCKUS devices in your Lennar Home, please do not hesitate to reach out to RUCKUS Lennar Support for prompt assistance.
Thank you for visiting the RUCKUS Lennar Home Community.
