C08-ZP Switching Capacity?

[robert_berki]

What is the actual switching capacity of the C08-ZP? It says 56 Gb/s in the product specifications but in the Ruckus model feature comparison sheet it says 200 Gb/s.

[MariaC862]

Hi Robert,

I found the 56 Gb on the data sheet, but couldn't find that other document "Ruckus model feature comparison sheet"

Could you please share the link or a screenshot?

[robert_berki]

Yes, it's the data sheet here: https://webresources.vistancenetworks.com/download/assets/RUCKUS+ICX+8200+Data+Sheet/3b4a7128d7a311f...

[MariaC862]

Thank you; I think you are referring to this:

These are different models, so have different capacity.

ZP is 200 Gbps.

[Robin_S]

Hi Robert,

Thank you for sharing the URL which you have referred. It is indeed the datasheet for ICX 8200 switch series.
We do have multiple models available under the ICX8200 series.

If you refer the same datasheet

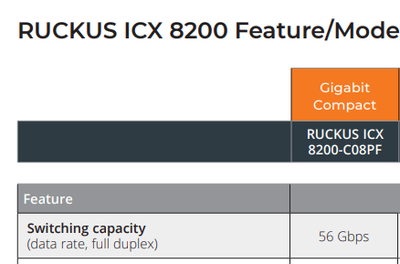

In page 4, we have the switching capacity of RUCKUS ICX 8200-C08PF model listed as 56 Gbps

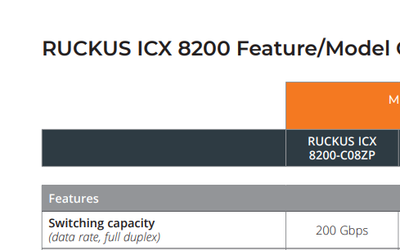

In page 6, we have the switching capacity of RUCKUS ICX 8200-C08ZP model listed as 200 Gbps

Switching capacity varies based on the switch model.


Robin Saseendran
Sr Tech Support Engineer - EMEA
