If you solve this, you could be the one!

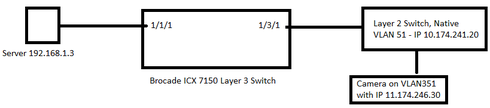

We have a closed network environment with NO ROUTER, but we do have a layer 3 switch. Please refer to the diagram; we have a server with IP address 192.168.1.3/24 with gateway of 192.168.1.1 The server is connected to Ethernet port 1/1/1 of the Brocade Ruckus ICX 7150 switch which has vlan 192 untagged with ve 192 on IP address of 192.168.1.1.
We have a fiber link on port 1/3/1 that goes out to a layer 2 switch. On port 1/3/1 we have vlan 51 tagged with ve 51 on IP address 10.174.241.99 and vlan 351 with tagged ve on IP address 220.127.116.11.
From the Brocade Ruckus we can ping the Layer 2 switch at 10.174.241.20, the Camera at 18.104.22.168, and the server at 192.168.1.3. From the server we cannot ping or communicate with the camera at 22.214.171.124.
On the server we even added static routes:
route add 10.174.241.0 mask 255.255.255.0 192.168.1.1
route add 126.96.36.199 mask 255.255.255.0 192.168.1.1
What are we missing?
I'll be happy to share our running config if you're interested in making someone's week.
