Ruckus R500 Wireless Transmit Power Settings

zvii_khara
New Contributor II
Hi

I have Ruckus R500 AP and where i can find Wireless radio settings to configure transmit power. I have this AP at home so i don't need hi power at home. Firmware: 200.5.10.0.235 (GA) Software for R500

This option is very easy to find and configure in Unifi AP-LR and trying to configure this in R500. Pic attached. thanks

Image_ images_messages_5f91c3f2135b77e2478f5c25_de5073bc17863f92aa86feb234603812_RackMultipart2019042970570uhzy-e6068bcd-5896-4590-9b08-15fd890cc19a-1509840414.jpg1556541658
4 REPLIES 4

ben_winslow
New Contributor II
Zvii,

In the Unleashed GUI, you can click on the access points tab, and then select either the summary icon on the left to make global changes to all access points, or select an individual AP to change settings on that particular one.  Once you select it, click edit above the list.  You can then adjust the tx power for the 2.4 and 5 GHz radios separately.

abilashpr
Contributor III
Hi Zvii,

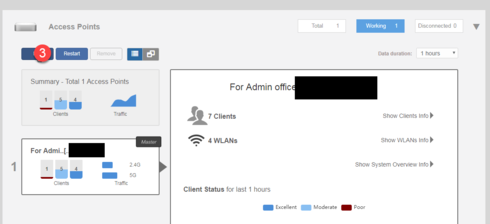

Please find the Screenshots, below.



Image_ images_messages_5f91c448135b77e2479fedc2_9ddb913ca8053c61d422e3b3abf01158_RackMultipart201904294028hvmsf-0ed0e112-711b-4fa0-942a-a445e2116627-1971368619.png1556545782Image_ images_messages_5f91c448135b77e2479fedc2_1c29e3e94db44f148106a1649f23bb33_RackMultipart201904299061u3etj-c374f50c-917a-4fe1-9fbe-087e6fbb5254-823318522.png1556545892Image_ images_messages_5f91c448135b77e2479fedc2_333061de90b2f0edab8e367ec15e521c_RackMultipart2019042932411jpk9-468b3c50-0a07-45ae-9464-50bc44a1564c-1444132994.png1556545902Image_ images_messages_5f91c448135b77e2479fedc2_9be0950c251d311abf832db2d39a1135_RackMultipart20190429266171haq-b02e42fe-9dde-4994-9928-328dc5bd5813-1676570292.png1556545911Image_ images_messages_5f91c448135b77e2479fedc2_da863f169f20a8e8eb0c2ed8f869559d_RackMultipart20190429106928ojp-dff5ae08-17da-4f38-b5c9-686c462e5bbc-827912101.png1556545922Image_ images_messages_5f91c448135b77e2479fedc2_d22ca03f853e218e2bb718739580d716_RackMultipart20190429187912i0e-d447a8d2-5f86-4c30-b943-4ae8b676b58c-1478944402.png1556545931

Regards,
Abilash PR.

-10 db is lower option than -1db?

zvii_khara
New Contributor II
Thanks for fast and great support.
