R510 ZoneFlex Untagged VLAN and Cisco Switch

andy_lizak
New Contributor II
I have an R510 AP that I am trying to use in stand alone mode. I have 3 networks I want to bring down to the AP using the ZoneFlex firmware

  • VLAN 10 - MGMT =  This is the network I want to assign the IP to the AP to manage it.
  • VLAN 20 - Wireless = Main wireless network
  • VLAN 40 - Guest = Guest network
Configuration scenarios I have tried:
         A:  R510:
                Under the Management Interface I have set the VLAN to 10 and assigned the IP.
              Cisco 2960G
                 switchport mode trunk
                 switchport trunk native vlan 10
                 switchport trunk allowed vlan 30,40

         B: R510:
               Under the Management Interface I leave this set to default VLAN and assign the IP
               Under interface eth0, confirmed it is a Trunk port and set the untagged to VLAN 10
              Cisco 2960G
                 switchport mode trunk
                 switchport trunk native vlan 10
                 switchport trunk allowed vlan 30,40
         C: R510:
               Under the Management Interface I leave this set VLAN 10 and assign the IP
               Under interface eth0, confirmed it is a Trunk port and set the untagged to VLAN 10
              Cisco 2960G
                 switchport mode trunk
                 switchport trunk native vlan 10
                 switchport trunk allowed vlan 30,40
        😧 R510:
               Leave all VLANs to vlan 1 and set IP in the range
              Cisco 2960G
                 switchport mode trunk
                 switchport trunk allowed vlan 10,30,40

I then flashed the R510 to the Unleased software to see if that was any better. Easier -- yes. Does what I want -- No.

The only way I can get the AP to function the way I want to is to use BOTH ports on the AP:
             eth0 - gets the mgmt IP and the switchport configured as an access port on that network
             eth1 - set as trunk on default (1) with the client LANs trunked down to assign to WLANS



I do not want to have to run 2 cables to this AP when I put it where I want it.

Has anyone done anything like this and can help me?
5 REPLIES 5

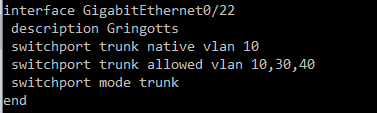

Well I tried what you suggested. And that didn't work. But what did work was this
Image_ images_messages_5f91c489135b77e247ad88cf_8a63a08dc31163af8f620ebf37dd976c_RackMultipart2020032954324k8r8-8d077112-25f0-4de5-bb54-2aafc8768793-844500836.png1585440173

I tried removing the native vlan 10 and leaving it tagged and it lost connectivity. I set the native to 10 and removed it on the allowed vlan and didn't work.

I swear I've tried this and it didnt work.

Thanks for the help!!
