Is there a way to govern the speed of a VLAN?

jim_millerick_3
New Contributor III
I have a client who has about 10 VLANs.   The overall internet connection speed is 1 gigabit.   They'd like to give their employees full speed when available but they'd like to max some of the guest vlans to say 50mbit.    Is this possible to have mixed speed VLANs on the same AP and to choose specific fractions of the speed?
7 REPLIES 7

andrew_giancol1
Contributor III
My thought here would be to limit Vlan speeds to the internet at the firewall. Easy, and effective.

andrew_giancol1
Contributor III

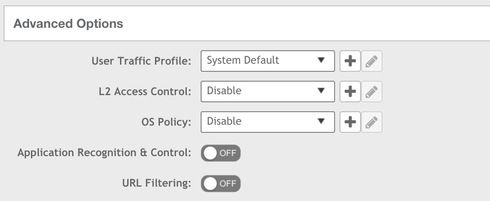

in addition to this, there are traffic ACLs that can be applied per SSID, assuming though that each Vlan has it's own SSID to ride.
Image_ images_messages_5f91c45c135b77e247a44962_7f30c73ef6f493f0b96c859d6323b418_RackMultipart2020073181273snp4-d0a11021-a066-4e35-875f-184d016d23b0-1164379132.jpg1596229950
Image_ images_messages_5f91c45c135b77e247a44962_088e67910c6e49c2da2b2a7f9092f7aa_RackMultipart2020073198562k7de-71918471-3d3e-40b4-9013-e77e721d1465-136443868.jpg1596230047
Image_ images_messages_5f91c45c135b77e247a44962_7ef0ddf0b89e45ddc61ad29182ba0d33_RackMultipart2020073176085ypuc-bc11cf46-0ce6-4539-82a4-043215c0e08f-360456498.jpg1596229991

jim_millerick_3
New Contributor III
Thanks - I agree but the firewall we have only let's you set priority, not speed.

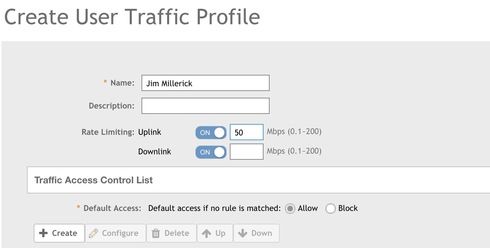

The traffic profile is your friend if your controller supports it. What system are you using to control your Access points?
