Is there a way to govern the speed of a VLAN?
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
07-31-2020 02:03 PM
I have a client who has about 10 VLANs. The overall internet connection speed is 1 gigabit. They'd like to give their employees full speed when available but they'd like to max some of the guest vlans to say 50mbit. Is this possible to have mixed speed VLANs on the same AP and to choose specific fractions of the speed?
7 REPLIES 7
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
07-31-2020 02:06 PM
My thought here would be to limit Vlan speeds to the internet at the firewall. Easy, and effective.
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
07-31-2020 02:14 PM
in addition to this, there are traffic ACLs that can be applied per SSID, assuming though that each Vlan has it's own SSID to ride.



Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
07-31-2020 02:39 PM
Thanks - I agree but the firewall we have only let's you set priority, not speed.
Options
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
07-31-2020 02:40 PM

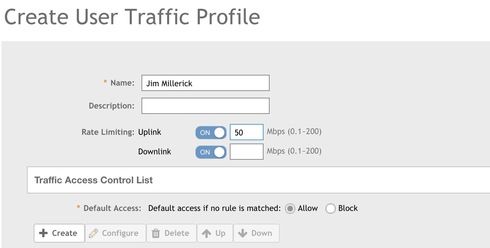

The traffic profile is your friend if your controller supports it. What system are you using to control your Access points?
