AP Management VLAN

New Contributor
Hey everyone,

I'm having some VLAN trouble, and I really hope you can help me out. I'm not new to networking nor VLANs. However, I find how VLANs are implemented with Ruckus a bit confusing and can't get it to "click" for me.

Current configuration..

VLANs Native 1, 10T, 100T, 200T, 210T

ZD 1200 Native VLAN 1

POE:Trunk, Untagged 1
LAN: General, Untagged 100. Members 10, 100

port 4 vlan config: Native 1, 10T, 100T, 200T, 210T

Right now, the ZD and APs are configured on the default VLAN 1 and are functional. This VLAN is still a usable subnet on my network with limited functionality. I have several SSIDs each with a tagged VLAN and are also functional.

All of my network equipment EXCEPT my ZD and R500s use VLAN 100 as management VLAN without any issues. I'm in the process of phasing out VLAN 1 and moving all default VLANs to 999 to increase security, and set my management VLANs to 100. Wanting to start slow (smart!) I decided to begin with just 1 of my APs.. here's the changes:

ZD 1200 Native VLAN 1

*update IP address as per new native VLAN
POE:Trunk, Untagged 100
LAN: General, Untagged 100. Members 10, 100
LAN is configured for a tagged IP phone and Untagged for IP phone pass-through port

port 4 vlan config: Native 100U, 10T, 200T, 210T

Upon saving this configuration, I lose all access to the AP and have to factory reset.

What am I doing wrong???

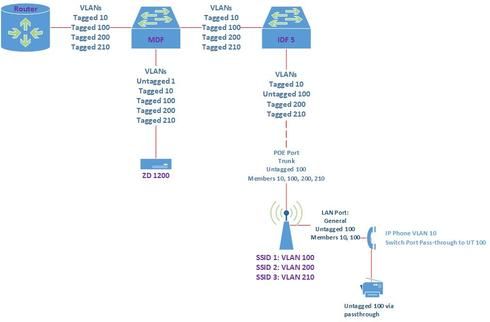

Attached is an image of how I am trying to configure my AP and switch...

Image_ images_messages_5f91c3f6135b77e2478fe4ae_aad476a29dc8ffa56187165058a20b0a_RackMultipart2019053073941hsj9-61018939-2651-4508-b389-9f3e6eec8b76-951647666.jpg1559245215
