Smartzone 300 is not rejoining the cluster (v5.1) - Error on Join Request - Not all blades are In_Service

francesco_pollo
New Contributor

I have two SmartZone 300 (v5.1) working perfectly until recently. But some days ago one of them simply lost its configuration and left the cluster. Yesterday I try to rejoin it, but as you can see in the images, it is not joining the cluster and I don't have any clue.

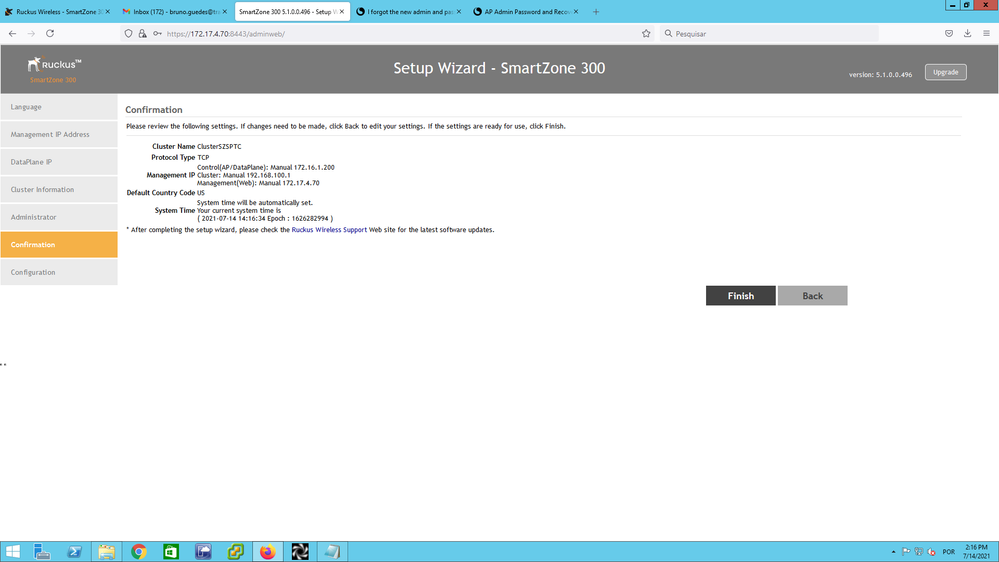

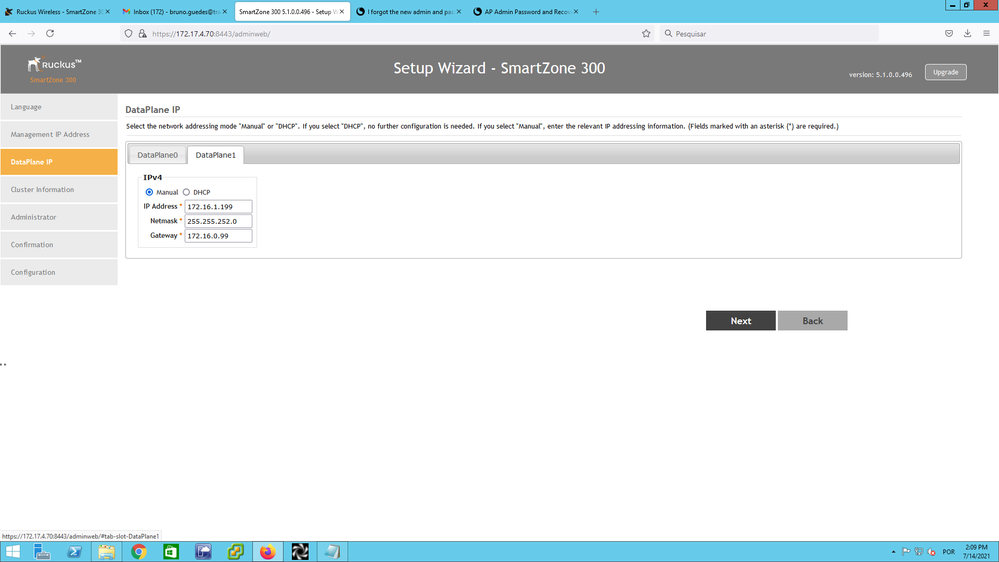

I have run the setup and reconfigured all IP as it was before this issue. I see that it is possible to ping the actual LEADER of the cluster.

I'm sure the cluster's name is right and I'm giving the controller the name they had previously.

I tried to rejoin it multiple times and I always get this same error (Not all Blades are in service).

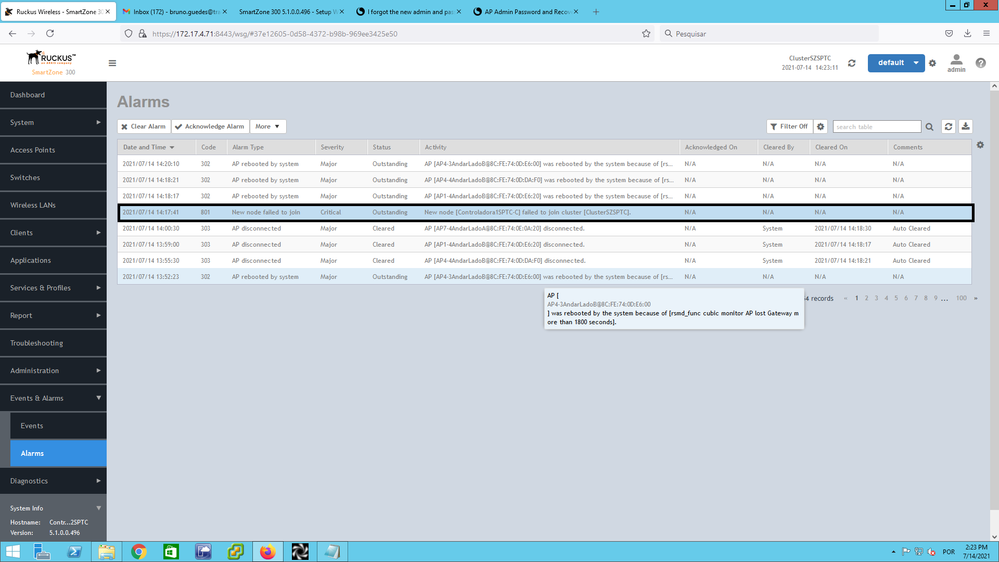

I checked the show service and all services are offline. I run the service start command, but it seems not work because all services keep offline. In the Leader I see that the controller tried to Join, but it was not possible. The alarm code is 801, but the description just says to try to rejoin.

(https://docs.commscope.com/bundle/sz-511-alarmguide-sz300vsz/page/GUID-E0EEA545-619F-4F85-AC4E-894B9...)

Has anyone any experience trying to rejoin a Smartzone that was working in the cluster before or seen this kind of issue?

 Model                           : SZ300
   SZ Version                      : 5.1.0.0.496
   Control Plane Software Version  : 5.1.0.0.447
   Data Plane Software Version     : 5.1.0.0.496
   AP Firmware Version             : 5.1.0.0.595, 3.6.2.0.254

Image_ images_messages_60f06efd66c7636aabe49a3a_c834f32a1e226114e97c86341ae1cd9d_Image1-4de659a1-c105-4863-b259-b6675e734005-506130065.png
Image_ images_messages_60f06efd66c7636aabe49a3a_f95f96bf78d931bc67552aa103fd660c_Image3-f8b8e310-25ea-4546-95f5-779bede01024-507977107.png
Image_ images_messages_60f06efd66c7636aabe49a3a_4d9b7842283791d1c7c17fdbf74da7fc_Image4-10d66334-2f9b-4f03-9035-bb260ba52711-508900628.png
Image_ images_messages_60f06efd66c7636aabe49a3a_beb9a316fb0494b0dd9ed521418cbf88_Image5-99cd6581-1744-480a-8afe-c219a30dd46b-509824149.png
0 REPLIES 0
