Urgent Help ZD1106 cant control APs on Access VLAN 20

gerald_maduabuc
New Contributor III
Dear Sir

Urgent attention will be appreciated

Please who can suggest how best we can configure ZD to work in other VLAN other than VLAN 1.

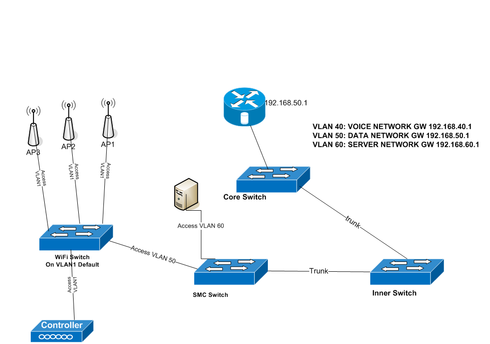

We connected our wifi network network as shown below, it works but network seems slow. We are not comfortable that wifi switch is sourcing internet from SMC switch. This is because WiFi switch is GE while SMC Switch is FE, but, ZD could control APs (7372s and 7352) on Wifi switch on all default access VLAN 1 which connects to access vlan 20 port of SMC switch.  It is our desire to connect this way: Inner Switch <<<
Image_ images_messages_5f91c3e2135b77e2478c95a4_f7062ad51b3ffd43933b0f4b6103c0aa_RackMultipart2016062094675ruly-8eea1590-3921-4e30-9ac8-2974e2a1420a-1995339748.png1466434662

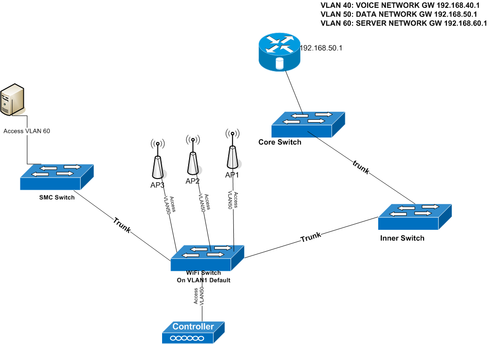

But when we try below set up below topology Inner Switch <<<
Image_ images_messages_5f91c3e2135b77e2478c95a4_b3e66343803ffe9c45c0e8d81eb5df13_RackMultipart20160620276561ti0-d5877582-7478-43a5-b78f-ae024f4d8aa9-1842181447.png1466434782

Please What should we do to achieve the second diagram. Urgent attention will be appreciated
0 REPLIES 0
