Have a question about the SZ100-D ports, that I'm struggling to find any documentation on. In the quick start guide they are just labelled as 1-2 being management, and 3-6 being data (or 3-4 if you don't have the SFP+ ports).
So my question is, how do these ports behave if they are both connected? Are they doing some kind of failover, or aggregation?
As far as I can see in the configuration, you don't set anything by specific port, just management or data interfaces.
Do you know if there is any documentation around this? I am really struggling to find any...

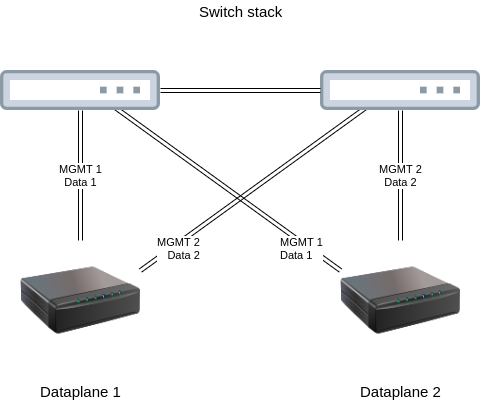

We're looking to set up a redundant system consisting of two data planes and a switch stack (amongst other things). If you see the diagram below;
What I was hoping to do is have something like the above, whereby the MGMT and Data ports of Dataplane 1 are in a LAG across the switch stack in to different physical switches, and the same for Dataplane 2. Those lines in the diagram may be a little confusing, they wouldn't be the LAGs, it would be;
Dataplane 1; LAG 1: MGMT 1 + MGMT 2 LAG 2: Data 1 + Data 2
Dataplane 2; LAG 3: MGMT 1 + MGMT 2 LAG 4: Data 1 + Data 2
Each LAG would be two physical ports on the separate switches.
I guess my question is, is this possible, sounds like it should be from your previous post, and what configuration do I need to do on the Dataplanes?
