How to configure İcx 7750 ports breakout

akbar_ali_7rp7w
New Contributor

6 REPLIES 6

michael_brado
Esteemed Contributor II
There are different FI version Stacking Guides under the ICX 7750 documents on our Support portal as a good starting point.

https://support.ruckuswireless.com/products/107-brocade-icx-7750-campus-switches

david_chavarria
Moderator
Moderator
Hello Akbar

To be able to configure a switch port for breakout, the switch must be in store-and-forward mode. The default is cut-through mode.

 To enable store-and-forward mode:

config t
store-and-forward
wr mem
exit
reload


To configure breakout on port 1/2/6 for example:

Note: Remove any configuration on the port before issuing

config t
breakout ethernet 1/2/6
wr mem
exit
reload


Verify your breakout configuration:

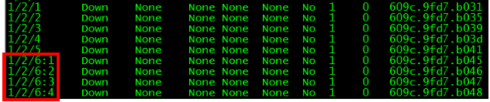

show interface brief

Image_ images_messages_5f91c459135b77e247a3a730_427560a6b43f0886d027d702253ada17_RackMultipart20190618729811jav-beacd0e1-ff6d-48cd-b652-00882f7ba0d7-142042669.PNG1560877582

Note: The new port numbers end with :1 to :4. This indicated which 10G port is broke out of the 40G port. From this point on, all ports will be referenced like 1/2/6:1 for all configuration purposes.

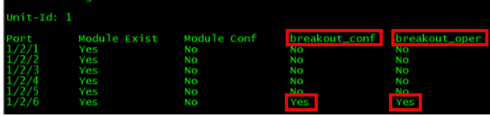

show breakout

Image_ images_messages_5f91c459135b77e247a3a730_f66d862d02489291d7c5d3a734fbf866_RackMultipart20190618116035gmr-f20ff51e-fc2b-469f-8b13-07c6bebcd227-2025084004.PNG1560877640


Your ports are ready to be configured and used.

Regards.

Is it possible to configure breakout on active optical cables on the rear stacking module or module 3?

https://docs.commscope.com/bundle/fastiron-08095-managementguide/page/GUID-AC5BB5DF-0FA8-4542-A260-2...

https://www.commscope.com/globalassets/digizuite/61722-ds-ethernet-optics-family.pdf

Please see above references for supported breakout operations and support. I believe E40G-QSFP-4SFP-AOCXXXX would be a 40Gb>4x10Gb active breakout cable. If you are still having issues, please open a support case (see my signature).



Ben Beck, RCNA, Principal Technical Support Engineer
