two mac addresses for each Ruckus AP on the LAN interface

ziv_l
New Contributor II
Why do I see  2 mac addresses for each Ruckus AP on switch ports ?
I expect only 1 mac address for each AP on the LAN interface.
ie:
VLAN 102      AP MAC e0:10:7f:08:e0:f0      switch port gi7      dynamic
VLAN 102      AP MAC e0:10:7f:08:e0:f3      switch port gi7      dynamic

Please advise.
Ziv
2 REPLIES 2

max_o_driscoll
Valued Contributor
Possibly related  to Ruckus APs having 2 or even 3 physical LAN ports depending on specific model.

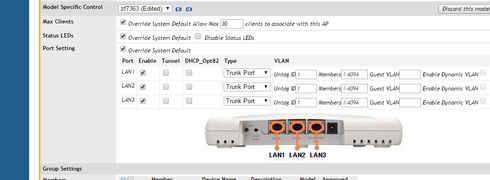

As in pic below...(in ZD GUI)

from configure
access points
access point groups
edit

My guess is that one of those tick boxes  will remove one of your entries (just make sure there is no cable attached)!

Image_ images_messages_5f91c41d135b77e24796ec63_4cfd683ac2a92fc4b9f01da8477e63f9_RackMultipart201506293498128fh-17cc29ab-dd07-4a95-8567-22eecb642de8-1996464782.jpg1435572130

ziv_l
New Contributor II
Well,
That is correct.
Thanks
