No power to access point

carlos_messe
New Contributor II

Good morning. I was following another thread with a similar (No PoE) issue. I used PuTTY to find the Router data and it looks like this:

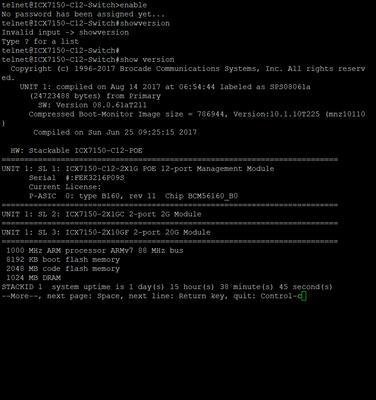

Screenshot 2023-03-21 080343.png

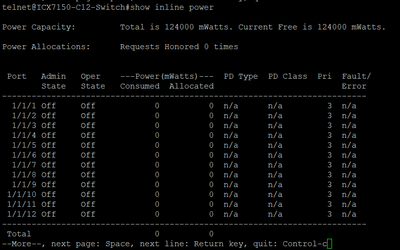

Screenshot 2023-03-21 080546_Inline Power.png

Screenshot 2023-03-21 080830_Inline Power Detail.png

 It appears that no power is going to the ports.

1 REPLY 1

Imran_ruckus
Moderator
Moderator

Hi @carlos_messe

Thank you for contacting Lennar Home Community.

Hope you are doing well!!!

Thank you for the detailed information you shared,

From the case description, I could understand that your PoE is in a disabled state and you’re unable to get the power to your Access Points.

As I can see from the pictures you shared, the PoE is in the disabled state on the Switch. By which the Access Points are unable to get the power.

To enable the PoE on the Switch, please perform the below commands from the CLI:

Switch>enable
No password has been assigned yet...
Switch#configure terminal
Switch(config)#interface ethernet 1/1/1 to 1/1/12
Switch(config-mif-1/1/1-1/1/12)#inline power

Also attaching a Screenshot as a reference:



Please let me know if you have any queries in this regard.

Thank you again.



Best regards,

Imran Sanadi

Lennar Home Community.
