SZ 3.6.2 and WLAN Group VLAN Override - greyed out

Greg_WiGuy
Contributor
Hi Gang,
I'm trying to figure out how to use the VLAN Override feature on a per WLAN basis under a given WLAN Group.  The feature is there but it seems to be 'greyed out' with the word Default and isn't modifiable.

I've searched through the SZ 3.6.2 Administrators guide to no end finding any mention of the VLAN Override feature anywhere - no mention of the feature under "Working with WLANs and WLAN Groups" when trying to comb through the sub articles manually.


6 REPLIES 6

sanjay_kumar
Contributor III
Hi,

We should be able to modify the VLAN of a particular SSID from a WLAN group.

The VLAN section should show as a number, not as "default".

Can you please provide us a screen shot of what you are seeing?

Greg_WiGuy
Contributor
Hi Sanjay,
Here's what I'm seeing

Image_ images_messages_5f91c451135b77e247a1db8b_e95cf2c204c0cfd65c9ba0d3f5a4b211_RackMultipart20200304126912uyn-b0353a6d-05a7-4064-b597-c260a797e493-1435243147.png1583324996

Greg_WiGuy
Contributor
Hi Sanjay,

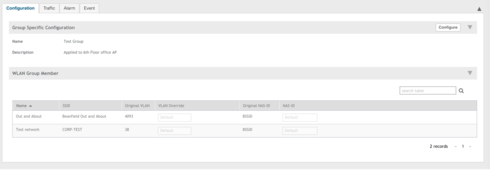

Here's what I'm seeing.  I'm unable to edit the section under VLAN Override or NAS-ID
Image_ images_messages_5f91c451135b77e247a1ddc0_422ed6406f77dbea627e667470380b5c_RackMultipart2020030432474e6d5-b975b5ae-f30c-4aad-8e1f-3a998f2d162c-92132361.png1583325097

sanjay_kumar
Contributor III
Hi,

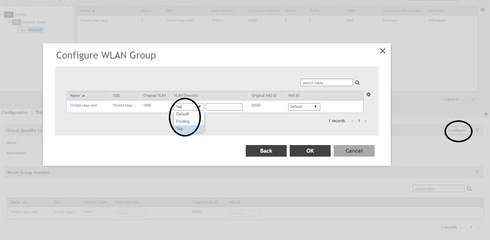

You have to click on Configure, at the right top on the Configuration section >> then you can see the VLAN Override option.
Below is the picture.

Image_ images_messages_5f91c451135b77e247a1ea6f_601817b2acf5892483e4b93e87257d50_RackMultipart2020030540606lner-893de8bb-cc28-4d16-8a3a-64c79d4593f6-816959531.png1583371370

You can also override the VLAN, on the individual WLAN if you select the WLAN >> Click on Next >> Configure >> Advanced options >> Access VLAN
