Downgrading Smart Zone 100 from to

New Contributor III
Hi Ruckus,

I have 2 Smart Zone controllers and I spent the whole day trying to downgrade-upgrade the - unsuccessfuly.

They work in cluster, one is leader and the other one is a follower.

I wanted to update them to the latest version however (5.1 or 5.2), however I tried following upgrade path and upgraded them to After that I tried upgrading it to newer version but no luck - there was a message that said it is unsupported (I double checked model of SZ, followed upgrade path, tried some other firmwares even from Smart Zone 100-D but no luck).

Now I want to downgrade them back to and I did not save any backup because I thought why would I need it since I know how to configure them back in cluster and that is all I need before connecting APs.

Any ideas what should I do? I am worried will all APs models be supported if that firmware version stays on Smart zone controllers. I really do not know why I can not upgrade it.

RUCKUS Team Member
Hi Milan,

The only way to gracefully (keep configuration) downgrade an SZ node or cluster is to restore a cluster backup taken prior to upgrade.   This is why saving a cluster backup prior to upgrading is highly recommended and suggested when you initiate an upgrade.

You need to verify the upgrade path for each new version to determine if you can directly upgrade to the new version:

Upgrade from 3.6, 3.6.1 or 3.6.2 to 5.2 is supported, but all saved statistics will be purged (not configuration)

The only other way to downgrade a cluster would be to factory default each node.  There are two steps in setting up a fresh install.  The first setup configures the IP addresses and network and can be done from console, CLI or WEB-UI  The second step creates or joins the cluster.  If you do the second setup from the WEB-UI you will see a button on the bottom of the create/join page that permits you to upgrade or downgrade to any version without checking existing version.  This allows adding a new node to an existing cluster by matching the version of the existing cluster.

Of course - if you go this route you will have to re-create your configuration from scratch unless you saved a configuration backup for the version you wish to run.

Since you have a cluster you will essentially breaking the cluster and upgrade/downgrade each node.  The first node you will create a cluster and the second node you will be joining the existing cluster.  You can configure the first node and then join the second node which copies the configuration or create the cluster and configure the system as a cluster.

Sorry for the inconvenience this has caused


Hi Albert,

Thank you for fast reply!

Albert, I already factory reseted each node, and configured cluster again so that is not a problem. The problem is that even if I factory reset node, the firmware will stay at the same version (last version that was on the device).

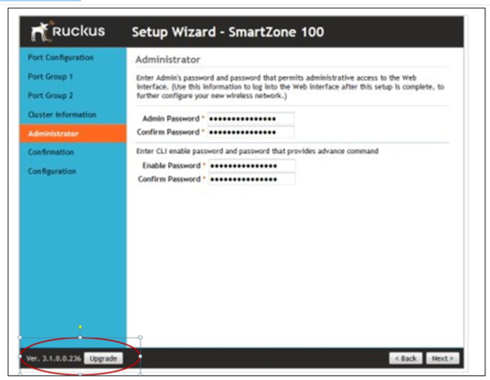

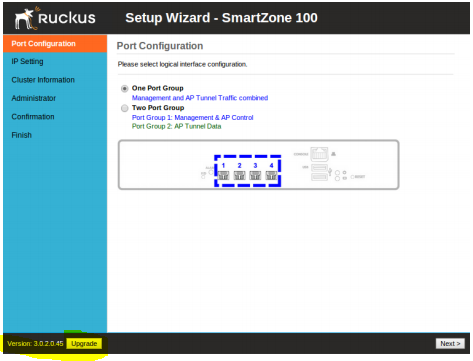

You will need to factory default them again and then when you run the second setup (cluster create or join) you will see the upgrade button on the bottom ... this is an unconditional upgrade that allows you to install any version:

Image_ images_messages_5f91c47e135b77e247ab8fbd_e5cb888a689e3384f00ae948bc265f47_RackMultipart202002181010031hs-f629240f-7443-47db-9263-2d9603f78fa3-1458496139.png1582056541

Image_ images_messages_5f91c47e135b77e247ab8fbd_4b6f999c353cb0f45205a6b681615ee5_RackMultipart20200218106571t3h-0751783d-efaa-4229-a06a-a8e8a2404a1b-2053203334.png1582056574

I have not setup a 5.2 system but as far as I know this feature should still exist.

I hope this helps.

Hi Albert,

So if I understood you correctly, after factory default I will be able to upgrade to - for example 5.1?
