Connection stability on tvs/iPhones

rjohns503

Hello I am running a 7150 switch and two r510 access points with a Comcast combo modem router. Devices are current on firmware.

iPhones and tvs have slow connection and often drop. My laptop works fine from what I can tell. The speeds are slow usually max out at 400mbs. I have 800mbs service.

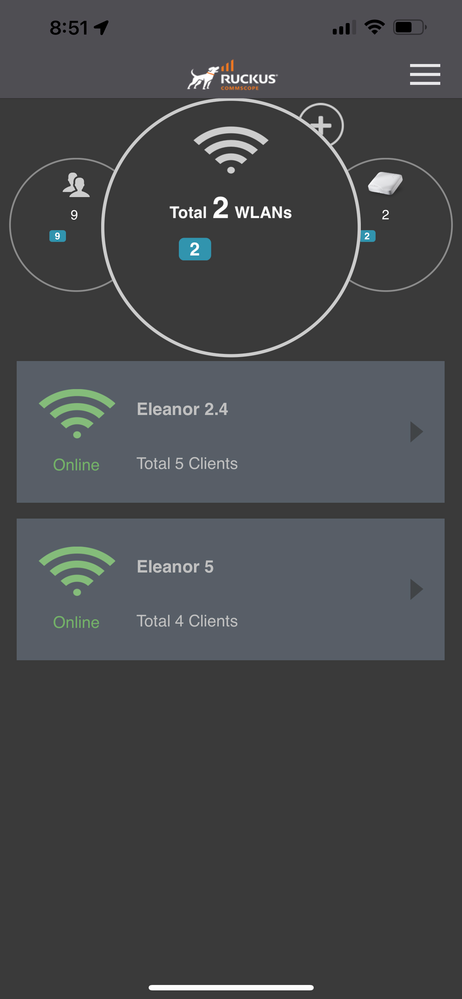

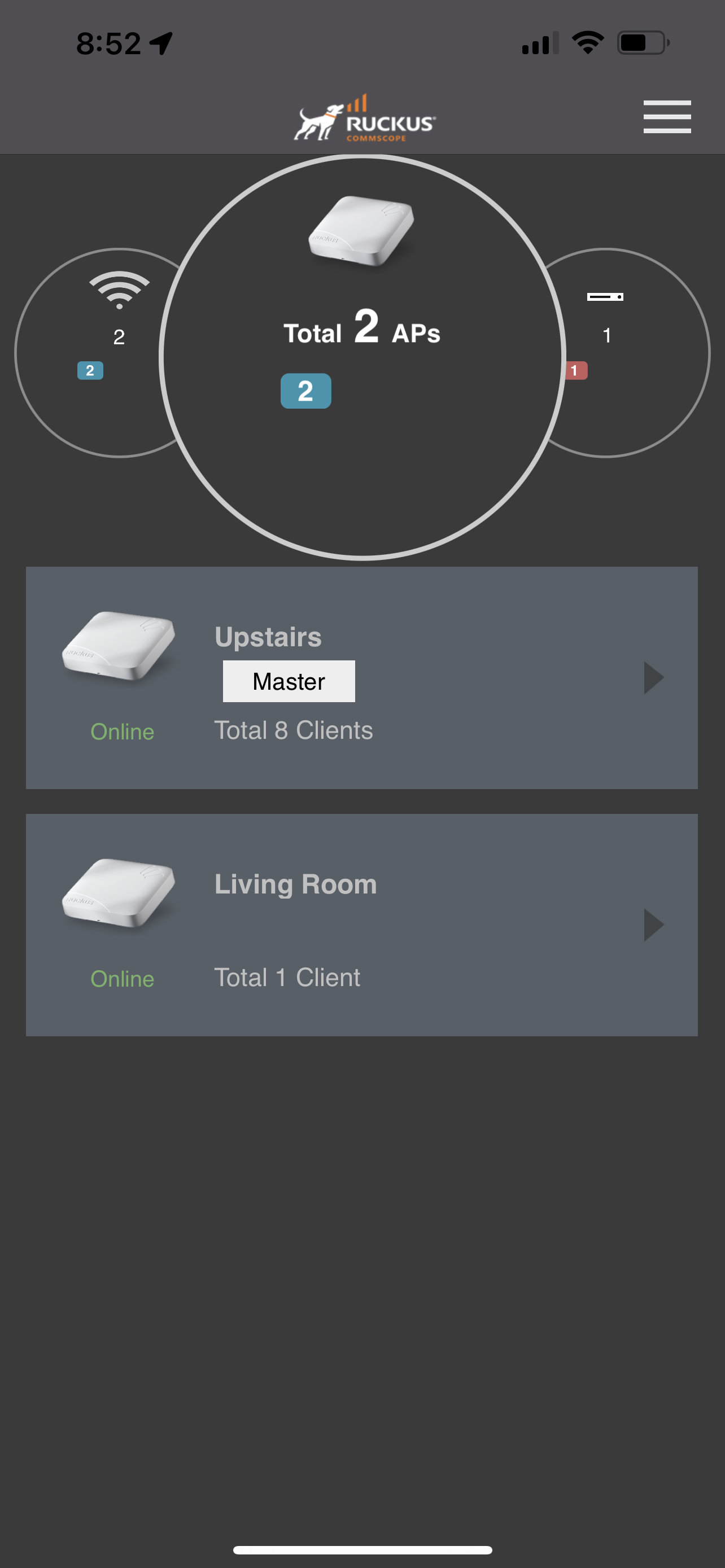

Any suggestions? See screenshots.

Find more posts tagged with

Accepted answers

imran.sanadi@commscope.com

Hi @rjohns503

Thank you for the response and the information.

This issue may happen when the Switch runs on the Routing code. The Switch should run on the Switching code to avoid these issues for Lennar home users. If the Switch boots up on the other partition (Due to a power outage may be) which may be running on a ‘Routing Code’ results in causing this issue.

You can take Console access to the switch in order to verify, if the switch is able to connect properly to Access Points or if it has a ‘Routing Code’ issue which happens due to power outages most of the time, this is a known issue for Lennar home users.

An identifier of this problem is that it comes out as Switch-Router in the unleashed dashboard.

There we are going to see 2 important things the

-MAC address: Physical address of the device this never changes

- An IP address is a unique address (logical) that identifies a device on the internet or a local network like your home (this can change and may not be the same as the one shown on the dashboard)

There are multiple ways to fix this issue as described in below steps:

Please follow the below steps:

1. To fix this issue, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Devices-IP-address-using-free-applications/td-p/47027

2. Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

How to remotely access to 'ICX 7150-C12P' or 'access points' "Network devices":

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-ICX-7150-12P-or-access-points-quot/td-p/47388

If you can access the Command line should look like this:

ICX7150-C12 Router>

3. Here is a quick guide for understanding how to fix the 'routing code issue' however, you only need to run the following commands once you are on the command line 'CLI'

Note: Hit Enter to accept each command

enable

show version

copy flash flash secondary

boot system flash secondary yes

(Please share the output screenshot of the ‘show version’ command to check your current version of your Switch running on)

Example:

VIDEO LINK AS REFERENCE: https://www.youtube.com/watch?v=Eem1IBgYaWc

ICX7150-24P Router>enable (hit enter to accept the command)
ICX7150-24P Router#copy flash flash secondary (hit enter to accept the command and wait: until the flash finished)
ICX7150-24P Router#boot system flash secondary yes (hit enter to accept the command: the switch will reboot)

There are Two ways to fix this issue:

I) How to Fix Routing code issues on Lennar Home users via CLI

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issues-on-Lennar-Home-users/td-p/47305

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-solve-the-routing-code-issue-in-your-ICX7150-Switch/td-p/47335

II) Or WEB access option

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issues-on-Lennar-Home-users-via-Web-GUI/m-p/47959#M1998

4. If access via IP address is not possible here is a guide on how to access to the Switch via console (cable access between your PC to the ICX 7150-C12P) in this case we need a USB type C to USB standard or Console cable Rj45 to USB.

How to console in the ICX-7150-C12P

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-console-in-the-ICX-7150-12c-using-a-Windows-Machine/td-p/46759

Once you are logged in to the ICX-7150-C12P please follow and perform the same commands that are on point '3'

Please let me know if you have any queries in this regard.

Best regards,

Imran Sanadi

Lennar Home Community.

All comments

imran.sanadi@commscope.com

Hi @rjohns503

Greetings!!!

Thank you for contacting Lennar Home Community.

Hope you are doing well!!!

From the description, I could understand that your ICX-7150-C12P Switch, and R510 APs have slow internet speeds.

Could you also please let us know?

1. From when are you facing this issue or is it a new installation?

2. Was there any power outage or power spike recently?

3. Have you checked that the Internet Speed from your ISP (Internet Service Provider) is working fine or you are getting the expected speeds from your ISP? (You could check this by connecting to your local router Wi-Fi or from an ethernet cable from Router to a laptop/PC)

Please let us know the answers to the above queries or if you have any queries in this regard.

Thank you again.

Best regards,

Imran Sanadi

Lennar Home Community.

rjohns503

Hey I’ve had these devices for a few years in my house just started using them last week. The signal from Comcast is strong that’s not the issue. No power outages that I know of.

imran.sanadi@commscope.com

Hi @rjohns503

Thank you for the response and the information.

An identifier of this problem is that it comes out as Switch-Router in the unleashed dashboard.

There we are going to see 2 important things the

-MAC address: Physical address of the device this never changes

- An IP address is a unique address (logical) that identifies a device on the internet or a local network like your home (this can change and may not be the same as the one shown on the dashboard)

There are multiple ways to fix this issue as described in below steps:

Please follow the below steps:

1. To fix this issue, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Devices-IP-address-using-free-applications/td-p/47027

2. Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

How to remotely access to 'ICX 7150-C12P' or 'access points' "Network devices":

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-ICX-7150-12P-or-access-points-quot/td-p/47388

If you can access the Command line should look like this:

ICX7150-C12 Router>

3. Here is a quick guide for understanding how to fix the 'routing code issue' however, you only need to run the following commands once you are on the command line 'CLI'
