code flash empty

wanji

hi ...i already want to try recover flash using SPS08090f.bin...but after to do system-manifest the tftp server no response..ping to the server got reply is alive...and then my code flash empty how to add again ya using tftp server

my setup :

setenv ip addr 192.168.1.5

setenv serverip 192.168.1.4

setenv netmask 255.255.255.0

setenv gatewayip 192.168.1.254

setenv image_name SPS08090f.bin

update primary

Find more posts tagged with

Accepted answers

All comments

Chandini

Hi Team

Thank you for reaching us.

From the details I suppose you are trying to flash the image to the switch. I have mentioned link below which has steps you can use to recover the switch.

Software Recovery Link:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-a-Software-recovery-on-an-ICX7150-switch/td-p/47483

I hope this helps

Thanks

wanji

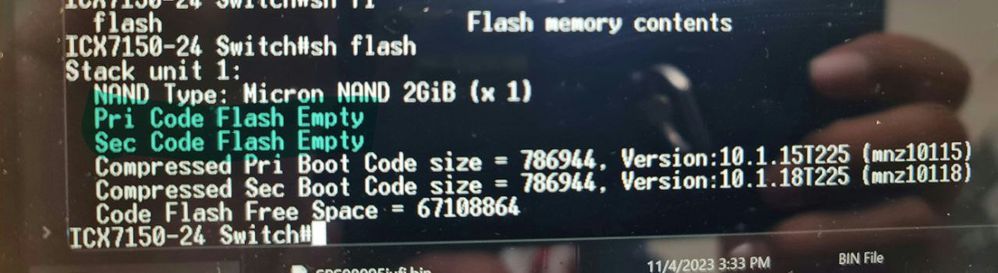

hi..i already do this...ALL IS OK...but refer to image ...code flash empty..how to insert ya?

Chandini

Hi Wanji

Ack and Noted. If the switch is booting up correctly then it should display those details. Would you be able to share output of below commands

Show version
Show run

Also could you please let me know if you are from Lennar Homes ?

Thanks

wanji

hi bro..i'm not from lennar homes....below are pictures of sh run and sh version

sh version :

sh run :

Chandini

Hi Wanji

Ack and Noted. From the version details looks like switch is running 8090d switch code. I have mentioned a link below using USB method to upgrade the switch or you can re flash the same code and check if you can see flash image populate. Please try the below procedure in the link and let me know if that helped fixing your issue.

Upgrade using console:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-7150-C12P-using-a-USB-flash-drive/td-p/46781

Thanks

wanji

ok thnks..later i will inform u..coz today im not working

Chandini

Hi Wanji

Ack and Noted. Please feel free to post if there are any concerns.

Thanks
