Access-Points have become unstable

elmoritz

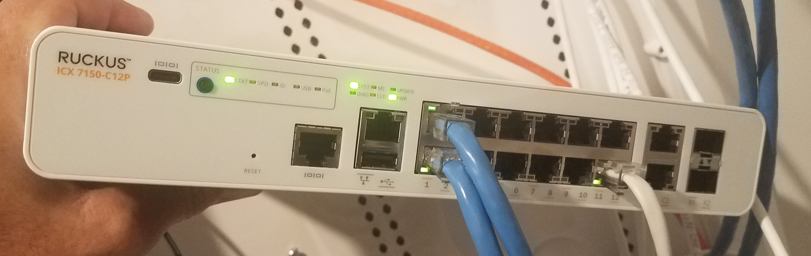

We recently experienced a brief power outage in our community, and since then, the Ruckus access points have become unstable. Despite all the access points showing green lights, occasionally the 5Mhz light will be yellow, we are encountering frequent internet interruptions and slow speeds. I have all WAN connections connected as suggested in other posts. On the RUCKUS ICX-7150-C12P switch all status lights are green except USB is yellow.



When I logged into the switch I wasn't able to run all cmds suggested in other posts:

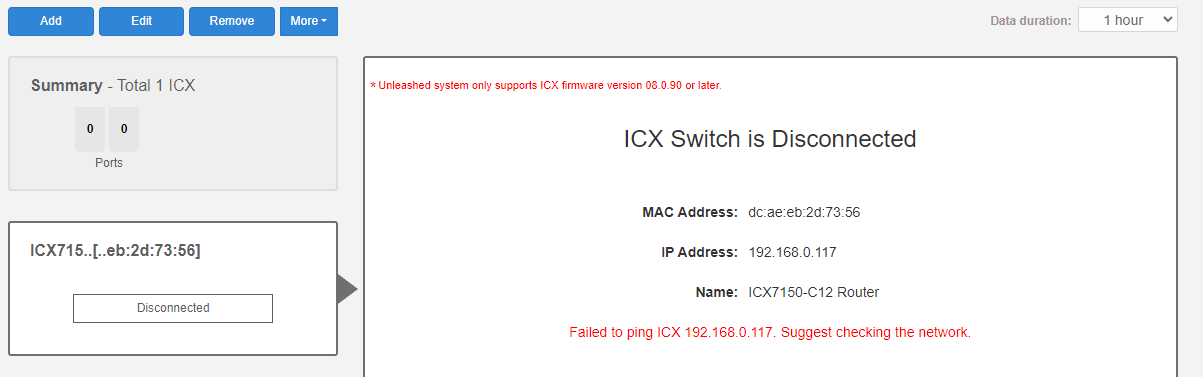

I also logged into the Ruckus Dashboard and see this:

I am not able to access this IP address: 192.168.0.117 via  browser, telnet, ssh and does not appear in "Advance IP Scanner" list of IP addresses.

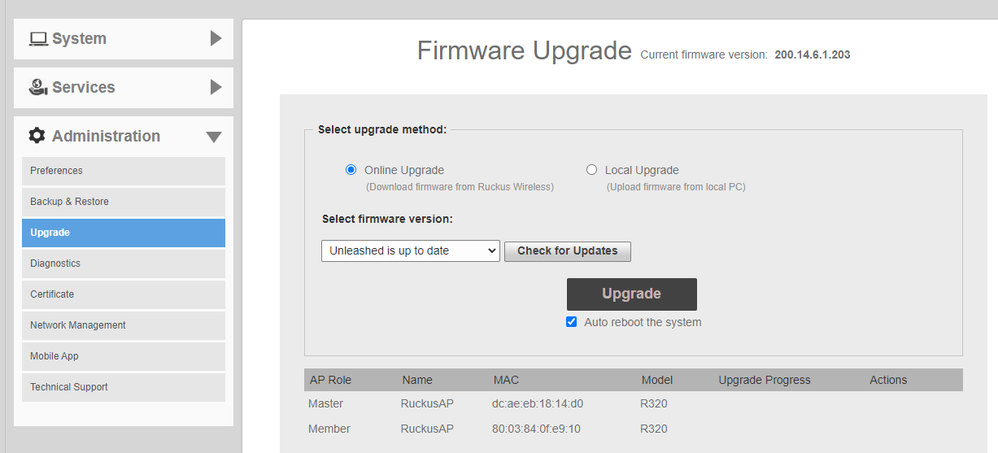

I believe I found the version information here:

Appreciate your assistance on this,

Regards,
Eric

Jayavidhya

Hi @elmoritz



Based on the information you have shared it seems like the internet issue is stable while you are connecting to the ISP router, but the issue persists while you are connecting to the access points or the switch, it looks like your Switch (ICX7150 Switch) may be booting from the secondary partition ( Note: Secondary partition contains the routing code)  which is causing the bad connectivity issues.



How to Fix Routing code issues on Lennar Home users via CLI

Guide#1 for CLI:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issues-on-Lennar-Home-users/td-p/47305

Guide#2 for CLI:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-solve-the-routing-code-issue-in-your-ICX7150-Switch/td-p/47335



How to Fix Routing code issues on Lennar Home users via Web GUI.

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Fix-Routing-code-issues-on-Lennar-Home-users-via-Web-GUI/td-p/47959



Note:  if you have access to the Unleashed Dashboard and the Switch can be seen from there, it may look like the following image, ICX7150-C12-Router instead of ICX7150-C12-Switch, now before starting the steps of the guide, I will advise you to cable the computer directly to the Switch, since you will have a better connectivity than if you connect via wireless.





After fixing the issue of the Switch booting from the wrong partition, please perform an upgrade to the code 08095g UFI and upgrade both partitions primary and secondary with the switching code file named SPS08095gufi.bin, take into consideration that is the Switch is running a code lower than 08080 you need to upgrade twice, from the code you are to 08080f and then the recommended code 08095g UFI.



How to Upgrade a Switch ICX-7150-C12P using a USB flash drive

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-7150-C12P-using-a-USB-flash-drive/td-p/46781



How to upgrade a Switch ICX7150-C12P via TFTP

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-Upgrade-a-Switch-ICX-7150-C12P-via-TFTP/td-p/47187



Upgrade a switch via Web GUI (ICX7150 Switch)

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-perform-an-Upgrade-via-Web-GUI-ICX7150-Switch/td-p/48200





Please let us know if you have any queries in this regard.





Best regards,

Jayavidhya

Lennar Home Community
