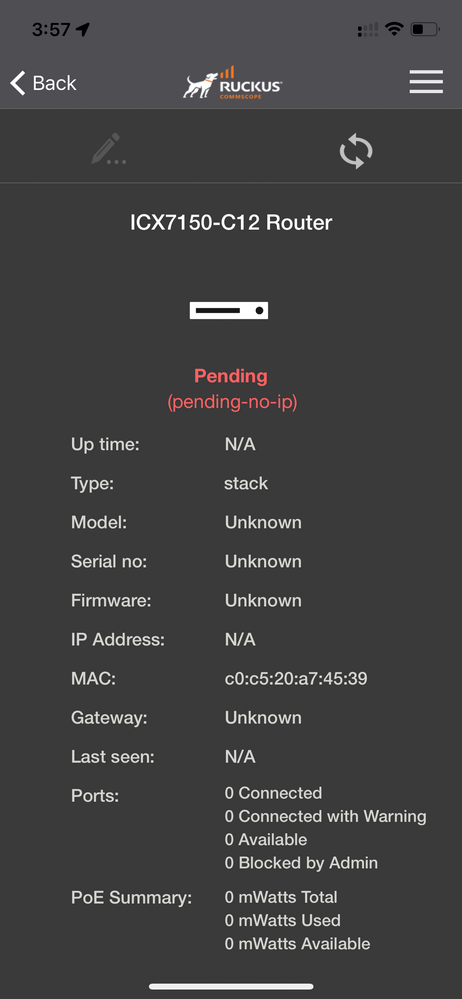

Pending (pending-no-ip)

RL88

Had a brief power outage and this is all I’m getting. I’ve unplugged for a minute and plugged it back in as well as put a pin in the reset button to reset it and it doesn’t seem to resolve it. Tried calling Ruckus customer service and they don’t offer phone support any longer. Please help. Thanks in advance for any advice or a solution.

Find more posts tagged with

Accepted answers

All comments

imran.sanadi@commscope.com

Hi @RL88

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

Hope you are doing well!!!

Thank you for the detailed information you shared.

As per the case description, I could understand that your RUCKUS setup is not working after a power outage.

Could you please let us know the answers to the below queries to assist you better?

1. On your switch while it's plugged into the outlet, do you see any lights on? (Amber or green) Please let us know which lights are on. (Please refer to the below picture and share a picture of the same showing the light status and cable connections)

2. May I know how many Access Points are connected to the Switch? Could you please let me know the light status on the Access Points? Any of these lights are on (Please refer to the below picture and share a picture of the same)

Please help us with pictures of your ICX-7150-C12P Switch showing the status of the lights. Also, light the status of Access Points.

Before uploading the photos please log in to the RUCKUS account and you can upload the image.

Please let us know the answers to the above queries or if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

RL88

The orange cable comes from the AT&T BGW320 fiber router box.

2 Access Points:

imran.sanadi@commscope.com

Hi @RL88

Greetings!!!

Thank you for the response and the information you shared.

As per the light status and cable connections switch is in the normal state.

This issue may happen when the Switch runs on the Routing code (SPR). The Switch should run on the Switching code (SPS) to avoid these issues for Lennar home users. If the Switch boots up on the other partition (Due to a power outage/power spike) which may be running on a ‘Routing Code’ results in causing this issue. To check the same please follow the below process.

Please follow the below steps and help us with the queries,

1. To check this issue, we must identify the ‘current’ IP address assigned by your local router to the switch ICX-7150-C12P

I will leave you a guide on how to perform an IP scanner on your local network to identify the switch IP address very easily.

How to find my Ruckus “Devices IP address” using free applications:

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-find-my-Ruckus-Devices-IP-address-using-free-applications/td-p/47027

2. Once we identify the IP address of the switch proceed to access remotely to the device “Command Line”

How to remotely access to 'ICX 7150-C12P' or 'access points' "Network devices":

https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-remotely-access-to-ICX-7150-12P-or-access-points-quot/td-p/47388

If you can access the Command line should look like this:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

Please enter the below commands once you log in to CLI and share the output.

Note: Hit Enter to accept each command

enable

show version

show flash

Please share the output of the above commands or share the screenshots if stuck at any step or error (if any) and let me know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

RL88

Screenshot 2023-06-19 at 2.15.36 PM.png

So this is screenshot after the scan.

I tried to access CLI but both applications listed in the link cannot be downloaded onto my MacBook Pro. They are only for Windows.

Now what?

Getting very frustrated...

RL88

Screenshot 2023-07-05 at 3.29.04 PM.png

imran.sanadi@commscope.com

Hi @RL88

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

Hope you are doing well!!!

Thank you for the information you shared.

May I please know if you have a Windows laptop with you?

The dashboard you are seeing on the web browser is of Unleashed and not of the ICX-7150-C12P Switch.

You should see the Switch Dashboard as shown in the below screenshot to confirm it’s a Switch IP Address.

Please check the other IP Addresses from the IP scan results, by the name of Ruckus Wireless Or Brocade Communications to confirm the IP address of the Switch and try to access it.

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

RL88

1.) I do not have access to a Windows computer

2.) I've found the IP of the switch and when I type it into my browser it takes me to the Unleased log in page.

imran.sanadi@commscope.com

Hi @RL88

Thank you for the response.

Could you please share a screenshot of the IP Scan results?

Please let me know if you have any queries in this regard.

Thank you again for your patience.

Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.
