Speed is crippled!!!

dtsteinb

I just upgraded to the latest version and for a day I was getting the correct speed. AGAIN, I cant break 100mb/s on my downstream. I have 200mb/s

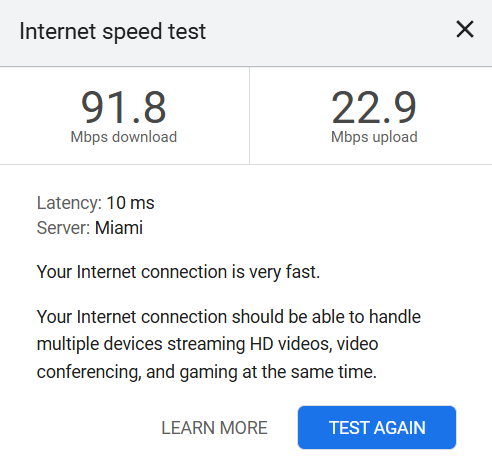

This is when connected to Ruckus

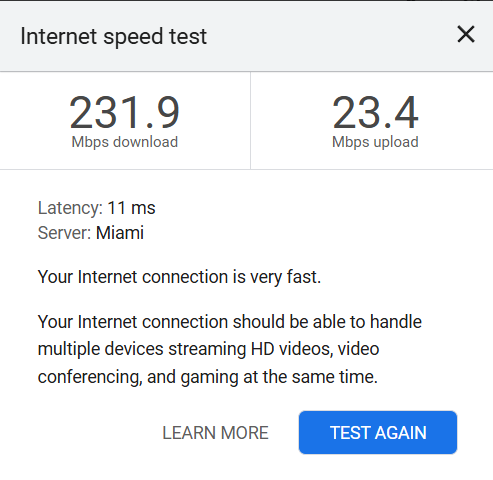

This is when connected to xfinity router

Why is the Ruckus so much slower? It like crippling the speed and I dont know why.

=~=~=~=~=~=~=~=~=~=~=~= PuTTY log 2025.08.19 09:19:16 =~=~=~=~=~=~=~=~=~=~=~=
telnet@ICX7150-C12-Switch>en
No password has been assigned yet...
telnet@ICX7150-C12-Switch#sh version
Copyright (c) Ruckus Networks, Inc. All rights reserved.
UNIT 1: compiled on May 6 2022 at 23:24:50 labeled as SPS08095g
(31457280 bytes) from Primary SPS08095g.bin (UFI)
SW: Version 08.0.95gT211
Compressed Primary Boot Code size = 786944, Version:10.1.24T225 (mnz10124)
Compiled on Thu Apr 21 06:08:52 2022

HW: Stackable ICX7150-C12-POE
==========================================================================
UNIT 1: SL 1: ICX7150-C12-2X1G POE 12-port Management Module
Serial #:FEK3845P2YG
Software Package: BASE_SOFT_PACKAGE
Current License: 2X1G
P-ASIC 0: type B160, rev 11 Chip BCM56160_B0
==========================================================================
UNIT 1: SL 2: ICX7150-2X1GC 2-port 2G Module
==========================================================================
UNIT 1: SL 3: ICX7150-2X10GF 2-port 20G Module
==========================================================================
1000 MHz ARM processor ARMv7 88 MHz bus
8 MB boot flash memory
2 GB code flash memory
1 GB DRAM
--More--, next page: Space, next line: Return key, quit: Control-c                                                                  STACKID 1 system uptime is 2 day(s) 23 hour(s) 11 minute(s) 9 second(s)
The system started at 00:18:57 GMT+00 Sat May 07 2022

The system : started=cold start

telnet@ICX7150-C12-Switch#exit
telnet@ICX7150-C12-Switch>

Find more posts tagged with

Accepted answers

All comments

imran.sanadi@commscope.com

Hi @dtsteinb

Greetings!!!

Thank you for reaching out to the RUCKUS Lennar Home Community.

We appreciate your patience and understanding as we work to resolve the issues you are experiencing with your RUCKUS setup.

Based on the information provided, it appears that you are encountering internet speed issues via RUCKUS devices.

We apologize for any inconvenience this has caused and are committed to assisting you promptly.

To better assist you, could you please provide the following information:

1. Can you confirm if your RUCKUS setup was previously operational, and if there were any power outages before the issue began?
2. When your switch is connected to the outlet, do you observe any illuminated lights (amber or green)? Kindly describe which lights are visible. Additionally, please provide a photo showing the status of the lights and the full switch panel with cable connections to the switch ports.

Please log in to your RUCKUS Account before uploading these photos/screenshots.

Please help me with the above queries, and should you have any further questions or concerns, feel free to reach out.

We appreciate your cooperation and look forward to resolving this matter for you promptly.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

dtsteinb

The unit has been operational but the speeds have always seem crippled. After I did the upgrade the speeds were fine for a day and then it drops back down to what the screenshots in the previous post show. I have take a picture but it is hard to see. All the lights are Green.

imran.sanadi@commscope.com

Hi @dtsteinb

Thank you for the response and the information.

As per the light status of the RUCKUS ICX-7150-C12P Switch, it is in a normal state.

To check further, please share the output of the commands below.

enable

show flash

show inline power

show inline power detail

show interface brief

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

dtsteinb

Here is the output of the above commands

=~=~=~=~=~=~=~=~=~=~=~= PuTTY log 2025.08.19 15:08:30 =~=~=~=~=~=~=~=~=~=~=~=

telnet@ICX7150-C12-Switch>en

No password has been assigned yet...

telnet@ICX7150-C12-Switch#sh flash

Stack unit 1:

NAND Type: Micron NAND 2GiB (x 1)

Compressed Pri Code size = 31457280, Version:08.0.95gT211 (SPS08095g.bin)

Compressed Sec Code size = 31457280, Version:08.0.95gT211 (SPS08095g.bin)

Compressed Pri Boot Code size = 786944, Version:10.1.24T225 (mnz10124)

Compressed Sec Boot Code size = 786944, Version:10.1.24T225 (mnz10124)

Code Flash Free Space = 1168490496

telnet@ICX7150-C12-Switch#show inline power

Power Capacity: Total is 124000 mWatts. Current Free is 86200 mWatts.

Power Allocations: Requests Honored 12 times

Port Admin Oper ---Power(mWatts)--- PD Type PD Class Pri Fault/

State State Consumed Allocated Error

-----------------------------------------------------------------------------

1/1/1 On On 3400 15400 2P-IEEE Class 3 3 n/a

1/1/2 On On 3400 15400 2P-IEEE Class 3 3 n/a

1/1/3 On On 2400 7000 2P-IEEE Class 2 3 n/a

1/1/4 On Off 0 0 n/a n/a 3 n/a

1/1/5 On Non-PD 0 0 n/a n/a 3 n/a

1/1/6 On Off 0 0 n/a n/a 3 n/a

1/1/7 On Off 0 0 n/a n/a 3 n/a

1/1/8 On Non-PD 0 0 n/a n/a 3 n/a

1/1/9 On Off 0 0 n/a n/a 3 n/a

1/1/10 On Non-PD 0 0 n/a n/a 3 n/a

1/1/11 On Non-PD 0 0 n/a n/a 3 n/a

1/1/12 On Non-PD 0 0 n/a n/a 3 n/a

-----------------------------------------------------------------------------

Total 9200 37800

--More--, next page: Space, next line: Return key, quit: Control-c

telnet@ICX7150-C12-Switch#show inline power detail

Power Supply Data On unit 1:

++++++++++++++++++

Power Supply Data:

++++++++++++++++++

Power Supply #1:

Max Curr: 2.3 Amps

Voltage: 54.0 Volts

Capacity: 124 Watts

PoePower: 124 Watts

POE Details Info. On Unit 1 :

General PoE Data:

+++++++++++++++++

--More--, next page: Space, next line: Return key, quit: Control-c                                                                  Firmware

Version

----------------

02.1.8 Build 004

Hardware

Version

----------------

V2R4

Device HW version : 0:V2R4 1:V2R4

Device Temperature(deg-C) : 0:56 1:60

Device Status : 0:Good 1:Good

Cumulative Port State Data:

+++++++++++++++++++++++++++

#Ports #Ports #Ports #Ports #Ports #Ports #Ports

Admin-On Admin-Off Oper-On Oper-Off Off-Denied Off-No-PD Off-Fault

-------------------------------------------------------------------------

12 0 3 9 0 9 0

--More--, next page: Space, next line: Return key, quit: Control-c

Cumulative Port Power Data:

+++++++++++++++++++++++++++

#Ports #Ports #Ports Power Power

Pri: 1 Pri: 2 Pri: 3 Consumption Allocation

-----------------------------------------------

0 0 12 9.300 W 37.800 W

telnet@ICX7150-C12-Switch#shw ow interface brief

Port Link State Dupl Speed Trunk Tag Pvid Pri MAC Name

1/1/1 Up Forward Full 1G None No 1 0 d4c1.9e87.9ce2

1/1/2 Up Forward Full 1G None No 1 0 d4c1.9e87.9ce3

1/1/3 Up Forward Full 1G None No 1 0 d4c1.9e87.9ce4

1/1/4 Down None None None None No 1 0 d4c1.9e87.9ce5

1/1/5 Up Forward Full 100M None No 1 0 d4c1.9e87.9ce6

1/1/6 Down None None None None No 1 0 d4c1.9e87.9ce7

1/1/7 Down None None None None No 1 0 d4c1.9e87.9ce8

1/1/8 Up Forward Full 100M None No 1 0 d4c1.9e87.9ce9

1/1/9 Down None None None None No 1 0 d4c1.9e87.9cea

1/1/10 Up Forward Full 100M None No 1 0 d4c1.9e87.9ceb

1/1/11 Up Forward Full 100M None No 1 0 d4c1.9e87.9cec

1/1/12 Up Forward Full 100M None No 1 0 d4c1.9e87.9ced

1/2/1 Down None None None None No 1 0 d4c1.9e87.9cef

1/2/2 Down None None None None No 1 0 d4c1.9e87.9cf0

1/3/1 Down None None None None No 1 0 d4c1.9e87.9cf1

1/3/2 Down None None None None No 1 0 d4c1.9e87.9cf2

mgmt1 Down None None None None No None 0 d4c1.9e87.9ce2

telnet@ICX7150-C12-Switch#  exit

telnet@ICX7150-C12-Switch>

Just curious why all ports are not Foward Full 1G
