Ruckus Lennar home configuration help

mshrivas

Hi,

I recently moved to a Lennar pre-owned town house (built year 2021). It has ruckus network system (switch + 3 APs) that I've been trying to configure but couldn't do so far. The home internet is provided by AT&T.

Ethernet switch: ICX-7150-C12P

Access point: R510 series

I didn't do any factory reset yet, so just wanted to share the status of switch and APs before performing reset. From unleashed app or web, I cannot find configure.xxx ssd. Please let me know which device needs reset.

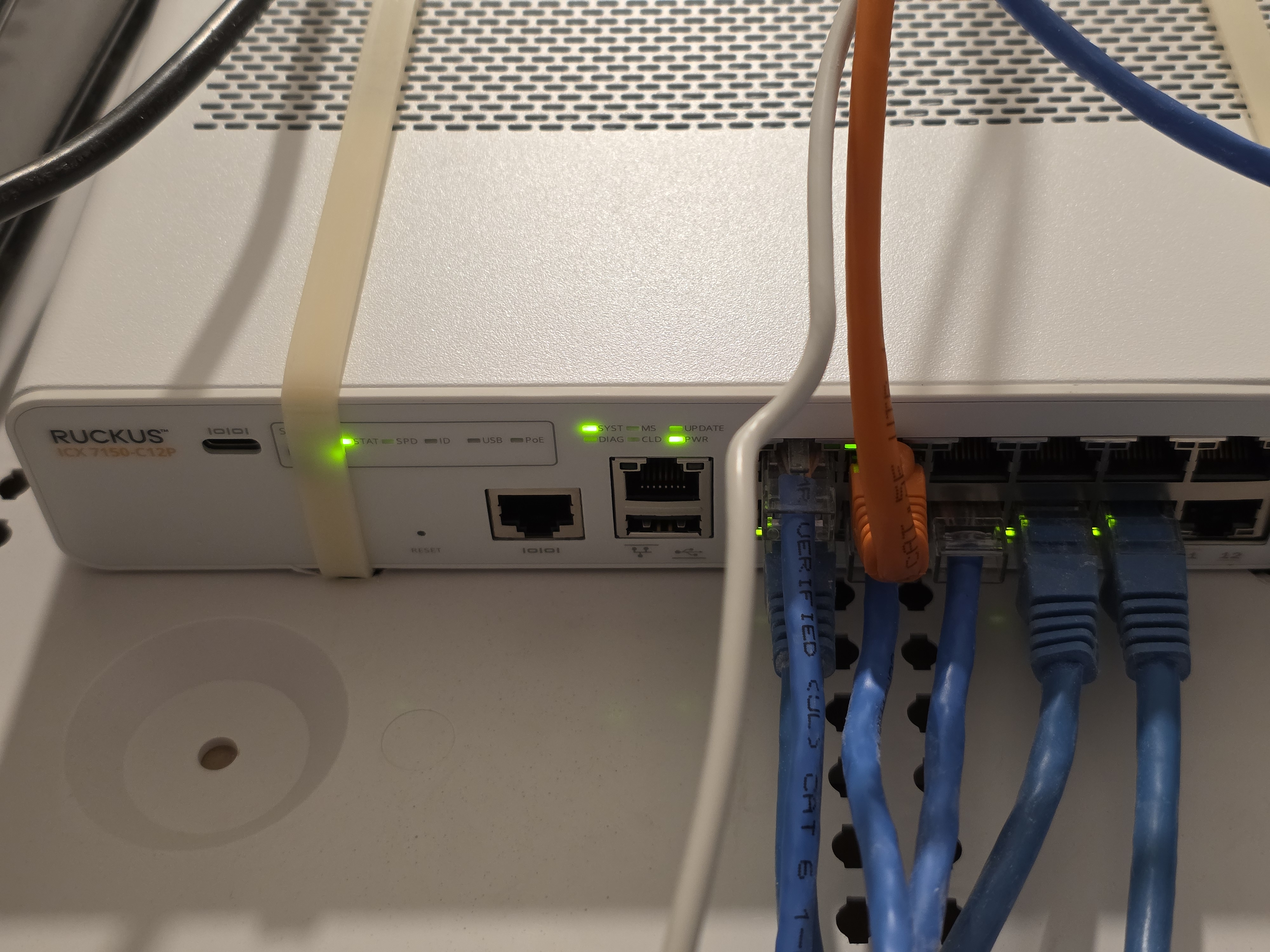

switch:

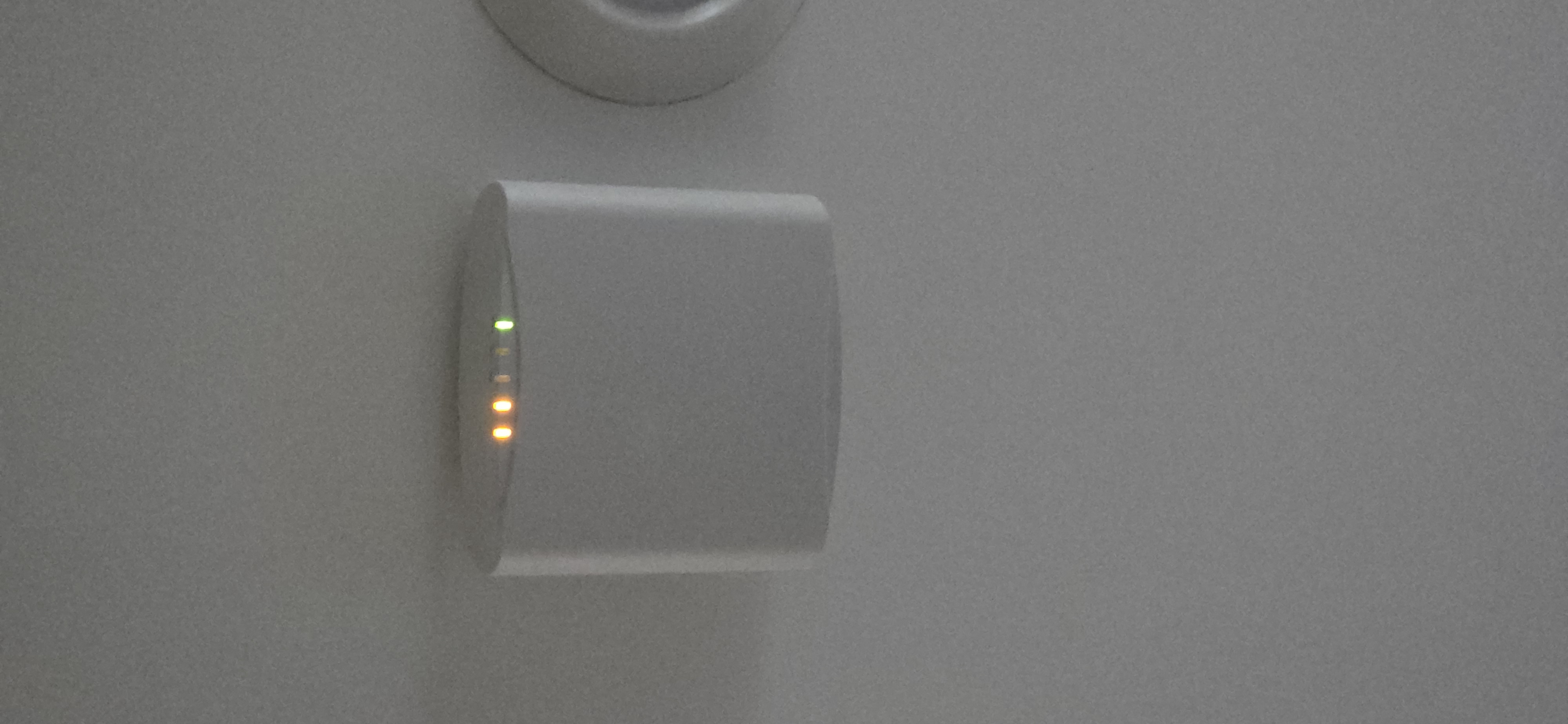

2nd Floor AP:

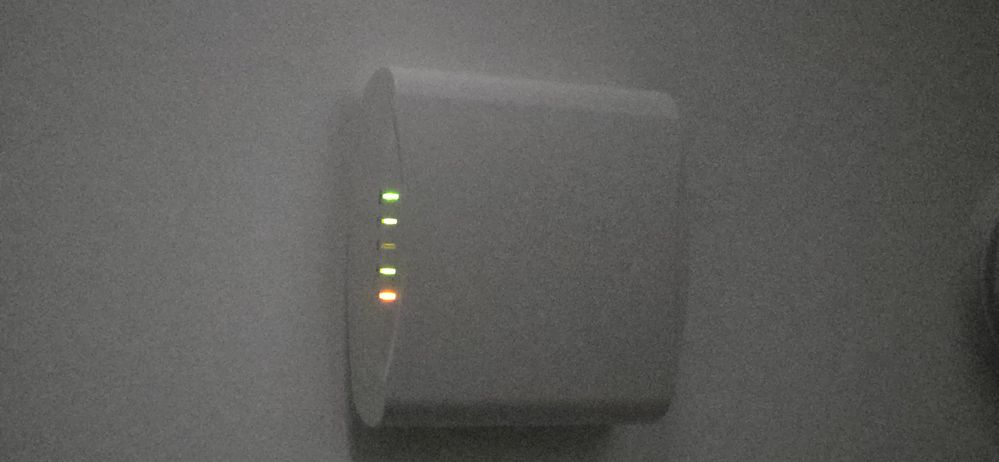

1st floor AP:

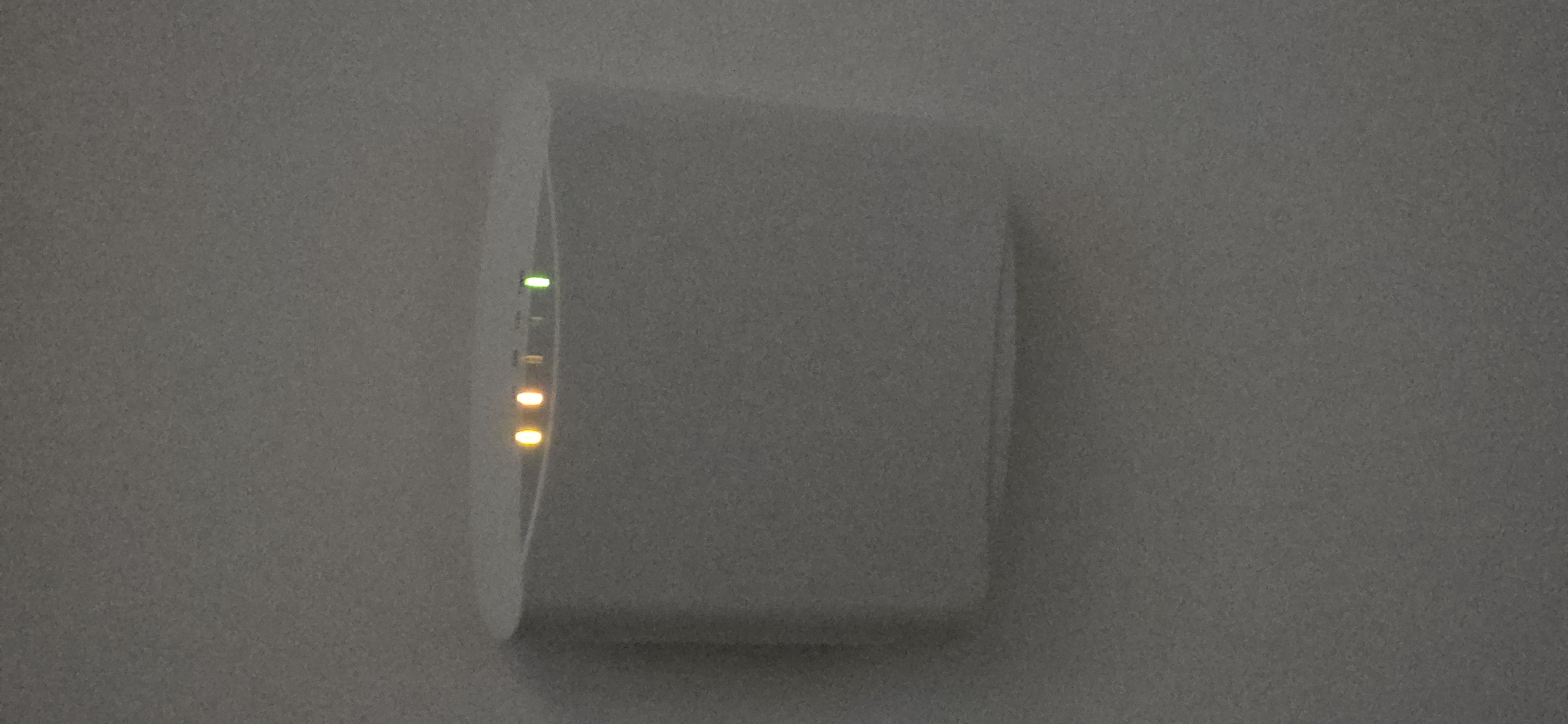

ground floor AP:

Find more posts tagged with

Accepted answers

All comments

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!!!

Thank you for reaching out to the RUCKUS Lennar Home Community.

We appreciate your patience and understanding as we work to resolve the issues you are experiencing with your RUCKUS setup.

Based on the information provided, it appears that you need assistance in setting up the RUCKUS devices in your recently moved Lennar Home.

From the pictures you shared, I see your connection and light status of the Switch and Access Points are normal. If you do not have login information, you can proceed with Step 7 in the article below.

Please refer to the mentioned RUCKUS Lennar Knowledge Base self-help article on RUCKUS Lennar Home devices Connectivity Setup and Configuration Guidelines.

/kb/articles/12-ruckus-lennar-home-devices-connectivity-setup-and-configuration-guidelines

Note: As you have 2 R510 Access Points in your setup, remove the cables of any TWO Access Points from the RUCKUS Switch Ports, and perform the factory reset only on the ONE connected access point. Once you complete it, connect the unplugged Access point cables back to the Switch ports, and it will sync up with the configurations from the factory reset Access Point.

Please let me know how that goes.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!!!

I trust this message finds you well.

I kindly request an update on the status of the issue so that we may proceed further with resolving it.

Thank you.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!!!

I trust this message finds you well.

I kindly request an update on the status of the issue so that we may proceed further with resolving it.

Thank you.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

mshrivas

Hi Imran,

I will give a try tomorrow and update it. Thanks

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!

Thank you for your response and the update.

Please keep me informed on your progress, and don’t hesitate to reach out if you encounter any issues or need assistance at any point during the process.

Thank you once again. We truly appreciate your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

mshrivas

Hi Imran,

After much effort, I'm able to reset one AP. From mobile unleashed app, the configuration didn't work as the firmware versions are not supported. I then used web from laptop to configure the AP and could successfully create wifi. However, I'm unable to update the firmware or use the dashboard from web. I have now connected the other two APs from switch.

mshrivas

Update: I don't know how but the webpage login worked. I can see 3 APs working, however, the switch is disconnected. I tried to connect using admin credentials but it didn't work. It says that the current firmware is not supported. Screenshot 2025-07-07 at 9.37.37 PM.png Screenshot 2025-07-07 at 9.36.24 PM.png

How to update the switch firmware?

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!

Thank you for your response and the update.

Let’s look into the switch disconnection issue once you upgrade the Unleashed System.
For now, may I kindly request you to proceed with upgrading your Unleashed system as outlined in my previous message?

Please feel free to let me know if you have any questions or need further clarification.

Thank you once again for your patience and cooperation.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

mshrivas

Hi Imran,

I have upgraded the firmware in all 3 APs. Now, please help me with the switch, which shows disconnected.

Thanks,

Screenshot 2025-07-08 at 10.15.02 PM.png

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!!!

Thank you for your recent correspondence and update.

We may need to check some configurations of your RUCKUS ICX-7150-C12P Switch to troubleshoot the Switch connectivity on the Unleashed.

To proceed with troubleshooting the issue, please follow the steps outlined below to access the Command Line Interface (CLI) and provide the necessary command outputs:

1. First, identify the current IP address assigned to the switch ICX-7150-C12P by your local router. You can use an IP scanner tool to easily locate the switch's IP address on your network. Here is a guide on how to perform this using IP Scanner free applications:

/kb/articles/10-how-to-find-the-ip-address-of-the-ruckus-devices-switch-and-aps-using-ip-scanner-free-applications

2. Once you have identified the IP address of the switch, proceed to access the Command Line Interface (CLI) of the RUCKUS ICX-7150-C12P switch. Here is a guide on how to access the CLI:

/kb/articles/8-how-to-access-the-command-line-interface-cli-of-the-ruckus-icx-7150-c12p-switch

If you can access the Command line the prompt should look like below:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

3. After successfully accessing the CLI, please execute the following commands and provide the outputs:

enable

show version

show flash

show inline power

show inline power detail

show interface brief

Please share the command outputs or screenshots if you encounter any issues or errors during these steps.

Feel free to reach out if you have any questions or require further assistance.

Thank you for your cooperation and patience.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

mshrivas

Hi Imran,

I found the IP address but unable to connect to it using ssh or nc from my macbook. Unfortunately, I don't have a windows m/c to work with.

ssh admin@192.168.1.xx (xx is actual number but I'm not showing here)

or, ssh super@192.168.1.xx

Unable to negotiate with 192.168.1.xx port 22: no matching key exchange method found. Their offer: diffie-hellman-group14-sha1,diffie-hellman-group1-sha1

I tried to create ssh key using:

mith@Mac ~ ssh-keygen -R 192.168.1.xx

Cannot stat /Users/mith/.ssh/known_hosts: No such file or directory

---

I also tried with telnet

nc 192.168.1.xx 23

here, there was no error but prompt didn't change, so it didn't work.

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!!!

Thank you for the response and the update.

The error message:

"Unable to negotiate with 192.168.1.xx port 22: no matching key exchange method found. Their offer: diffie-hellman-group14-sha1,diffie-hellman-group1-sha1"

means that your macOS SSH client does not accept the ssh-rsa key type by default anymore (due to security deprecation in newer versions of OpenSSH), but the server only offers ssh-rsa.

Fix Options

Option 1: Allow ssh-rsa temporarily via CLI

Add the command: -oHostKeyAlgorithms=+ssh-rsa option when connecting:

ssh -oHostKeyAlgorithms=+ssh-rsa admin@192.168.1.177

Replace ‘admin’ with your actual username.

Option 2: Allow ssh-rsa permanently for this host

Edit or create (if it doesn’t exist) your SSH config file:

nano ~/.ssh/config

Add the following block:

Host 192.168.1.177

HostKeyAlgorithms +ssh-rsa

PubkeyAcceptedAlgorithms +ssh-rsa

Save and exit (Ctrl + X, then Y, then Enter).

Try connecting again:

ssh admin@192.168.1.177

Why does this happen?

Newer versions of OpenSSH (8.8 and above) disable ssh-rsa by default due to its dependence on SHA-1, which is considered weak.

Let me know how it goes.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

mshrivas

Hi Imran,

I have tried both the steps but the error message is the same.

Unable to negotiate with 192.168.1.xx port 22: no matching key exchange method found. Their offer: diffie-hellman-group14-sha1, diffie-hellman-group1-sha1

Does resetting the switch help? If I reset switch, do I need APs configuration?

Thanks,

imran.sanadi@commscope.com

Hi @mshrivas

Thank you for your response and the update.

Could you please try accessing the Switch IP address through a web browser and attempting to log in to the Switch dashboard?

If the IP address is correct, you should see the Switch dashboard interface similar to the one shown in the screenshot below. This will help confirm that the IP address belongs to the Switch.

Please let me know how it goes.

Thank you again for your patience and cooperation.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

mshrivas

Hi Imran,

After the recent power outrage, I experienced slow wifi. I did reset on ICX switch. I could open the IP address assigned to the ICX, however, no login/password worked. I tried all the combinations from the default/commonly used credentials. In the unleased app, the ICX shows connecting but the ICX firmware is not supported. Can you please help me fix this? I have MAC laptop but not windows, so please suggest me steps accordingly.

Screenshot 2025-09-14 at 12.17.21 AM.png

Screenshot 2025-09-14 at 12.14.33 AM.png

imran.sanadi@commscope.com

Hi @mshrivas

Greetings!!!

Thank you for contacting the RUCKUS Lennar Home Community.

I hope this message finds you well.

This case has been closed. Kindly raise a new case or post with a detailed description of the issue so we can assist you further.

Thank you for your understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support
