Overview:
If you live in a Lennar Smart Home, your internet is typically managed by an ICX 7150-C12P Network Switch and/or RUCKUS Wi-Fi Access Points (WAPs). These devices control your home’s wired and wireless Internet Connections. To make changes or troubleshoot, you may need to access the admin interface of these devices using a username and password.
Customer Environment:
- Product(s): RUCKUS ICX-7150-C12P Switch and RUCKUS Unleashed Access Points.
- Software / Firmware Version: -NA-
- Other Conditions: -NA-
Where to Find Default Login Details?

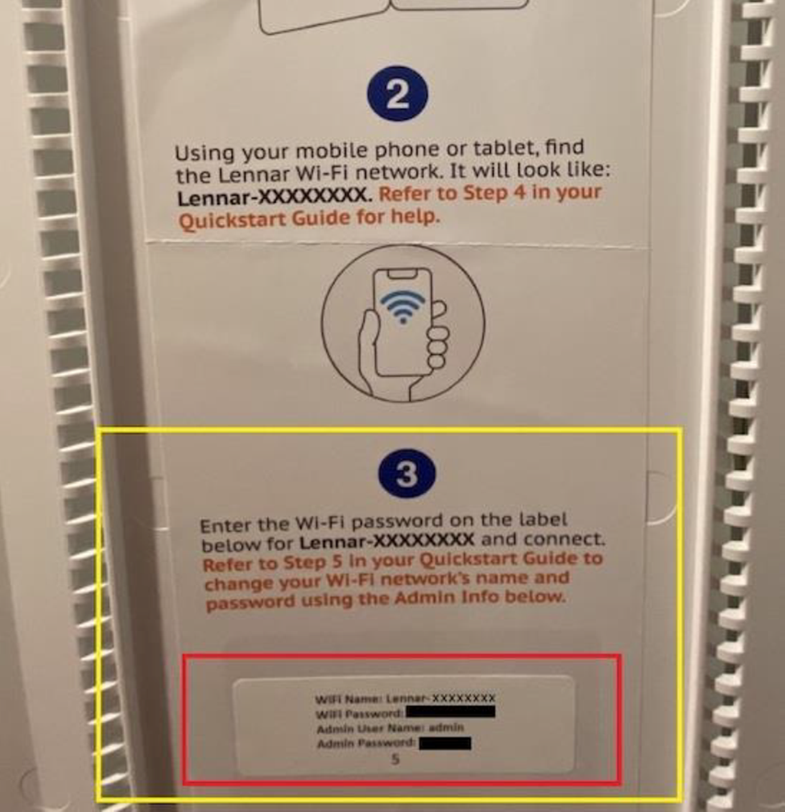

In most Lennar homes, the default Wi-Fi name (SSID) and admin password are printed on a sticker located inside your media panel or structured wiring cabinet, usually in the closet or utility area. (Figure 1)
Figure 1: RUCKUS Lennar login details
🔄 What if the Cabinet Login details Don't Work?
However, in some cases, the sticker may be missing, or the password might not work. Don’t worry, we’ve listed some of the most commonly used default login credentials below.
⚠️ Important: The usernames and passwords are case-sensitive, meaning you must use capital and lowercase letters exactly as shown.
Common Default Usernames and Passwords for RUCKUS ICX-7150-C12P Switch Dashboard Login. (Figure 2)

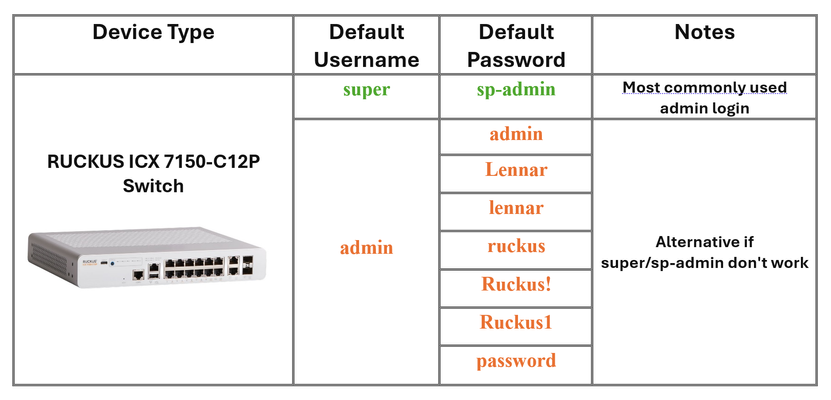

Figure 2: RUCKUS ICX-7150-C12P Switch default dashboard login details
Common Default Usernames and Passwords for RUCKUS Unleashed Access Points Dashboard Login. (Figure 3)

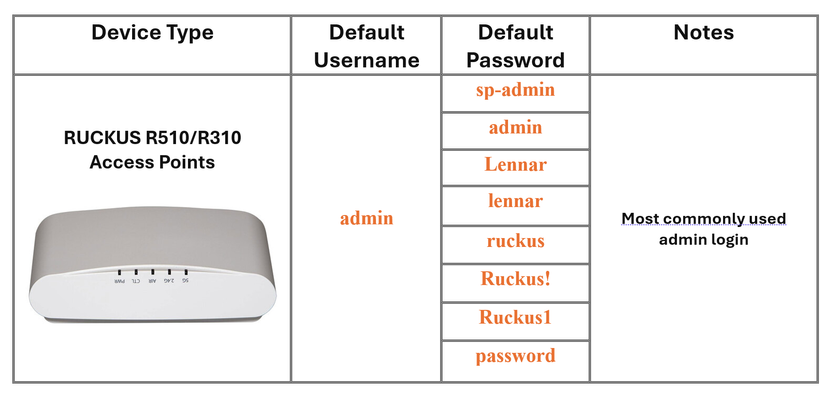

Figure 3: RUCKUS Unleashed Access Points default dashboard login details
💡 Tip: Try both username/password combinations if you're unsure which device you're accessing.
📌 Reminder: The credentials are case-sensitive. Type exactly as shown, including any capital letters.
⚠️ Important: If any of the provided usernames or passwords work, you may update or reset them as needed.
Please refer to the following instructional videos for guidance on resetting username/password for the devices:
🔄 What If the Password Don’t Work or Is Forgotten?
If the default credentials don’t work or the password has been changed and forgotten, you will need to reset your device to restore access.
🔁 Reset Instructions
This process will allow you to regain access and set a new Wi-Fi network name and password.
✅ Summary
- Use the default login info on the sticker in your media panel/closet.
- Try the most common credentials listed above if needed.
- Reset your device if credentials don’t work or are forgotten.
- Follow the linked video and guide to reconfigure your network.
Still stuck? Don’t worry it’s common. Resetting the device and using the setup wizard usually solves the issue quickly.
Still Need Help?
If you’re still experiencing issues or need help with any of the steps:
Visit the RUCKUS Lennar Home Support Community
Post your query or share a photo of your RUCKUS ICX-7150-C12P Switch and RUCKUS Access Points, our support team and community members are here to assist you.
Thank you for being part of the RUCKUS Lennar Home community. We're here to ensure your network stays connected and running smoothly.
