ICX 7150 could not boot from primary, no valid image

prap89

Hello,

After a power drop, noticed connections loses from WIFI. This was attributed to ruckus and tried to follow the instructions here.https://community.ruckuswireless.com/t5/RUCKUS-Support-for-Lennar-Homes/How-to-solve-the-routing-code-issue-in-your-ICX7150-Switch/m-p/47335#M1800

On running the command `“boot system flash primary yes”, primary partition never switched as it couldn't find the kernel image. Here are the logs I see when running the command -

NAND read: device 0 offset 0x0, size 0x2000000
5 ecc_errors after reading 18b8000:18b9800
iproc_nand_read_page returned 2
NAND read from offset 0 failed -22
0 bytes read: ERROR
## Loading kernel from FIT Image at 70000200 ...
Bad FIT kernel image format!
ERROR: can't get kernel image!
could not boot from primary, no valid image; trying to boot from secondary
device 0 offset 0x0, size 0xc0000
BOOTING image from Secondary

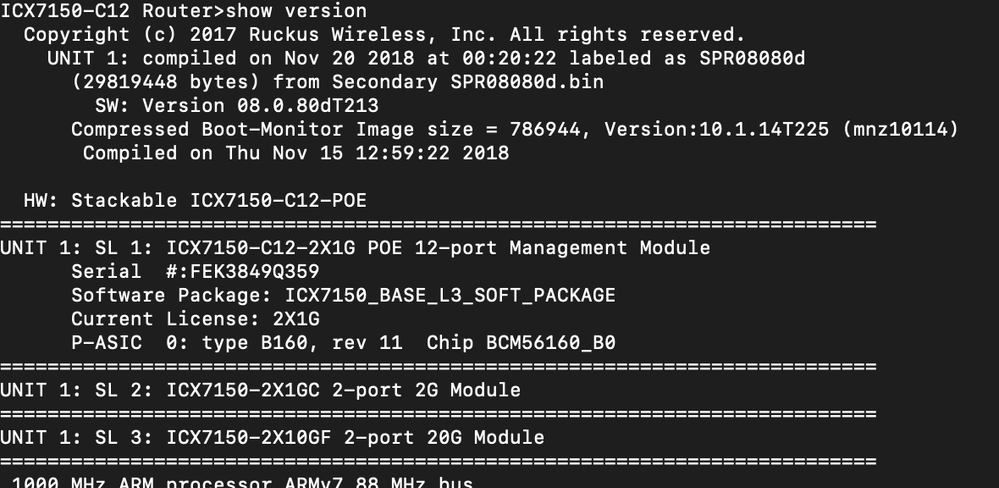

On running the `show version`, it is still on "Secondary SPR08080d".









how do I go about fixing the "primary" image and make a fix that doesn't need such fixes in future?



imran.sanadi@commscope.com

Hi @prap89

Greetings!!!

Thank you for contacting RUCKUS Lennar Home Community.

I hope you are doing well!!!

Thank you for the information you shared.

As per the case description, I understand that your RUCKUS setup is not working after a power outage.

As you mentioned and I see from the screenshot you shared, it is a Routing code issue due to a power outage.

Please refer to the below RUCKUS Lennar Knowledge Base self-help article to troubleshoot and fix this issue.

/kb/articles/2-fixing-ruckus-icx-7150-c12p-switch-routing-code-spr-issue-using-command-line-interface-cli

Please let me know if you have any queries in this regard.

Thank you again for your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.
