R760 not joining vsz

vinise

Hi,

I have a brand new vsz and my R760 ap are not showing up inside the vsz
when connecting them the vsz see them and upgrade them... after upgrade and reboot nothing's happening and they never listed in my vsz.

ZD-AP [C8:xx:xx:xx:xx:80] / [232202012398] model [R760] has been upgraded with Virtual SmartZone AP firmware version - [6.1.1.0.1274]
ZD-AP [C8:xx:xx:xx:xx:80] / [232202012398] model [R760] is upgrading with Virtual SmartZone AP firmware version - [6.1.1.0.1274]

I did try to manually set the scg ip and reboot ap, no result

I really don't see where the problem is.

Thanks

Find more posts tagged with

Accepted answers

vinise

The problem come from the power mode that doesn't detect the UPOE and stay in AT with not working functionalities

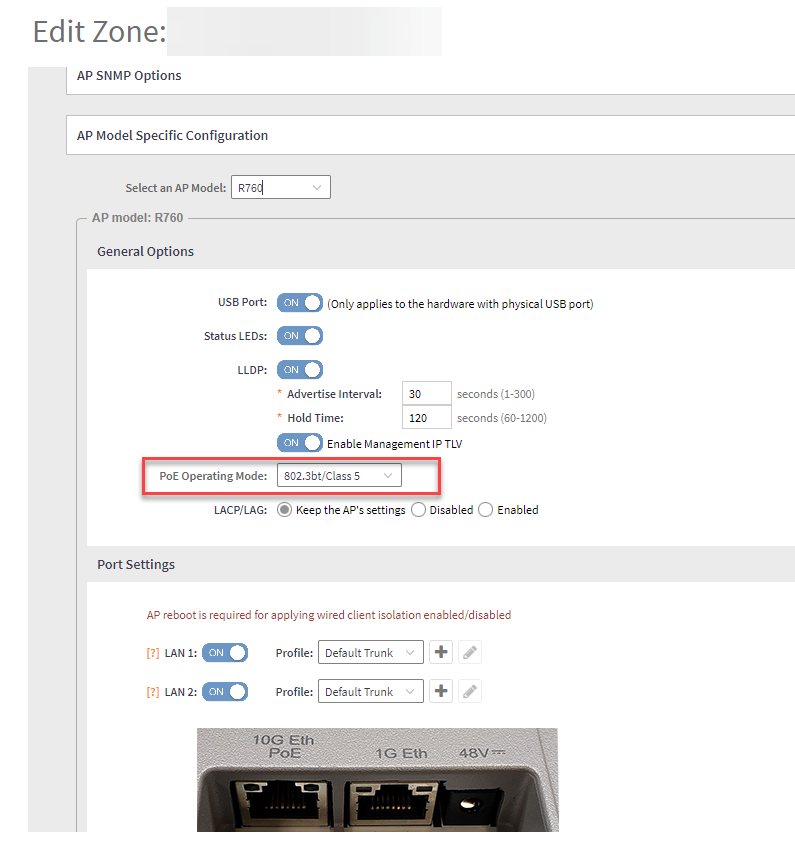

setting the power mode manually and setting additional config to the ap on the zone fix the problem :

set power-mode AT
or for UPOE : set power-mode bt5

Thanks all for your help, hope this will help others

All comments

vinise

here is the syslog : https://justpaste.it/3xktb

i checked also the certificat that seems in order

rkscli: get rpki-cert issuer
Issuer: RuckusPKI-DeviceSubCA-2
OK
rkscli: get rpki-cert validity
Validity: notBefore=May 21 10:18:11 2022 GMT
notAfter=May 22 10:18:11 2047 GMT

OK
rkscli:

sanjay_kumar

Hi @vinise

Looks like the AP is unable to initiate the SSH tunnel.
Could you please share the AP support file (You can download from GUI) so that I can review it?
You can also get it from AP CLI using below command:
#support
#support show

vinise

Spoiler

Usage: get qmdpi-stats

Error: system call error
nodestats: Could not get nodelist for device wifi0
nodestats: Could not get nodelist for device wifi1
nodestats: Could not get nodelist for device wifi2
Send nlmsg failed
Couldn't send NL command
radartool: wifi1: Success
Send nlmsg failed
Couldn't send NL command
radartool: wifi2: Success
sysctl: error: '.proc.sys.net.rksgre' is an unknown key
cat: can't open '/tmp/lighttpd.conf': No such file or directory
Failed to connect to server - wpa_ctrl_open: No such file or directory
Failed to connect to server - wpa_ctrl_open: No such file or directory
Failed to connect to server - wpa_ctrl_open: No such file or directory
Failed to connect to server - wpa_ctrl_open: No such file or directory
Failed to connect to server - wpa_ctrl_open: No such file or directory
cat: can't open '/tmp/aclb/clb.j': No such file or directory
Gateway Mode : Mode Not Set.
Failed to connect to non-global ctrl_ifname: (nil) error: No such file or directory
OK
rkscli:

rkscli: supportmsgget(52465700) failed, errno=2msgget: No such file or directoryautoFW status: msgQ_send: No such file or directory[ccm_priv_verify_k_file] [ccm_priv_verify_k_file]: No such file or directory[ccm_conf_get] There is no cached data now.Failed to get avc flow table block -1, errno 2ERROR: Process is not running..!!Error: system call errorERROR: Process is not running..!!Error: system call errorERROR: Process is not running..!!Error: system call errorUsage: get qmdpi-versionUsage: get qmdpi-statsError: system call errornodestats: Could not get nodelist for device wifi0nodestats: Could not get nodelist for device wifi1nodestats: Could not get nodelist for device wifi2Send nlmsg failedCouldn't send NL commandradartool: wifi1: SuccessSend nlmsg failedCouldn't send NL commandradartool: wifi2: Successsysctl: error: '.proc.sys.net.rksgre' is an unknown keycat: can't open '/tmp/lighttpd.conf': No such file or directoryFailed to connect to server - wpa_ctrl_open: No such file or directoryFailed to connect to server - wpa_ctrl_open: No such file or directoryFailed to connect to server - wpa_ctrl_open: No such file or directoryFailed to connect to server - wpa_ctrl_open: No such file or directoryFailed to connect to server - wpa_ctrl_open: No such file or directorycat: can't open '/tmp/aclb/clb.j': No such file or directoryGateway Mode : Mode Not Set.Failed to connect to non-global ctrl_ifname: (nil) error: No such file or directoryOKrkscli:

Spoiler

### Himem Ring Buffer 2 ###
###

### STA Journal for Load Balancing, /tmp/aclb/clb.j ###
###
###

### SPoT Data ###

### SPoT State on wifi0 ###
LBS mode:
LBS Disabled on wifi0 OK

### SPoT State on wifi1 ###
LBS mode:
LBS Disabled on wifi1 OK

### SPoT State on wifi2 ###
LBS mode:
LBS Disabled on wifi2 OK

### SPoT Server Config ###
State: Disabled
URL:
port: 8883
Venue:

### Ping SPOT Server ###

### DNS Details ###
Allow DNS from DHCP: Enabled
Ethernet DNS servers:
DNS 1 : 10.10.10.1

IPv6 DNS Setting

DNS Domain
devtactik.event

DNS Search List
<None>
OK

### SPoT Crash Dump ###

### DHCP-NAT Details ###

----------- Subnet Info -----------
Local Subnet 1 settings:
Status : disabled
Access Vlan : 1
Local IP Address : 192.168.40.1
Subnet Mask : 255.255.255.0
DHCP Server Status : disabled

Local Subnet 2 settings:
Status : disabled
Access Vlan : 1
Local IP Address : 0.0.0.0
Subnet Mask : 255.255.255.0
DHCP Server Status : disabled

Local Subnet 3 settings:
Status : disabled
Access Vlan : 1
Local IP Address : 0.0.0.0
Subnet Mask : 255.255.255.0
DHCP Server Status : disabled

Local Subnet 4 settings:
Status : disabled
Access Vlan : 1
Local IP Address : 0.0.0.0
Subnet Mask : 255.255.255.0
DHCP Server Status : disabled

----------- DHCP Client Lease Info -----------
DHCP server: Disabled
OK

----------- AP Mode -----------
NAT mode : Non Gateway AP
DHCPS mode : Not configured as Primary/Secondary server or
Interface not configured
DHCPS service : NOT Running
gapd : NOT Running
scpd : NOT Running
Interface : Name Forwarding
-----------------------
eth0 WAN
eth1 WAN
OK

----------- DWPD Info -----------
WAN detection mode : NONE
OK

WAN detection mode : NONE
WPD target IP : Not Available
WAN interface detected : Fail to detect WAN interface
OK

wpd ping retry count : 3
OK

### COLLECTD Details ###

----------- collectd Info -----------
Service enabled
------------------------------------------
Config
ReadThreads 1
WriteThreads 1
ListenThreads 1
AggregateThreads 1
Interval Backoff Factor 1
RoutineMI 90
RoutineAI 90
RoutineRI 90
RoutineApCertRI 1800
RoutineApMeshInterval 900
RoutineApPerfInterval 60
RoutineStatsSysInfoInterval 10
pingAction enabled
RoutineType 2943
RoutineCollect 1024
SyslogLevel 3
CompressReport disabled
------------------------------------------
wifi0 KPI Latency enabled
Latency Threshold 80000
Latency Sensitivity 3
wifi0 KPI Capacity disabled
Capacity Threshold 54
Capacity Sensitivity 3
wifi0 KPI ConnFailRate enabled
ConnFailRate Threshold 30
ConnFailRate Sensitivity 3
ConnFail Client Toleration 5
wifi0 KPI AirUtilization enabled
AirUtilization Threshold 70
AirUtilization Sensitivity 3
wifi1 KPI Latency enabled
Latency Threshold 50000
Latency Sensitivity 3
wifi1 KPI Capacity disabled
Capacity Threshold 35
Capacity Sensitivity 3
wifi1 KPI ConnFailRate enabled
ConnFailRate Threshold 25
ConnFailRate Sensitivity 3
ConnFail Client Toleration 5
wifi1 KPI AirUtilization enabled
AirUtilization Threshold 50
AirUtilization Sensitivity 3
wifi2 KPI Latency enabled
Latency Threshold 50000
Latency Sensitivity 3
wifi2 KPI Capacity disabled
Capacity Threshold 35
Capacity Sensitivity 3
wifi2 KPI ConnFailRate enabled
ConnFailRate Threshold 25
ConnFailRate Sensitivity 3
ConnFail Client Toleration 5
wifi2 KPI AirUtilization enabled
AirUtilization Threshold 50
AirUtilization Sensitivity 3
KPI totalConnClinet enabled
totalConnClinet Threshold 100
totalConnClinet Sensitivity 3
------------------------------------------
MLISA streaming status disabled
MLISA streaming subscriber mlisa
MLISA streaming statsType 1
MLISA streaming report interval 60
MLISA streaming destination module 10
------------------------------------------
Plugin
pluginRadio enabled
pluginVap enabled
pluginClient enabled
pluginMesh enabled
pluginAVC enabled
pluginRogue enabled
pluginPeerlist enabled
pluginApCert enabled
pluginWiredClient enabled
pluginPerf enabled
pluginApSysInfo enabled
------------------------------------------
OK

----------- collectd Healthy Ping -----------
Unable to Connect Collectd, retry 1 time
Unable to Connect Collectd, retry 2 time
Unable to Connect Collectd, retry 3 time
Exceed Max Retry to Connect Collectd, Abort Execution.

----------- collectd Subscriptions -----------
Unable to Connect Collectd, retry 1 time
Unable to Connect Collectd, retry 2 time
Unable to Connect Collectd, retry 3 time
Exceed Max Retry to Connect Collectd, Abort Execution.

----------- collectd Clients -----------
Unable to Connect Collectd, retry 1 time
Unable to Connect Collectd, retry 2 time
Unable to Connect Collectd, retry 3 time
Exceed Max Retry to Connect Collectd, Abort Execution.

### User Role ###

### Role-based WLAN Permission ###

### Role-based Time Schedule ###

### VLAN-NAME ###

### Zero Touch Mesh Info ###
###

### Scan Results for ZTM APs ###

### XWF Info ###

### Himem Ring Buffer 1 ###3phy0 rdev:d1eae000:d1eae0903phy1 rdev:cd718000:cd7180903phy2 rdev:cce27000:cce270903phy0 rdev:cfb84000:cfb840903phy1 rdev:cfb86000:cfb860903phy2 rdev:ccfcb800:ccfcb8903phy0 rdev:d1edf000:d1edf0903phy1 rdev:cd6e9000:cd6e90903phy2 rdev:cba90000:cba900903phy0 rdev:d1de7000:d1de70903phy1 rdev:cd689000:cd6890903phy2 rdev:cd68f000:cd68f0903phy0 rdev:d002f000:d002f0903phy1 rdev:cd731000:cd7310903phy2 rdev:cd737000:cd737090###### Himem Ring Buffer 2 ######### STA Journal for Load Balancing, /tmp/aclb/clb.j ############ SPoT Data ###### SPoT State on wifi0 ###LBS mode:LBS Disabled on wifi0 OK### SPoT State on wifi1 ###LBS mode:LBS Disabled on wifi1 OK### SPoT State on wifi2 ###LBS mode:LBS Disabled on wifi2 OK### SPoT Server Config ###State: DisabledURL:port: 8883Venue:### Ping SPOT Server ###### DNS Details ###Allow DNS from DHCP: EnabledEthernet DNS servers:DNS 1 : 10.10.10.1IPv6 DNS SettingDNS Domaindevtactik.eventDNS Search List<None>OK### SPoT Crash Dump ###### DHCP-NAT Details ###----------- Subnet Info -----------Local Subnet 1 settings:Status : disabledAccess Vlan : 1Local IP Address : 192.168.40.1Subnet Mask : 255.255.255.0DHCP Server Status : disabledLocal Subnet 2 settings:Status : disabledAccess Vlan : 1Local IP Address : 0.0.0.0Subnet Mask : 255.255.255.0DHCP Server Status : disabledLocal Subnet 3 settings:Status : disabledAccess Vlan : 1Local IP Address : 0.0.0.0Subnet Mask : 255.255.255.0DHCP Server Status : disabledLocal Subnet 4 settings:Status : disabledAccess Vlan : 1Local IP Address : 0.0.0.0Subnet Mask : 255.255.255.0DHCP Server Status : disabledOK----------- DHCP Client Lease Info -----------DHCP server: DisabledOK----------- AP Mode -----------NAT mode : Non Gateway APDHCPS mode : Not configured as Primary/Secondary server orInterface not configuredDHCPS service : NOT Runninggapd : NOT Runningscpd : NOT RunningInterface : Name Forwarding-----------------------eth0 WANeth1 WANOK----------- DWPD Info -----------WAN detection mode : NONEOKWAN detection mode : NONEWPD target IP : Not AvailableWAN interface detected : Fail to detect WAN interfaceOKwpd ping retry count : 3OK### COLLECTD Details ###----------- collectd Info -----------Service enabled------------------------------------------ConfigReadThreads 1WriteThreads 1ListenThreads 1AggregateThreads 1Interval Backoff Factor 1RoutineMI 90RoutineAI 90RoutineRI 90RoutineApCertRI 1800RoutineApMeshInterval 900RoutineApPerfInterval 60RoutineStatsSysInfoInterval 10pingAction enabledRoutineType 2943RoutineCollect 1024SyslogLevel 3CompressReport disabled------------------------------------------wifi0 KPI Latency enabledLatency Threshold 80000Latency Sensitivity 3wifi0 KPI Capacity disabledCapacity Threshold 54Capacity Sensitivity 3wifi0 KPI ConnFailRate enabledConnFailRate Threshold 30ConnFailRate Sensitivity 3ConnFail Client Toleration 5wifi0 KPI AirUtilization enabledAirUtilization Threshold 70AirUtilization Sensitivity 3wifi1 KPI Latency enabledLatency Threshold 50000Latency Sensitivity 3wifi1 KPI Capacity disabledCapacity Threshold 35Capacity Sensitivity 3wifi1 KPI ConnFailRate enabledConnFailRate Threshold 25ConnFailRate Sensitivity 3ConnFail Client Toleration 5wifi1 KPI AirUtilization enabledAirUtilization Threshold 50AirUtilization Sensitivity 3wifi2 KPI Latency enabledLatency Threshold 50000Latency Sensitivity 3wifi2 KPI Capacity disabledCapacity Threshold 35Capacity Sensitivity 3wifi2 KPI ConnFailRate enabledConnFailRate Threshold 25ConnFailRate Sensitivity 3ConnFail Client Toleration 5wifi2 KPI AirUtilization enabledAirUtilization Threshold 50AirUtilization Sensitivity 3KPI totalConnClinet enabledtotalConnClinet Threshold 100totalConnClinet Sensitivity 3------------------------------------------MLISA streaming status disabledMLISA streaming subscriber mlisaMLISA streaming statsType 1MLISA streaming report interval 60MLISA streaming destination module 10------------------------------------------PluginpluginRadio enabledpluginVap enabledpluginClient enabledpluginMesh enabledpluginAVC enabledpluginRogue enabledpluginPeerlist enabledpluginApCert enabledpluginWiredClient enabledpluginPerf enabledpluginApSysInfo enabled------------------------------------------OK----------- collectd Healthy Ping -----------Unable to Connect Collectd, retry 1 timeUnable to Connect Collectd, retry 2 timeUnable to Connect Collectd, retry 3 timeExceed Max Retry to Connect Collectd, Abort Execution.----------- collectd Subscriptions -----------Unable to Connect Collectd, retry 1 timeUnable to Connect Collectd, retry 2 timeUnable to Connect Collectd, retry 3 timeExceed Max Retry to Connect Collectd, Abort Execution.----------- collectd Clients -----------Unable to Connect Collectd, retry 1 timeUnable to Connect Collectd, retry 2 timeUnable to Connect Collectd, retry 3 timeExceed Max Retry to Connect Collectd, Abort Execution.### User Role ###### Role-based WLAN Permission ###### Role-based Time Schedule ###### VLAN-NAME ###### Zero Touch Mesh Info ######### Scan Results for ZTM APs ###### XWF Info ###

is this enoug?
since the ap has ben provision and updated the webgui is not accessible anymore.
is there a way to put it back ?

Thanks
